[CATIA] Lattice Designer

AB

Functional Value

Unleash your creativity with lattice structure design driven by algorithmic generation of structural network. A network of bars published as a feature by the CATIA Visual Script Designer role can be reused as input of the CATIA Lattice Designer role, to produce the geometry, down to simulation and manufacturing preparation.

I

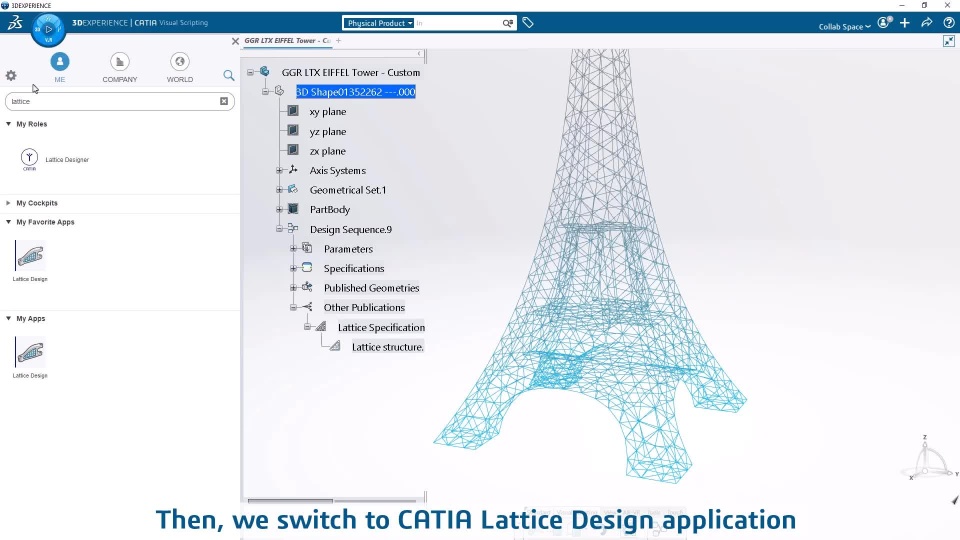

Video that shows the integration between the CATIA Lattice Design app and the CATIA Visual Scripting app.

I

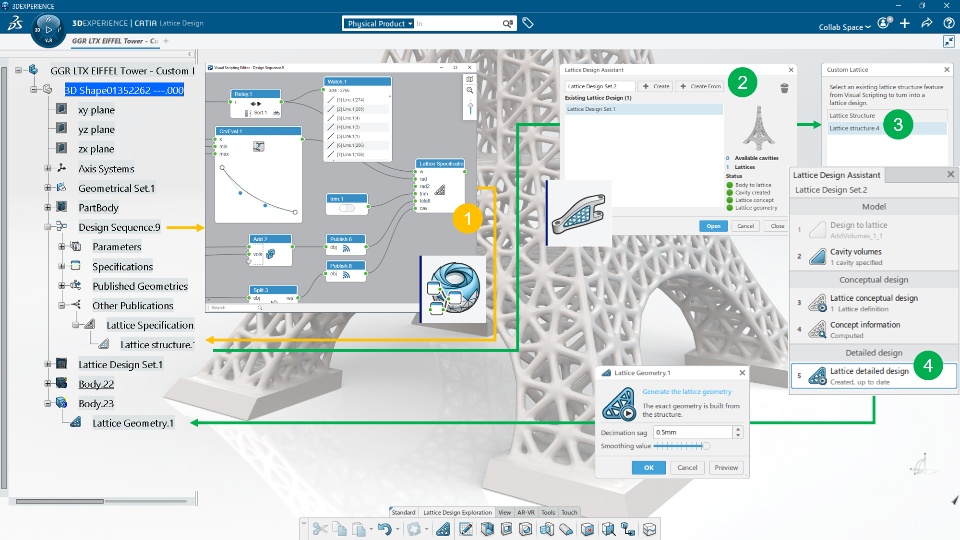

Description of the overall workflow. The Lattice Specification operator produces a Lattice Structure feature in a Design Sequence (Bullet 1). The Lattice Structure feature is then reused to automatically initialized the design with the Lattice Design assistant of the Lattice Design app. (Bullets 2 and 3). The geometry of the design is then produced with the Lattice detailed design step of the assistant (Bullet 3)

I

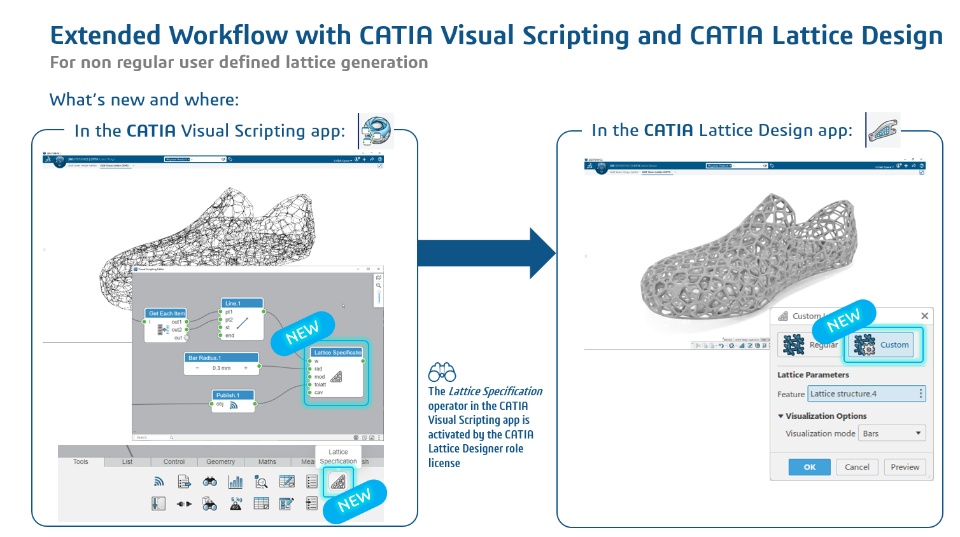

Illustration of the new features in the CATIA Visual Scripting app (Left) and in the CATIA Lattice Design app (Right)

I

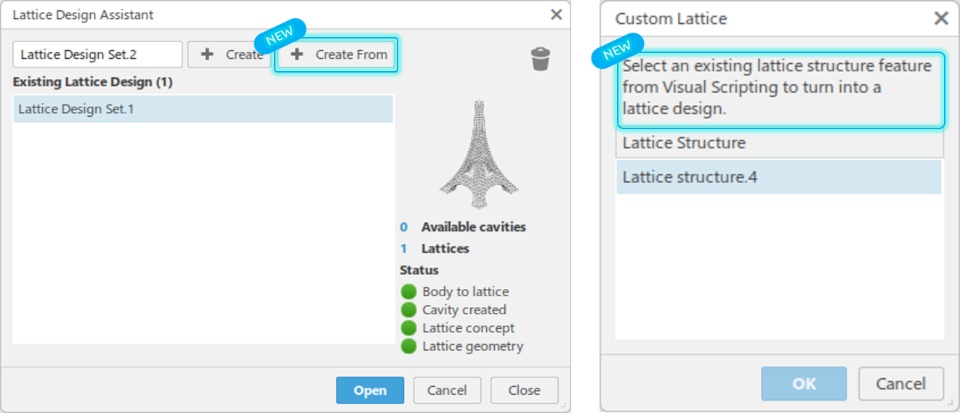

What's new in the CATIA Lattice Design app: the Lattice Design assistant enables the automatic initialization of the lattice design from a Lattice Structure feature thanks to a new "Create From" option.

I

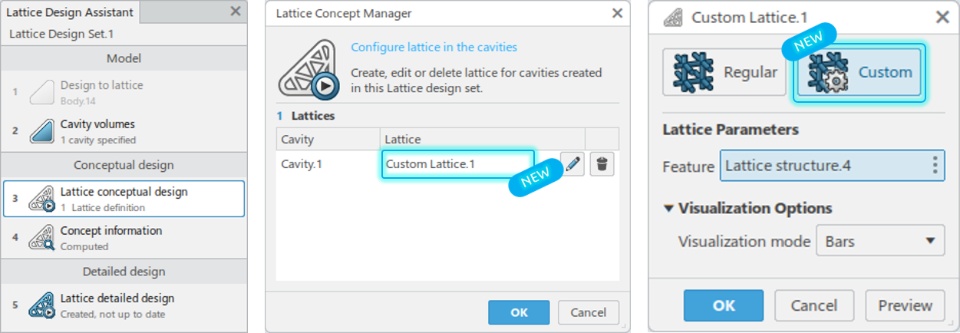

What's new in the CATIA Lattice Design app: the lattice definition is enhanced with a "Custom option" that enables the usage of a Lattice Structure feature produced by the CATIA Visual Scripting app.
