[CATIA] Function Driven Generative Designer

AB

Functional Value


1. Generate lightweight and performant industrial rib pattern with variable heights.
2. Generate a reliable parting surface for autodraw casting manufacturing constraints, boosting the associated molding creation strategy
3. Generate the most relevant profiles for prismatic-driven generative design

User Experience Value


Produce manufacturing-ready detailed generative design, thanks to a dedicated completion assistant for milling, extrusion, casting and ribs

I

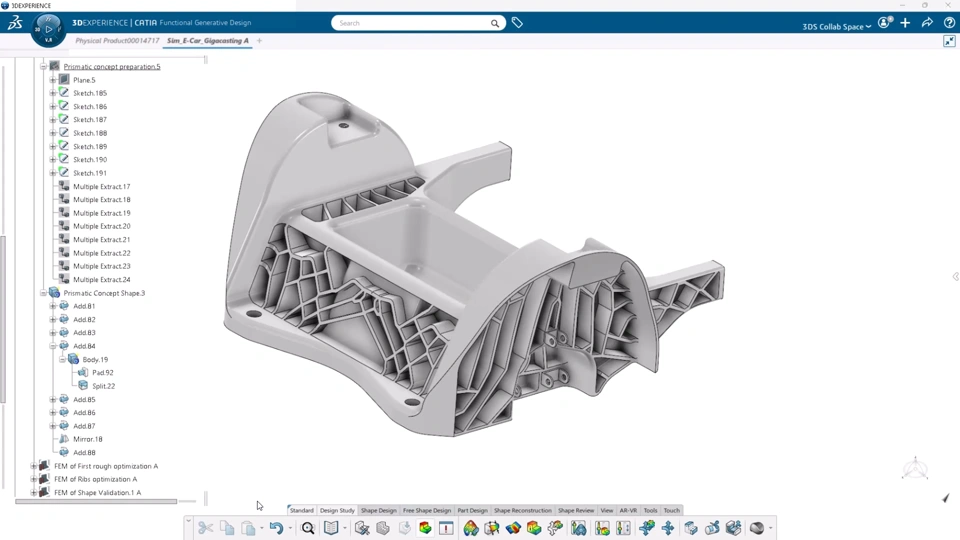

Thin Pad based prismatic reconstruction for topology optimization run with ribs manufacturing controls

I

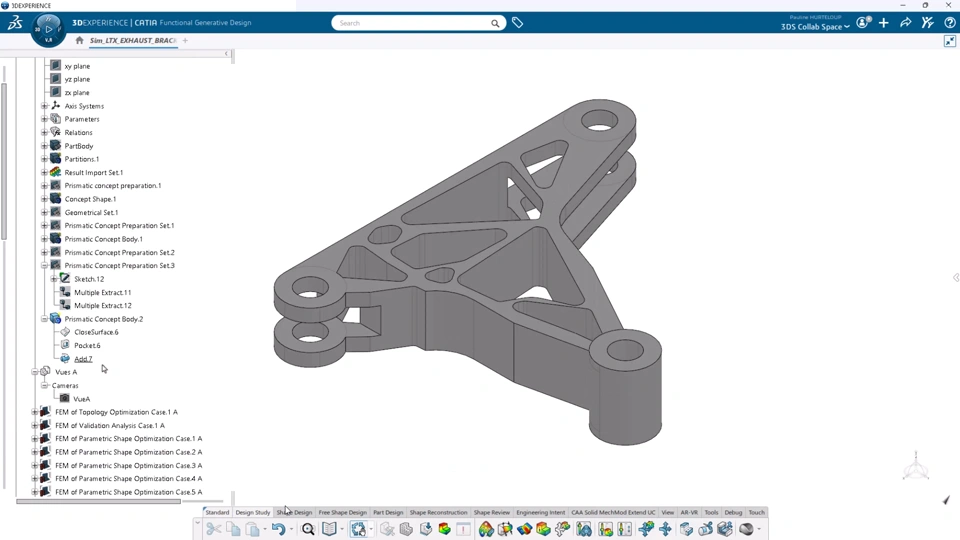

Pocket based prismatic reconstruction for topology optimization run with milling, extrusion or ribs manufacturing controls

I

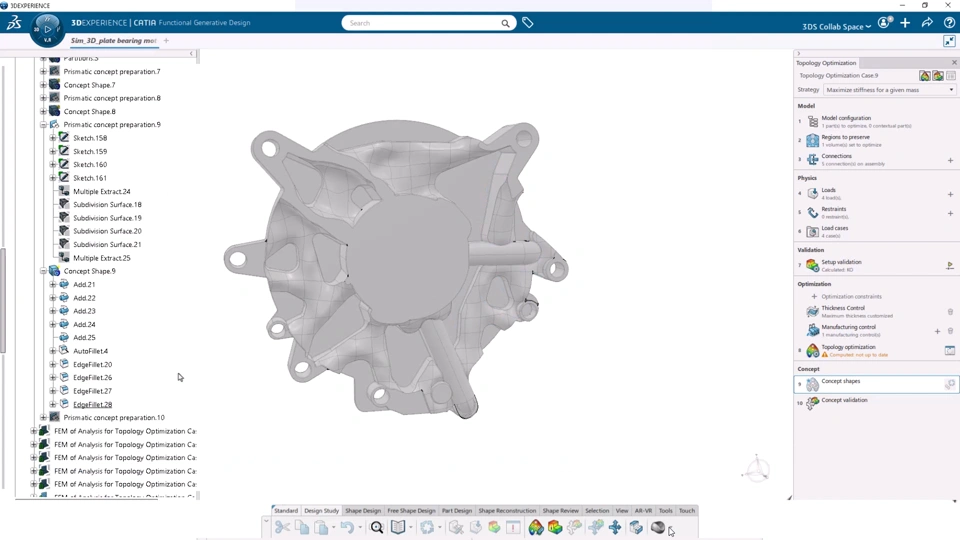

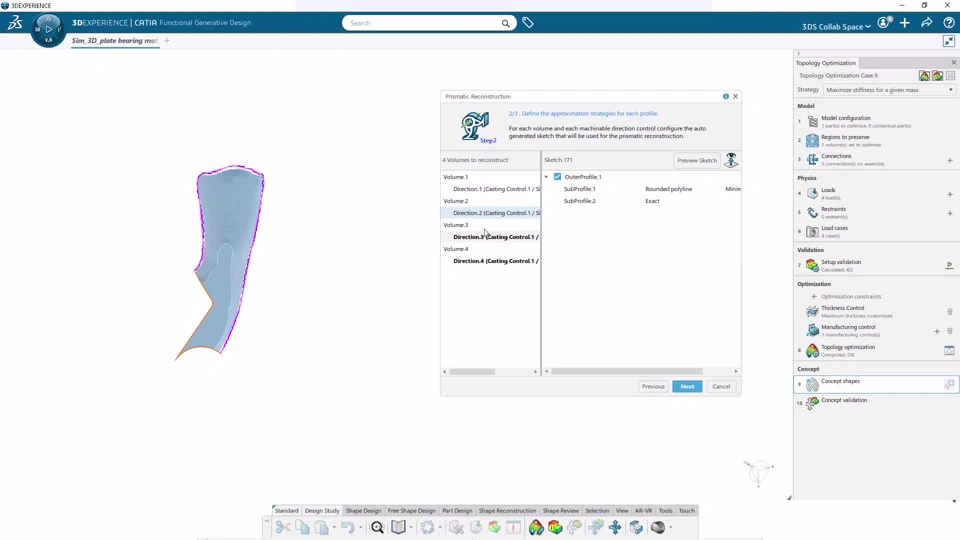

Prismatic reconstruction for topology optimization run with single draw casting manufacturing control

I
Thin Pad based prismatic reconstruction for topology optimization run with ribs manufacturing controls
