[CATIA] Fluid 3D Systems Designer

Functional Value

Define and manage standard tubing hose assembly. It allows to manage an assembly of flexible route and piping parts like an unique part number and allow the modification of the shape after the definition

I
What’s new R21x FD04 for 3D Fluid roles

I

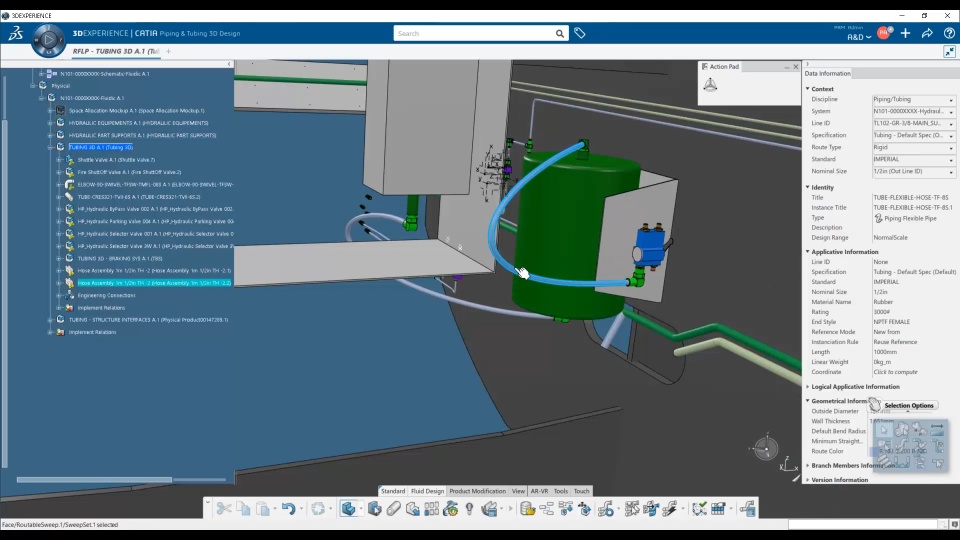

Define a standard hose assembly including fittings

I

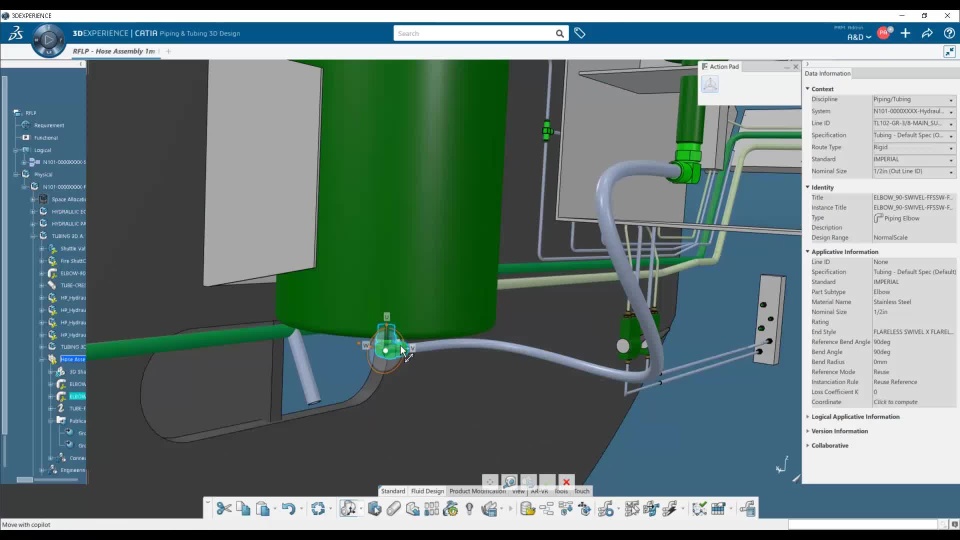

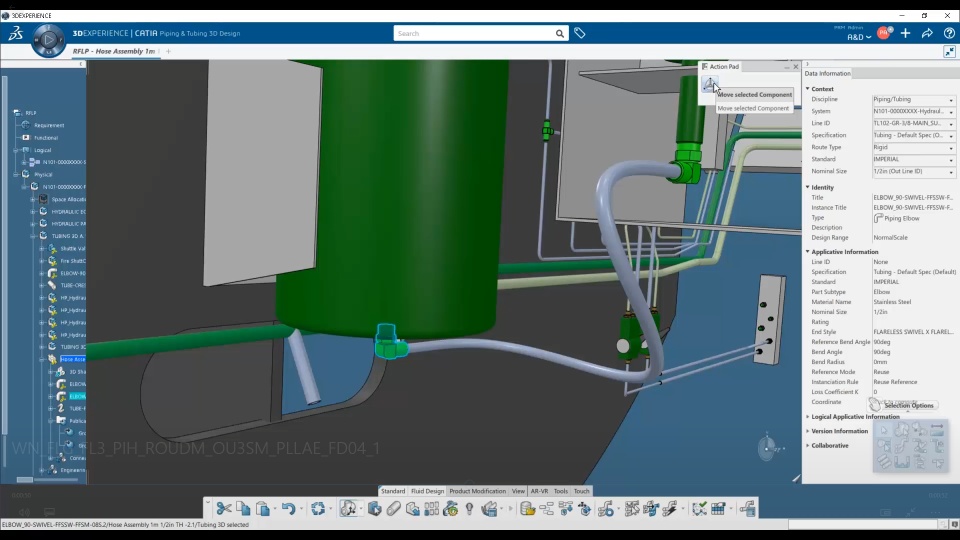

Place the assembly and adjust fittings orientation

I
Instantiate the standard hose assembly multiple times with different position and shape
