[CATIA] Electrical Manufacturing Engineer

Functional Value

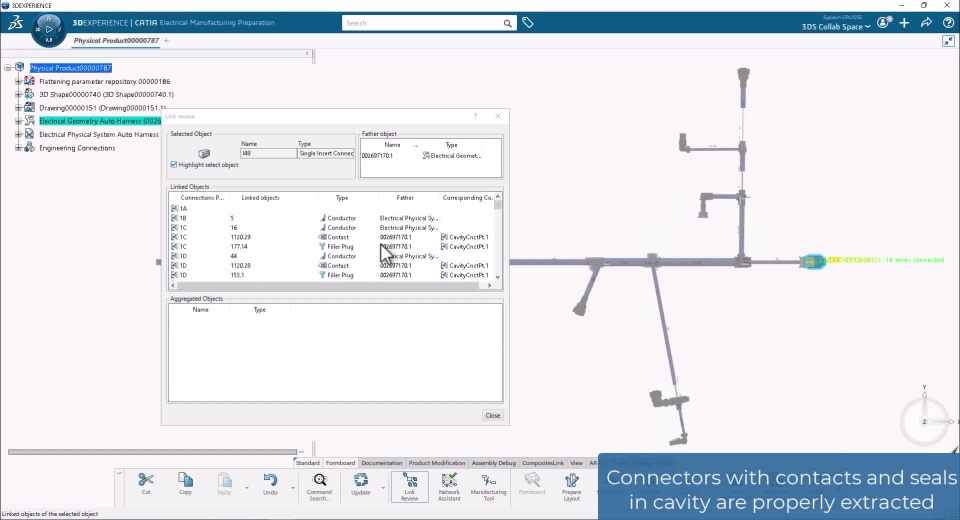

1. Electrical harness completeness and full Digital Continuity from electrical 3D to harness documentation:

Two new patterns are now handled:

- Multiple components linked to a single connector cavity

- Backshell to backshell assembly pattern

2. Industrial maturity of harness drawings:

Various improvements to speed up the finalization of harness drawings:

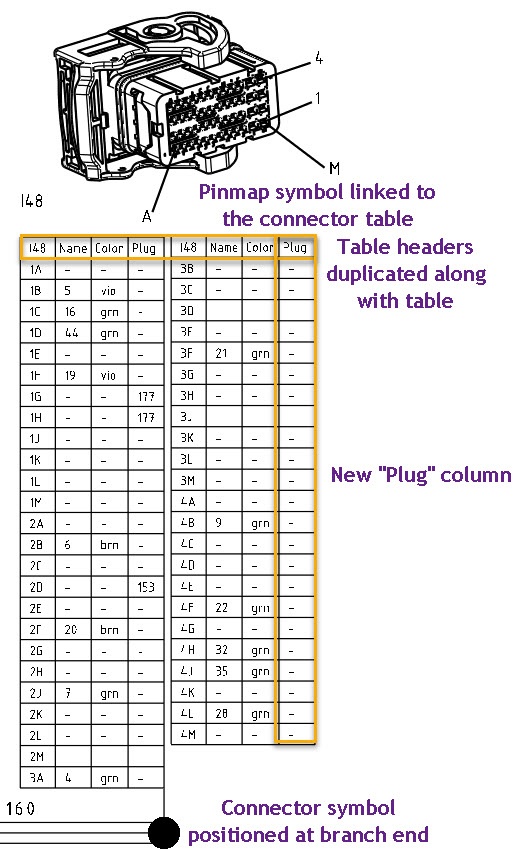

- Connector information improvements:

- New column for plugs inserted into empty cavities

- Pinmap symbol now linked to the table

- Connector symbol can now be positioned at the branch end even if its real position is far

- All drawing items with blank background by default

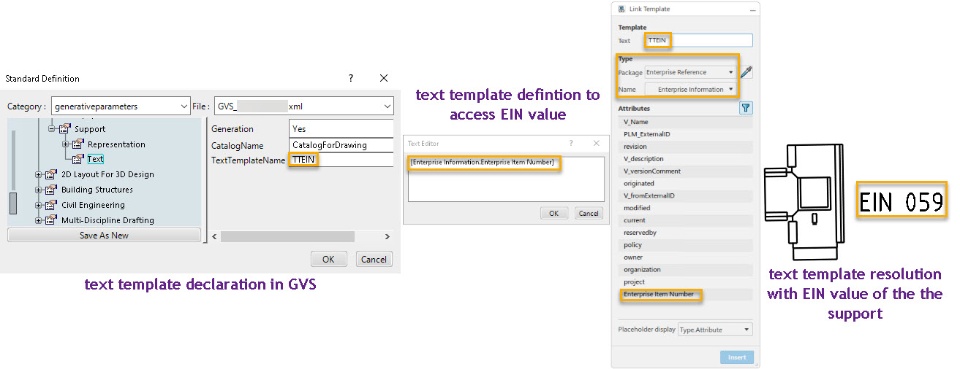

- Display EIN number of a support

- Instantiated symbols keep their original reference size

- Table report headers can be duplicated

- and more

User Experience Value

Improved User Experience since generated dimensions are made by default visible to facilitate the straight forward readability of 3DMaster annotations

I
What's new video

I
Various Drawing Enhancements

I
Enterprise Item Number Integration
