[CATIA] Electrical 3D & Manufacturing Engineer

AB

Functional Value

1. SPACE MANAGEMENT ON MANUFACTURING DRAWINGS

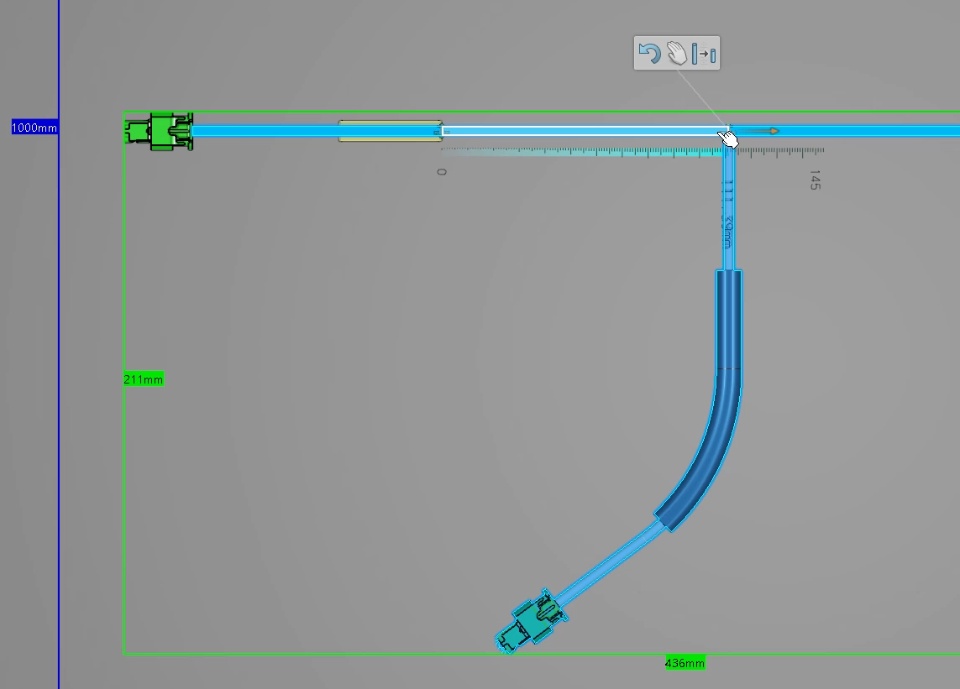

Optimizing harness drawings readability and facilitate their understanding, by offering extended scaling capabilities to user on flattened harness layout. Customer can ensure the fitting of the layout into the drawing sheet frame, by scaling freely any segment/branch.

2. HARNESS DIMENSIONING

Improving drawing consistency & saving preparation time by providing

- Impact management capabilities on dimensions during the synchronization process after 3D modifications,

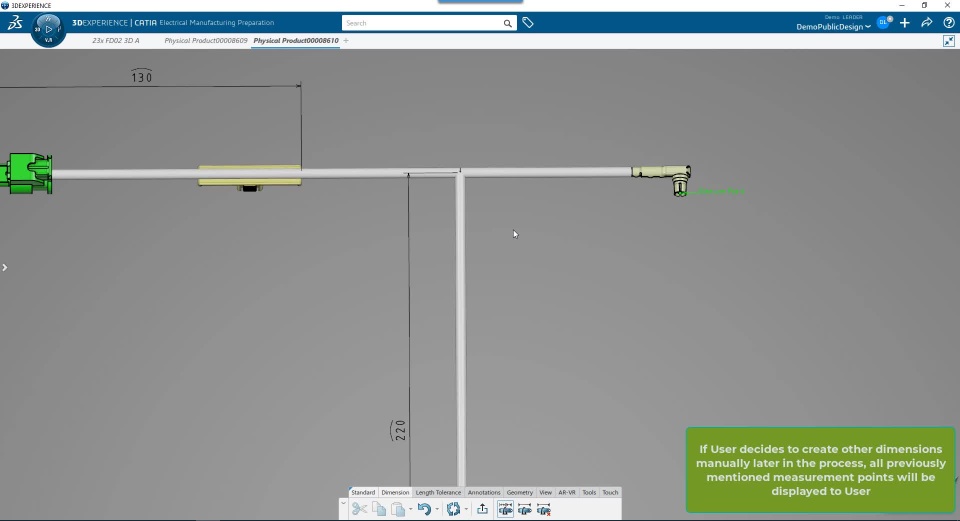

- More options to customize connectors dimensioning and take into account the extra branch length value within connectors.

I
What's new video electrical harness manufacturing

I
Connectors dimensioning customization to get the extra branch length value

I

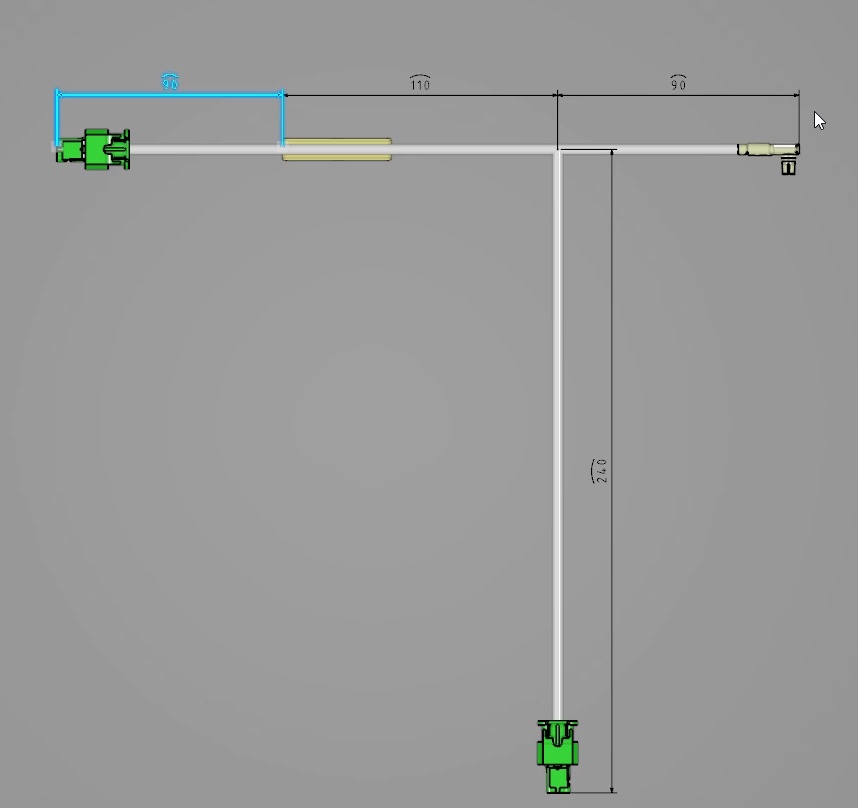

Update of dimensions on the harness flattening through synchronization process after a 3D change

I

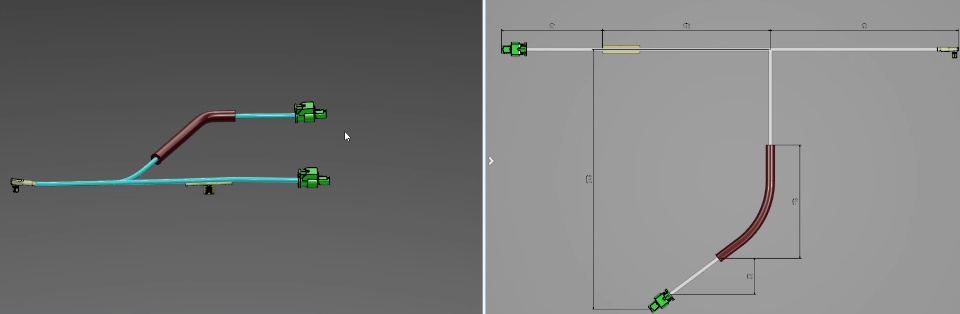

Extended scaling capabilities on the harness flattening for space management on drawings
