[CATIA] Electrical 3D & Manufacturing Engineer

Functional Value


1. Manage electrical accessories in the downstream electrical process (formboard, documentation, synchronization).
Visibility of accessories in the bill of material will give even more consistency of the electrical harness modelization.
2. Various enhancements in electrical harness drawings:

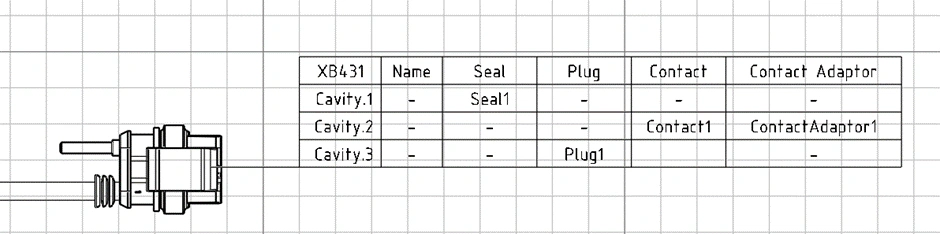

- Connector table :
- New extra symbols can be defined in relation with a new business rule
- backshell information can now be added as text as well as electrical accessories

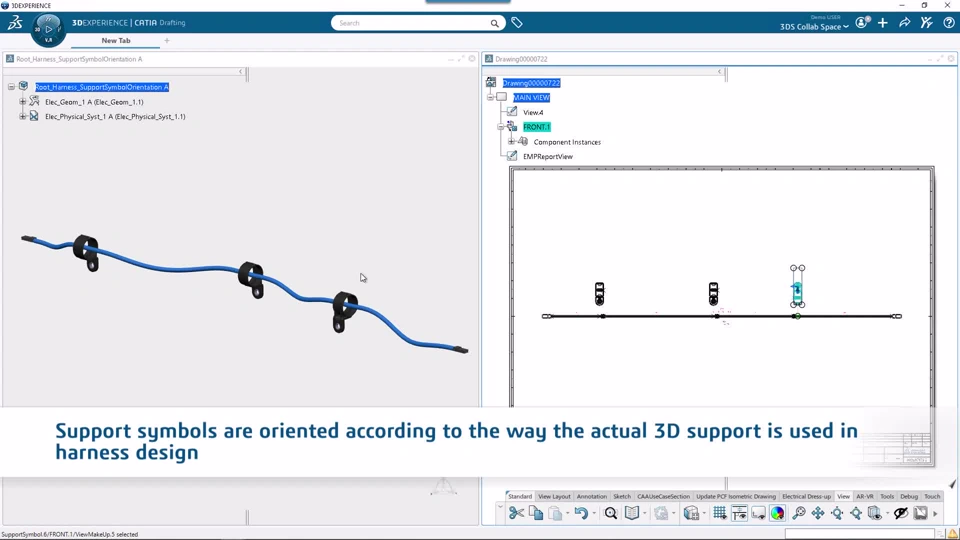

- Support symbol orientation management: support symbol can be now much more precisely oriented for a better quality documentationt: support symbol can be now much more precisely oriented for a better quality documentation

New management for support orientation in fattened harnesses

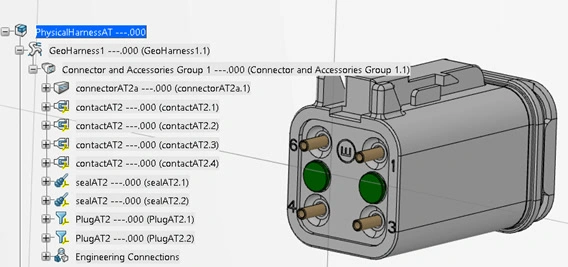

Seals and plugs inserted in components.



Accessories included in connector tables for the manufacturing drawings
