[CATIA] Design Studio Engineer

Functional Value

Free Style & Mechanical Shape Refinement applications get enriched with new Rip/match options to get an optimized ribbon for Styling Fillet. Also many improvements on analysis, such as Curvature analysis along a direction to align with latest Formula 1 regulations

I

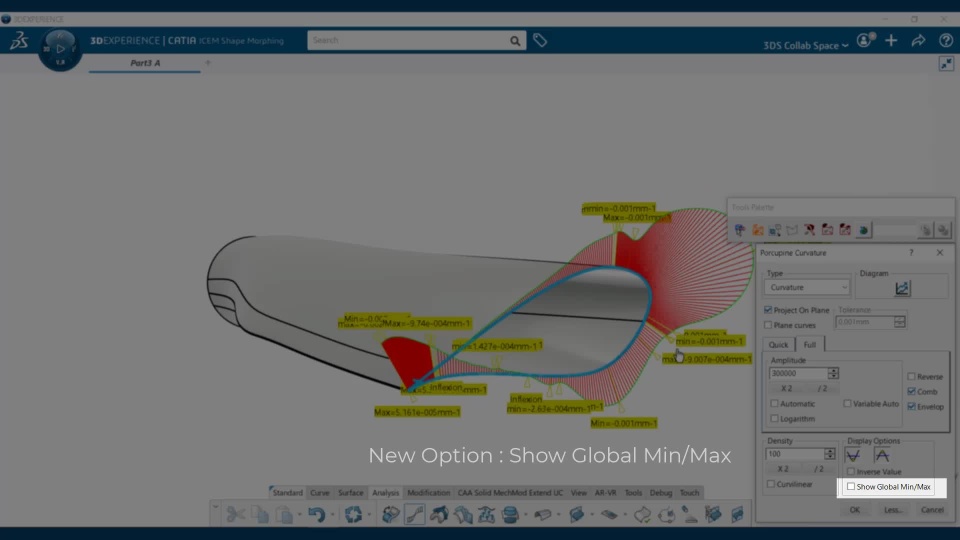

Porcupine Analysis – Absolute extrema: filter Porcupine analysis Min/max information display to remove local extrema and reveal absolute ones

I

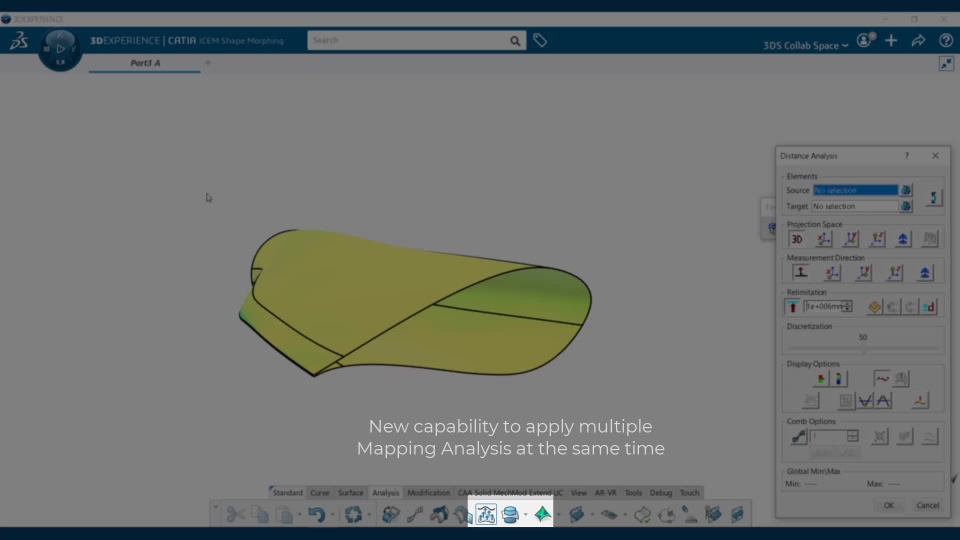

Analysis - multi-mapping manager: manage several shaders of analysis at the same time

I

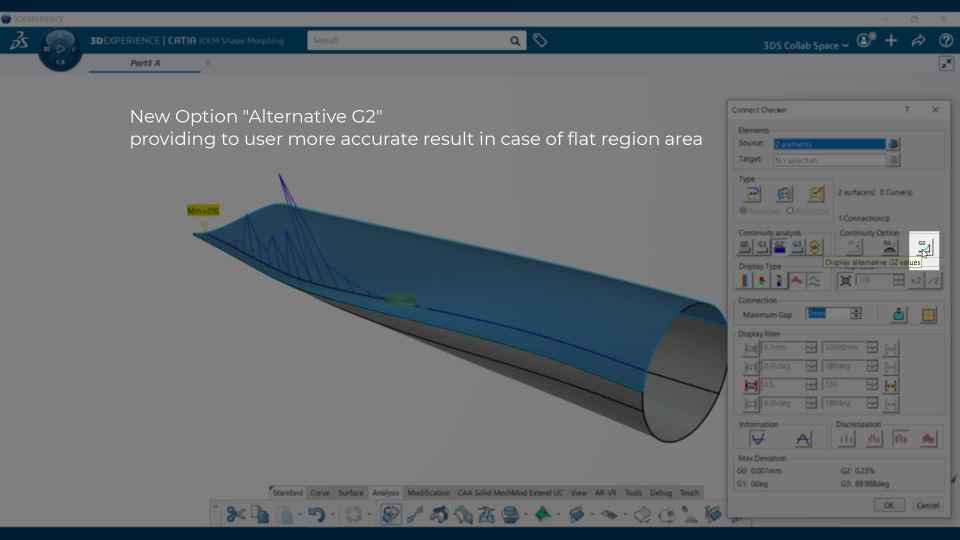

Connect Checker - alternative G2 measurement: Connect checker G2 continuity check now provides an alternative method (like in ICEM Design eXperience application), more accurate in case of very low curvature value areas

I

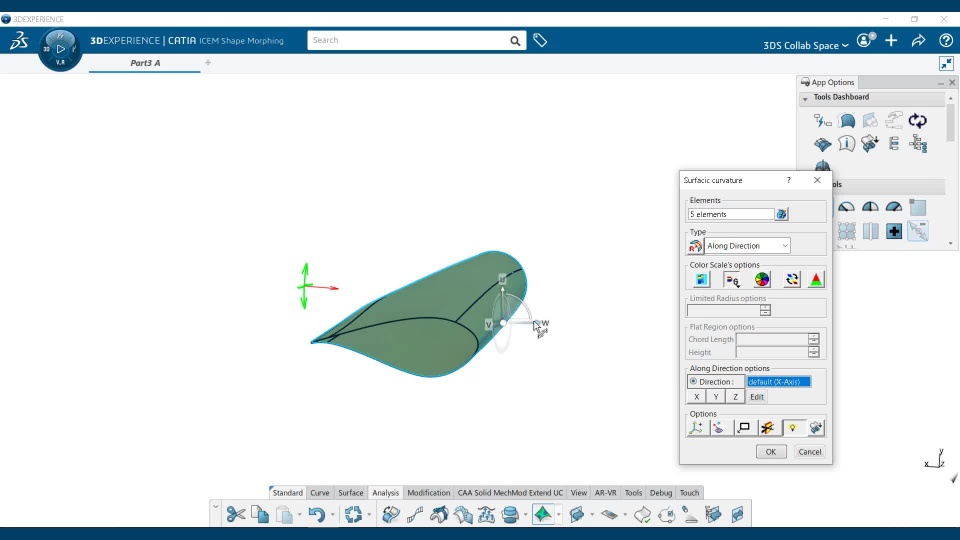

Surface Curvature Analysis - along direction: curvature analysis is enriched with this new option, answering latest Formula One regulations needed checks

I

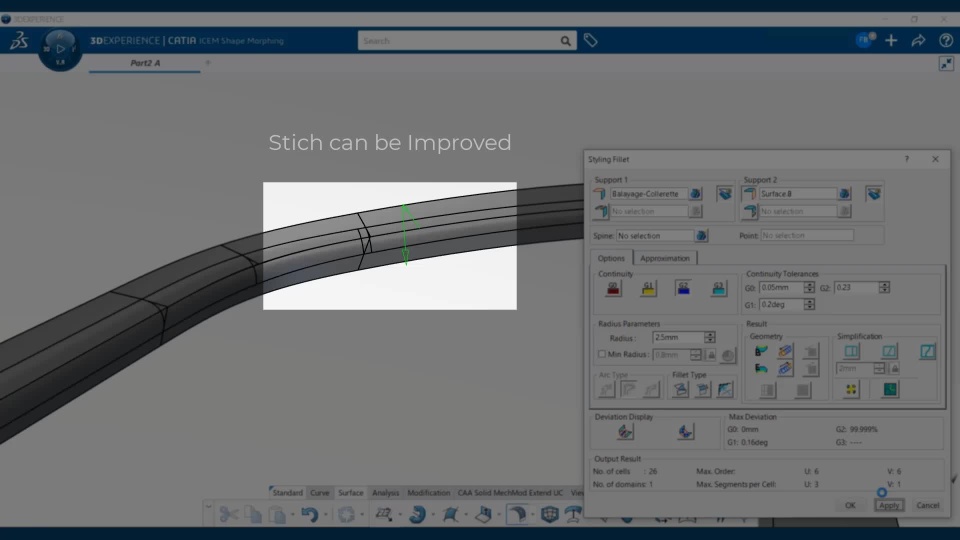

Styling fillet - Rip/Match options: skipping small faces induced by topology coupling from final filet ribbon is now feasible through one of those 2 tactical options
