[CATIA] Civil Engineer

Functional Value

Enhancements to Alignments for Road and Rail design include improved creation of Arc and Parabolic curves in the vertical alignment. The horizontal alignment will include a new visual feedback to display the road width and lane markings on the fly. Road widths can be managed thanks to standard rules shared within a company. Enhancements for generating rebar thumbnails along with the bar bending schedule in drawings will improve competitivity based on industry-specific drawing requirements.

I

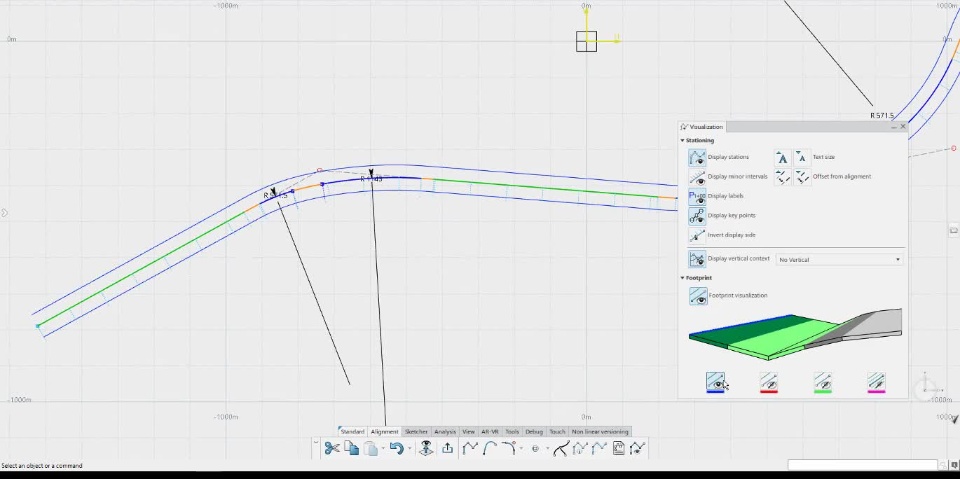

Enhancements in Alignment design

I

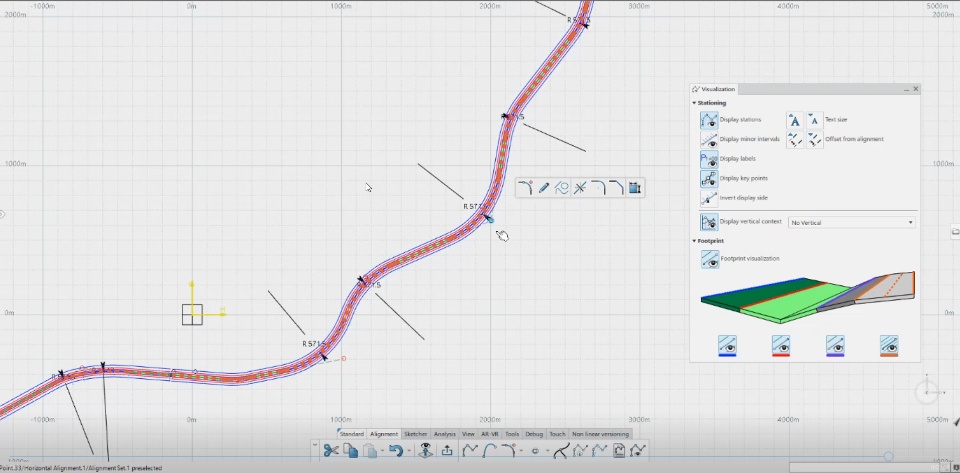

overview

I

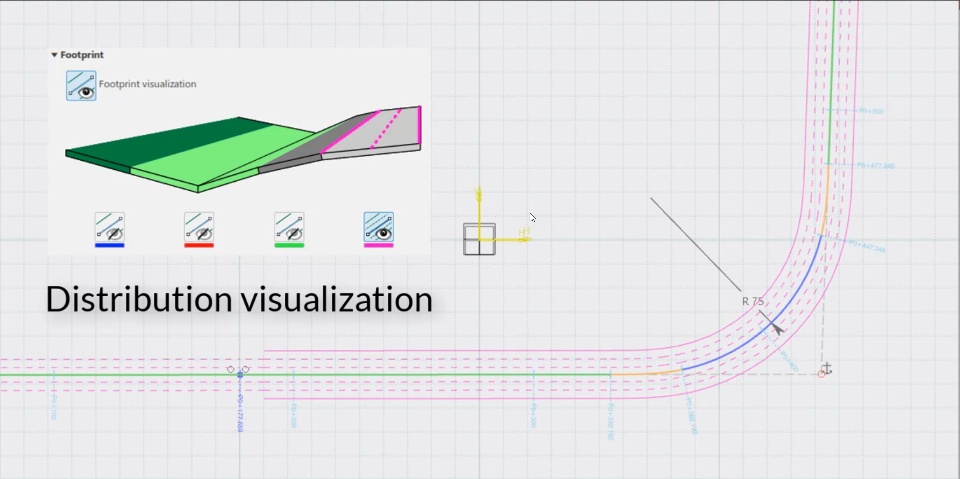

distribution

I

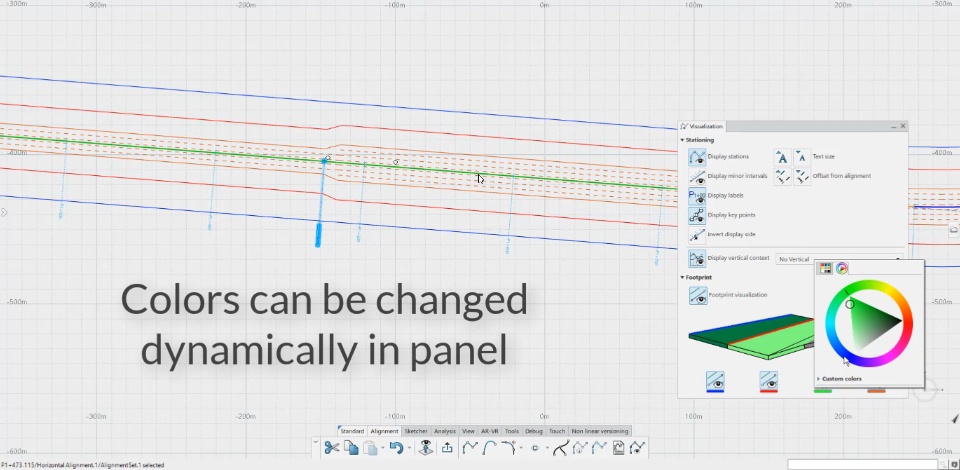

change color
