[CATIA] Civil Engineer

Functional Value

1 - Geolocation coordinates are now displayed in the alignment command, improving ergonomics when designing a new or existing road or rail project.


2 - Improved productivity for modeling earthworks by 40% when designing a road or rail alignment surface: terrain and sub-grade layers are automatically modified based on rule-driven cut and fill geometry embedded in the road and rail cross sections

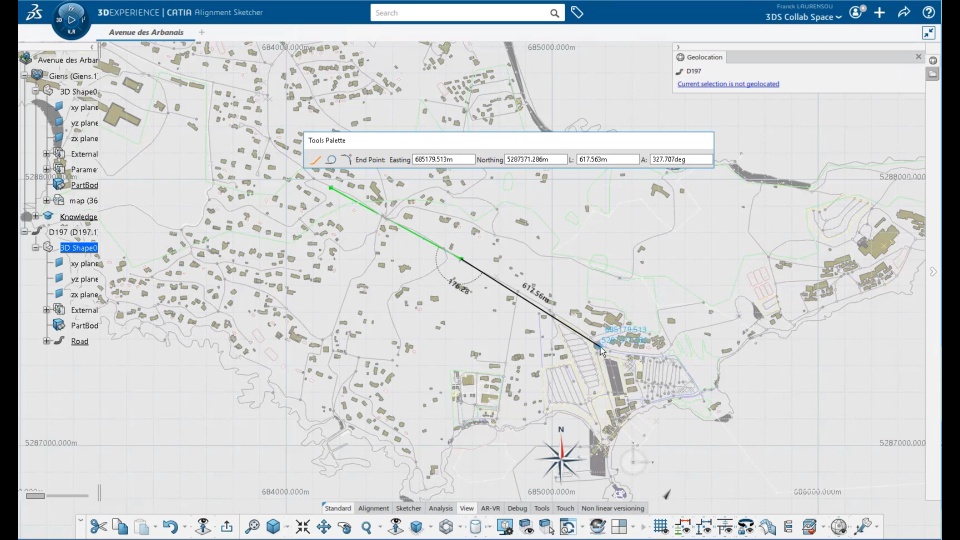

New in FD03, geolocation information is displayed directly in the road and rail alignment command to improve productivity when designing in context of the territory.

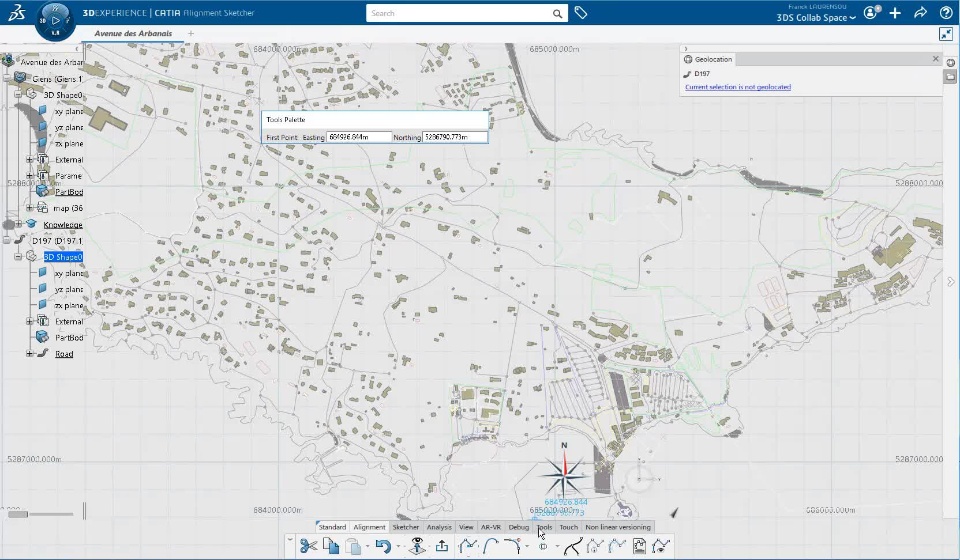

Geolocation information displayed in the alignment command improves productivity when designing in the context of a territory.

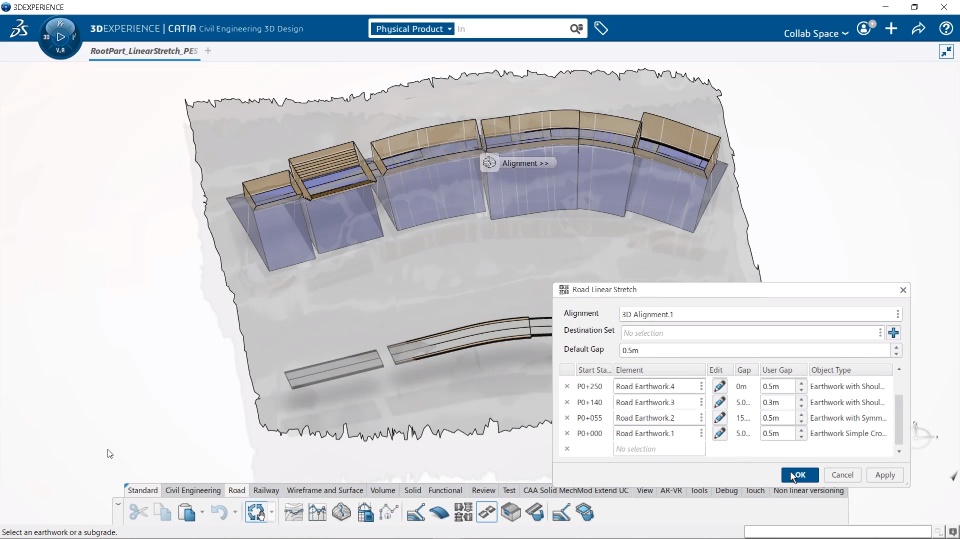

The new linear stretch functionality for earthworks cut and fil computation as well as road and rail surface creation improves productivity when working with individual alignment segments that need to be integrated into a continuous whole.
