Functional Value

- Accelerate design of buildings with new building design features including levels, walls, and slabs

- Reduce modeling effort of rebar structures with a new User Interface and automatic overlap computation when splitting rebar layers

- Decreased design cycle times though improved performance when using texture maps on large terrain data

I
The Building & Civil Design application functionality is greatly extended with the addition of 3 new features: Levels, Walls and Slabs

I

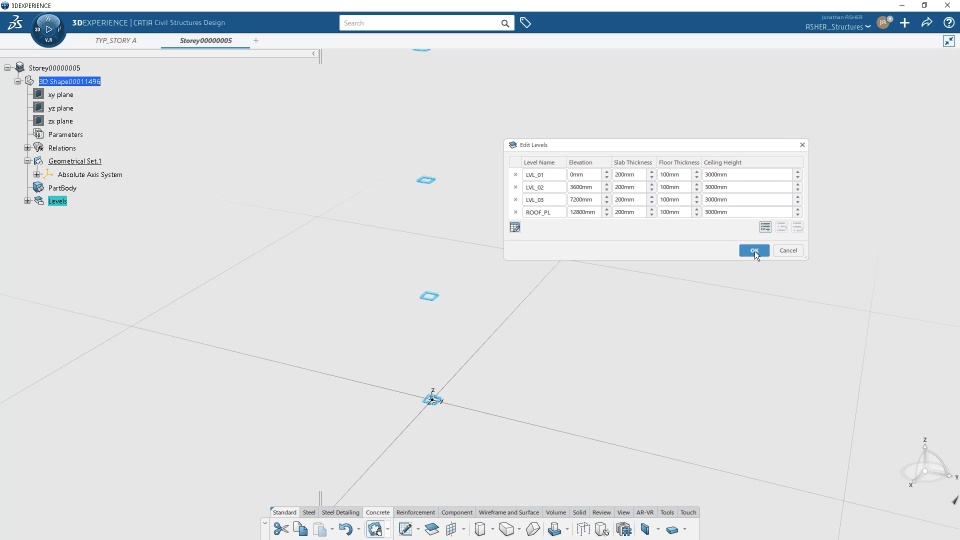

A new Level feature can be used to support building model stories

I

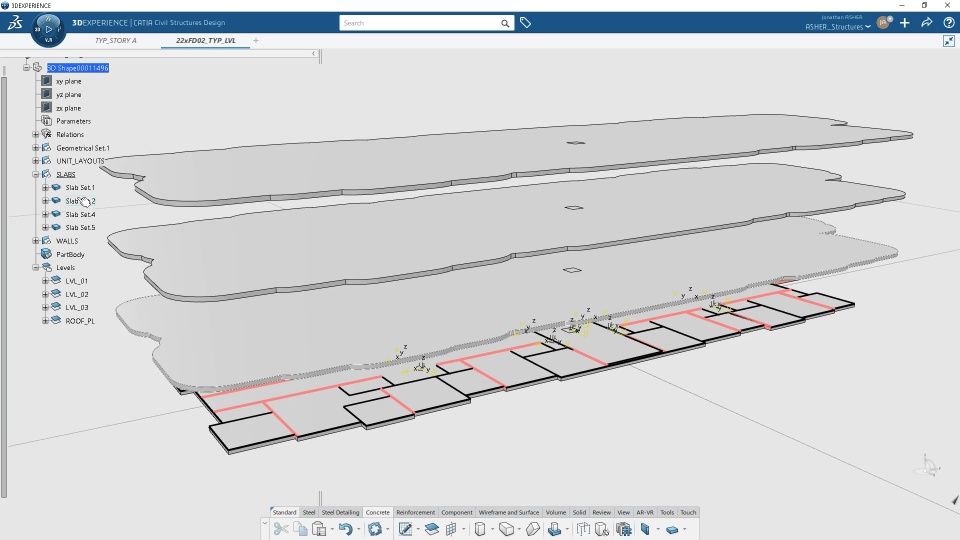

A new Slab feature and hole in slab feature can be used to represent low level of detail slab volumes

I

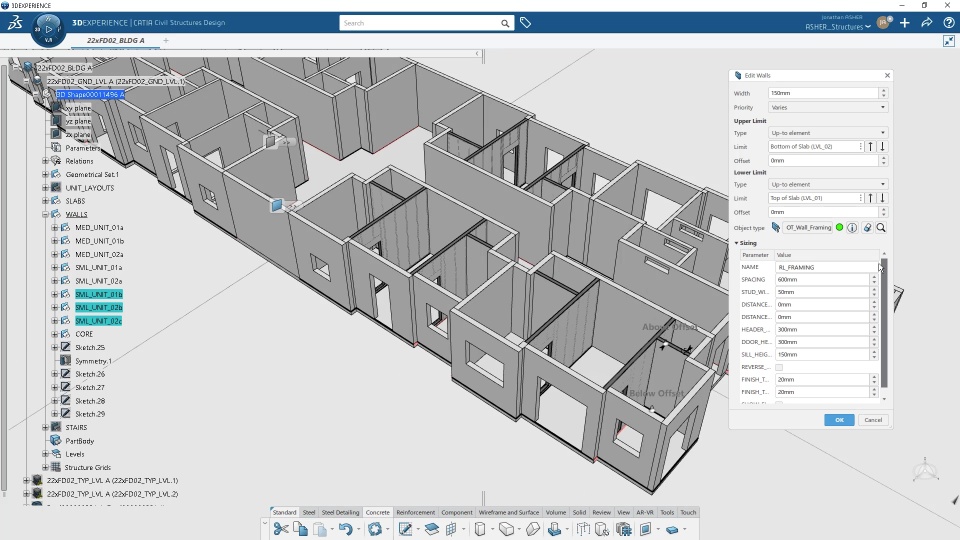

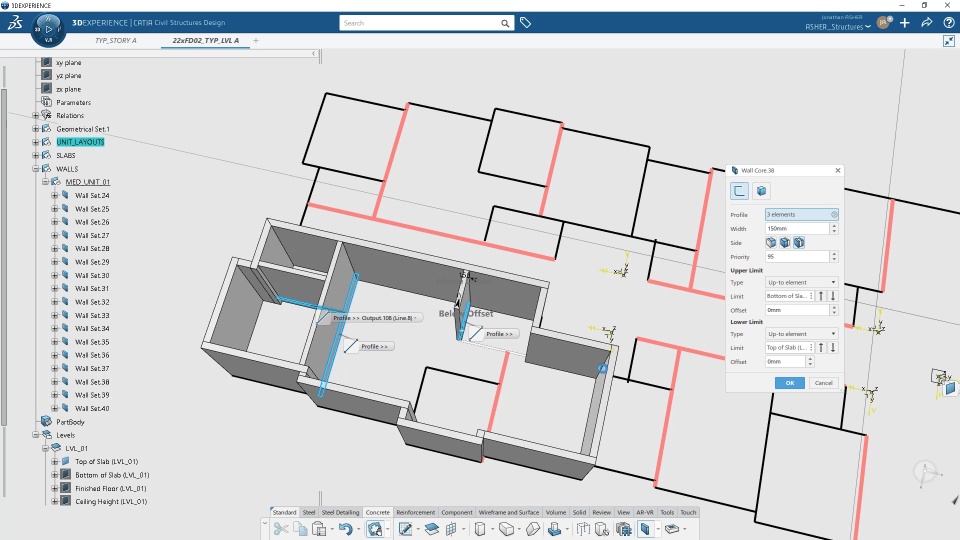

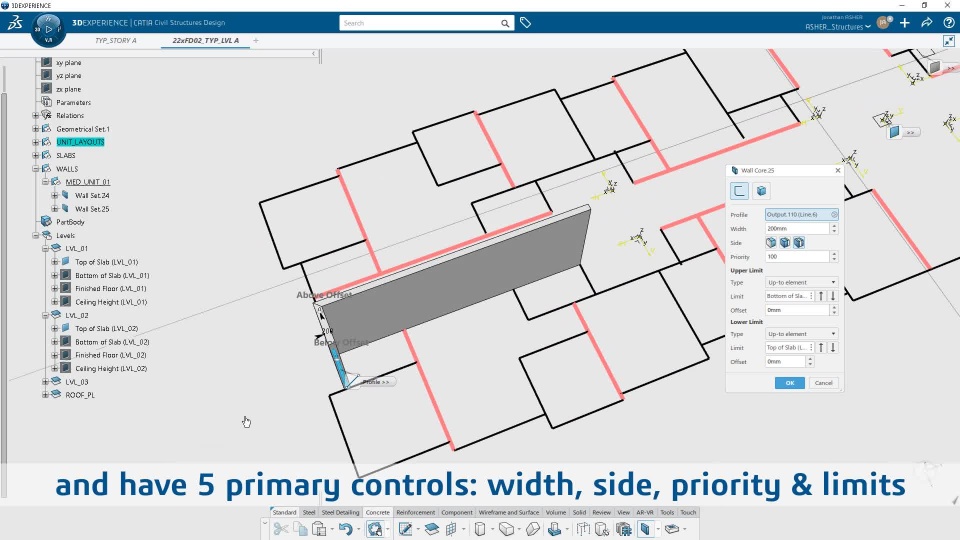

New Wall features are packed with functionality including top and bottom support planes, object types and priority to resolve corner intersections

I

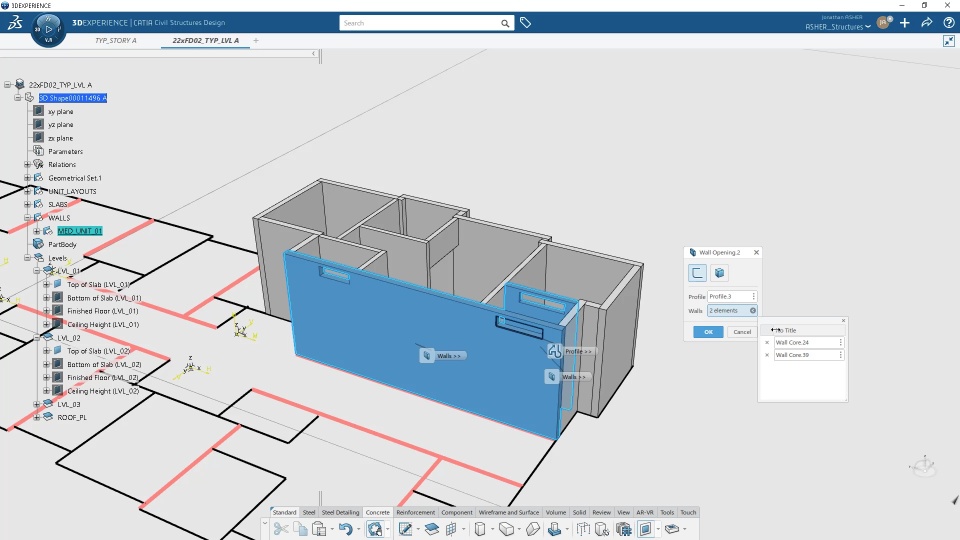

Wall openings simplify the creation of creating holes in walls

I
Object Types can be attached to walls and automatically instantiate a UDF feature with the wall as support. If the Object Type contains an Engineering Template, with the Change LOD command the template can also be automatically instantiated

I

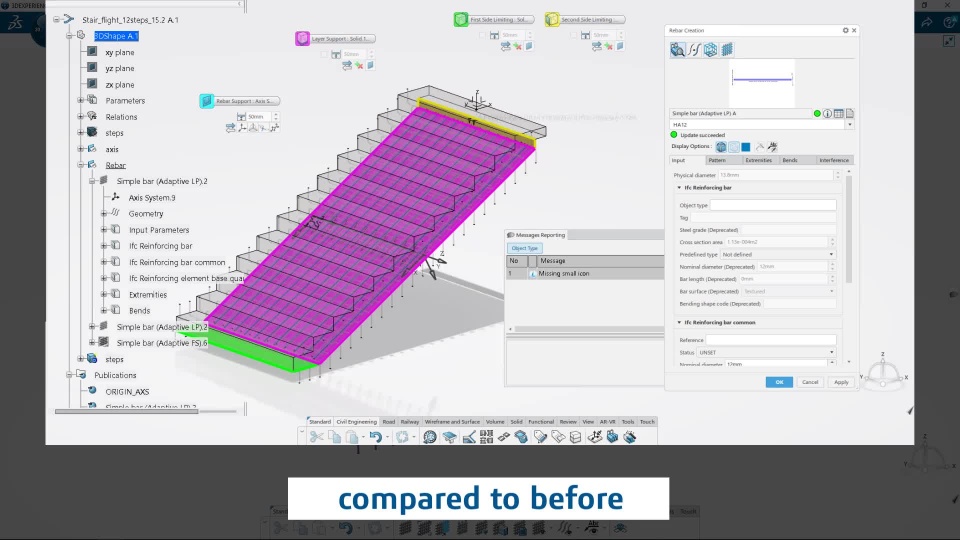

Reduce modeling effort of rebar structures with a new User Interface and automatic overlap computation when splitting rebar layers
