Functional Value

-Improve usability and completeness of Flexible hose Design to model non-rigid pipes.

-Unify user interface with bended tube.

-Provide a more accurate shape calculation based on internal pressure, tube physical characteristics and taking into account slack specifications.

-Improve Piping ISO and Ortho Drawing quality for production . Drawing can be generated from Manufacturing view taking into account information added by Manufacturing preparer. In addition, the Bend feed table has been enrich and add a new Pipe Cutting table has been created.

-Improve annotation auto positioning algorithm to avoid overlap

I

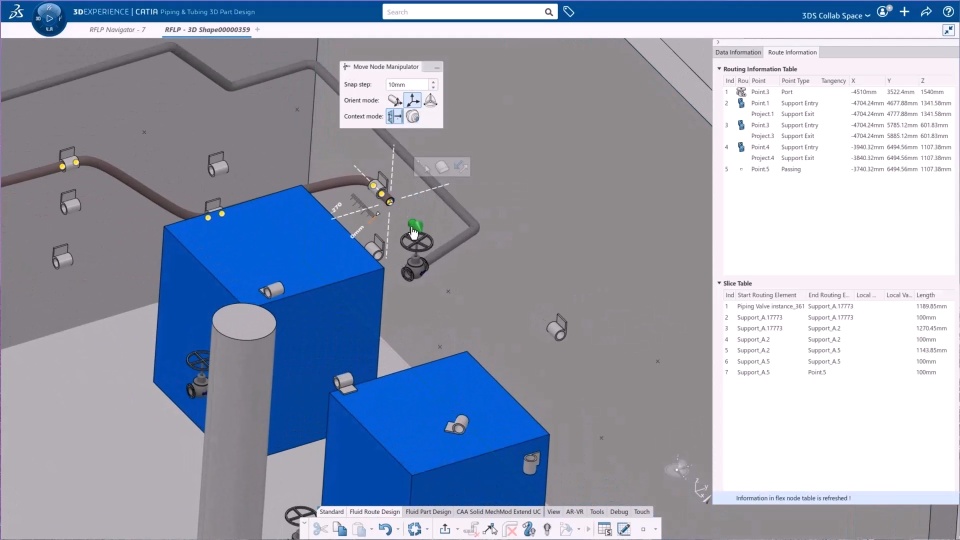

A new user interface for flexible tube routing

I

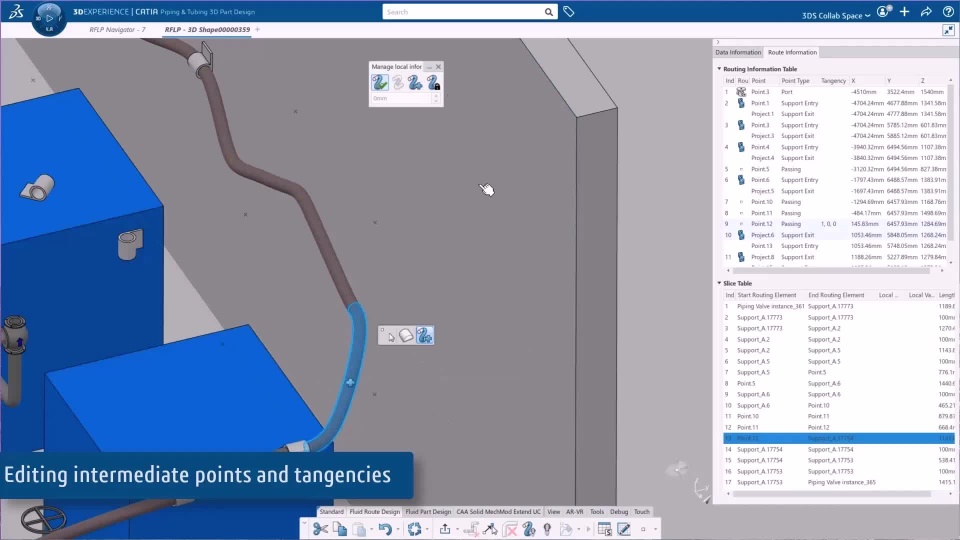

A new user interface for flexible tube routing
