Hi there,

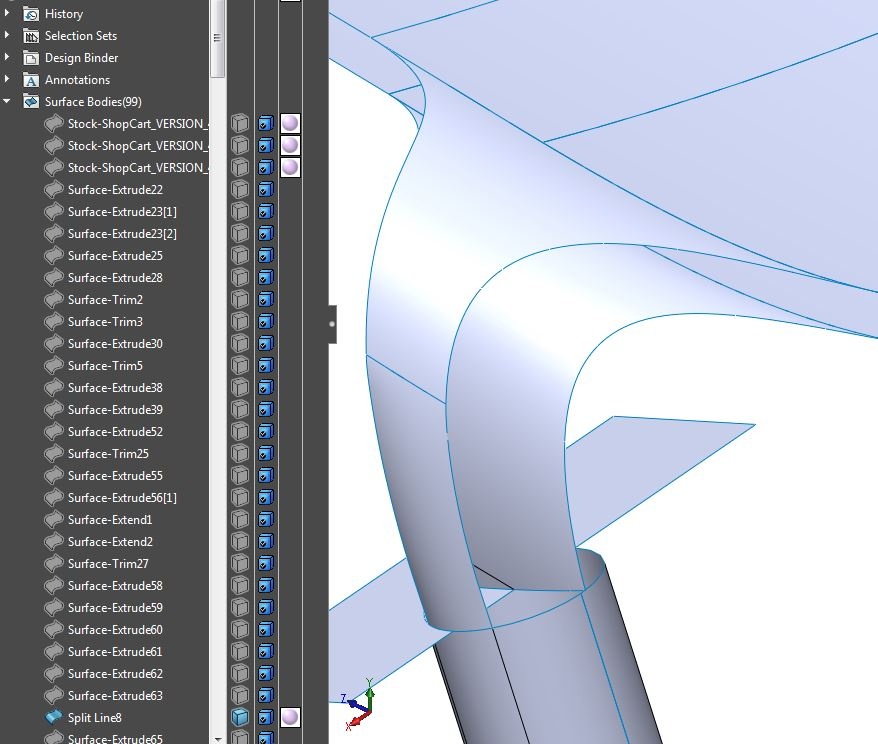

I have a workflow question that if I get answered will make my life a lot less frustrating. When I model I end up hiding surfaces but when I need the hidden surfaces back I end up scrolling up and down the features or the Surface Bodies folder at the top looking for the orange outline of a surface that I need shown again. This becomes very time consuming when surface geometry starts to pile up (and this happens quickly for me). I like the Tab button for hiding. Shift_Tab is convenient for showing hidden surfaces only at the beginning when i don't have a lot of stuff yet. I little later, when I have a long list of surfaces Shift_Tab is useless because it starts to overwhelm the screen with stuff that I don't need (Murphy's law) . I have heard that NX has a cool feature where you can inverse ans see all the hidden surfaces and select what you need to be shown and switch back to the works space. Is there anything like that in SolidWorks? I am willing to try any other trick to alleviate the pain. I am joking with my coworkers that 90% of my time in SW is spent scrolling in the Feature Tree.
Thank you,
Anton
SolidworksSurfacing
Have you tried favorite folder which you can put your favorite features there for on/off
No,
I haven't tried that. I have to try it.
First it's a little different when working in a part or assembly. And you have the quick hide trick down, as well as keeping your surfaces and bodies folder always showing in the feature tree.
For an assembly, use the "Show Hidden Components" tool to show those hidden parts and temporarly hide all non-hidden parts. It looks like this -
For a part, there is a 'Bodies' command that doesn't have a toolbar icon, I don't know why it doesn't. To get it you either have to type Bodies in the Search Commands, or go to View -> Hide/show -> Bodies from the top of the SolidWorks window.
Thank you very much. That is exactly what I was talking about.
