Wire Harness modeling

Hi everybody,

Im not feeling that great.

I was told to Create the following with no experience and not a single clue of how to do it. I only have a 2 year degree from a tech school with only 6 months of training in modeling and annotations in Solidworks.

  1. 1.     Electrical wiring
    1. 1.1 Full ‘Hardware’ location and identification
    2. 1.2 Full, assembled (actually fully pre-assembled and bundled) wiring harness(es) with wire type and insulation, wire gauge and type of terminals with specific details to crimping or soldering
    3. 1.3 Main Power supply to MCC
    4. 1.4 Power supply cables and terminals from MCC to each jack terminal box
    5. 1.5 Cables from MCC to Terminal box at jack(s) with connector, not hard wired to box terminals
  2. 2.     Limit Switches
    1. 2.1 Limit or Proximity Switches. Type, location and adjustment method to be determined.

i can do dimensioning and modeling but when a boss askes for a time schedule to do this...i don't know what to tell him and what really i should know before undertaking this project. I don't want to BS myself that i can do it with no training whatsoever in this particular Project.

From the audience could you please tell me how i should proceed about doing this the right way? If you think i can do this can please tell me what you think the time scheduling of this should be from a beginer?

I really don't want to screw this up, but worst of all i don't want to BS my boss, i want to be honest with him about this topic.

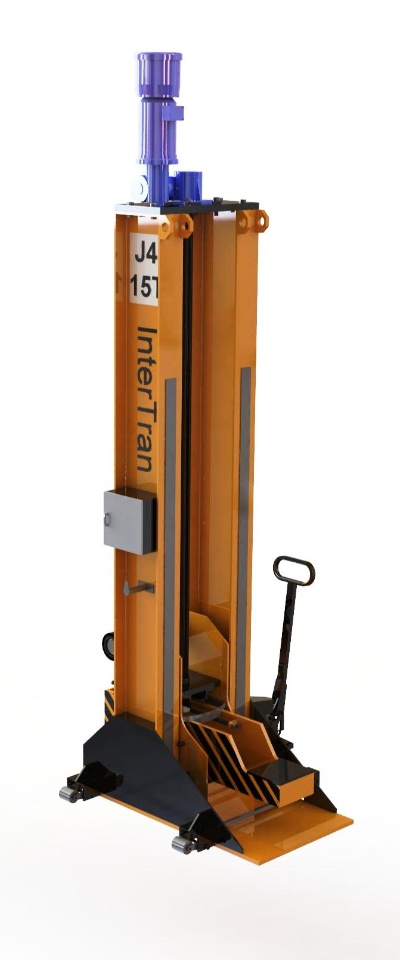

company website: www.intertranusa.com go to bottom of page and click on mobile jacks and see this project. which needs to be done right this time.

Thank you,

Max
