Weldment parts dont separate corerctly resulting in wrong lenght in cutlist.

Hi,

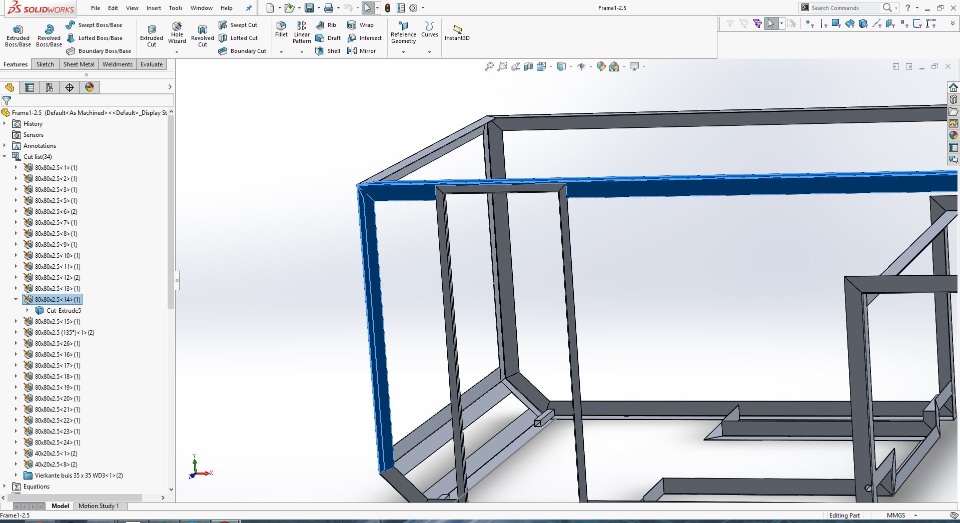

I have a problem with my weldment frame I created. It seems like 2 members who should be different pieces, are seen as 1 piece. How can I make Solidworks understand it are 2 different members? As you can see on the picture the horizontal member and the vertical member are seen as 1 piece but in fact it should be 2 pieces welded together.

In my cutlist they are also marked as 1 piece.

SolidworksWeldments
Answers 2
GS
GS 2016-11-03 Best Answer

It's difficult to say for sure without having the file to look at, but it's likely that those bodies were somehow combined into one.

AR
AR 2016-11-30

Check for any "Merge Bodies" being checked in the cut Extrude feature.
