Weld bead in assembly won't fill in corners

I have an assembly I would like a weld bead on, but I can't get the bead to go around the corners. any ideas? I don't know much about modeling welding.

SolidworksAssemblies
Answers 3
SF
SF 2015-09-29 Best Answer

The weld bead is a cosmetic feature to the best of my knowledge so it doesn't really matter if it doesn't join on the corners from the part perspective. Since it's a cosmetic feature I don't think there's an automatic way to connect the corners there, if you want to you could always manually create the joins with a profile and revolve feature.

DB
DB 2015-09-30

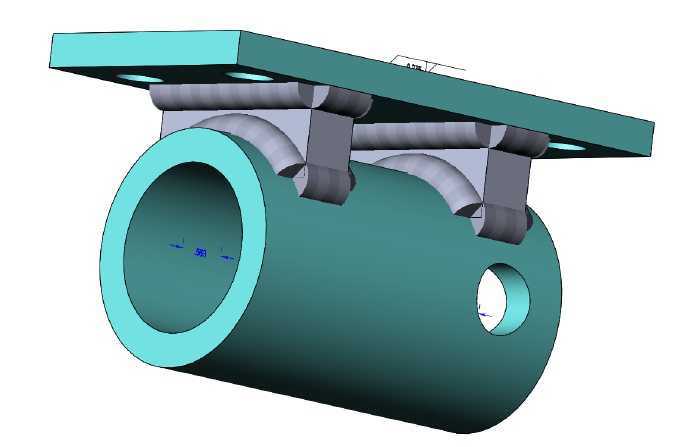

If you really want the bead to look adequate you can fillet the blocks slightly in order to have the bead propagate smoothly around it. I have done this before and created a configuration for it. That way you still have your unfilleted block for your drawing and machining.

Edit: This way you won't be confusing the person doing the welding.

comment imagecomment imagecomment imagecomment image
SF
SF 2015-10-01

Good idea. Thanks!
