Weld Bead in a weldment part file?

Brushing up on my limited weldment experience here.

In the help pages (2006 as well as 2010) it states that weld beads can only be done while in an assembly.  I know that I can do fillets at the part level why can't I do other weld types?

TIA

Steve

SolidworksWeldments
Answers 6
KB
KB 2010-01-21 Best Answer
SolidWorks has limitations and this is one of them.
DG
DG 2010-01-22

Steve but why use them. I mean I don't find any use of putting up weld beads rather put annotations in the drawing. What you say?

They just consume the memory and make the file heavier. I don't think other than aesthetic and weld beads weights, they have any other advantage.

MG
MG 2010-01-22

Hi Deepak

I'm with you on this one, only point of using them is for a visual aid.

If you could use them like in Inventor where you can export weld bead info to Excel (weld length / weight / size / volume etc) then i might use them.

When i used Inventor from this info i could calculate total weld length / size and how much extra weight would be added to a structure.

Once I knew how much weld was required we could work out how many welding rods / mig wire we would need and from this the cost.

Unfortunately when we moved from Inventor to SolidWorks this ability was no longer available.

I have submitted a Top 10 wish for weld beads to be exportable (as in Inventor) if you think that this is useful then please vote for it.

thanks

Mark

SC
SC 2010-01-22

I tend to agree with putting too much effort in showing those kinds of things is really just fluff and not required, other than visually, to build the part.

Thanks,

Steve

If I could spread out the correct answer, I would in this case.

SF
SF 2010-01-30

hi steve!

I am having the same trouble because I am always with a lot of job and very little time.

one way to bypass the trouble, have a pretty visual effect and calculate the amout of welding in a frame is the following:

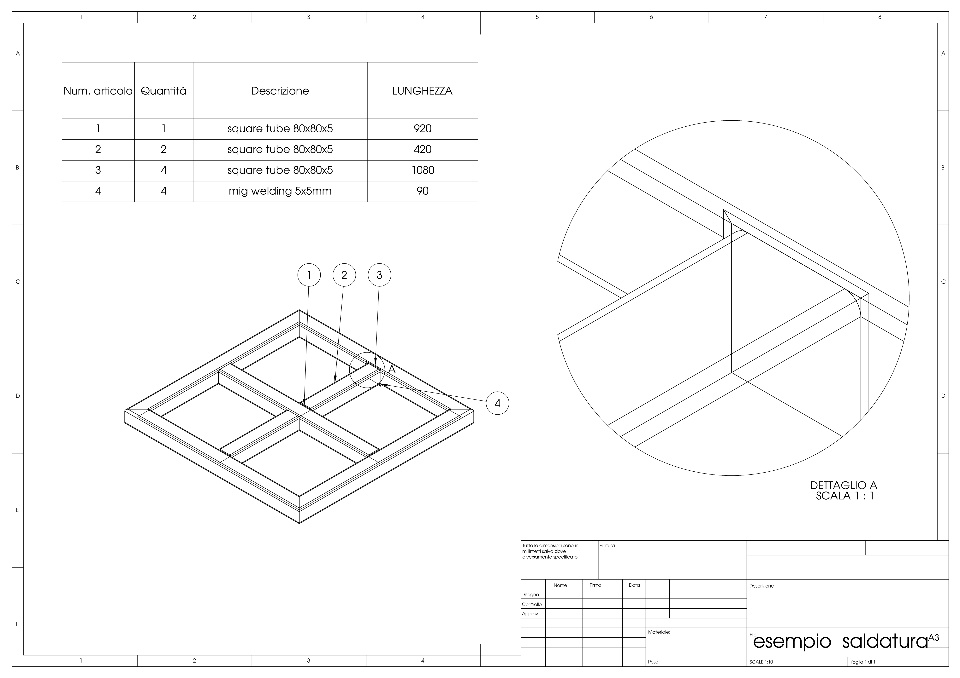

create a new folder in welding elements named weldings then fill it with triangular shapes and name them welding, be careful to insert the description "welding" or whatever you fancy to see in the cut list. then use 3d sketch to draw weldings and then insert on it the welding profile you created.

when you make the cut list, weldings will be shown on it together with the rest of material.

I do it and is better than nothing

SF
SF 2010-02-22
What about using fillet bead in weldment?
