Currently I have to update our company's drawing templates, these exists of 5 sizes. At the start the engineer chooses his drawing sheet size. This choice is not always the right one and needs to be changed during the project. They can do this via the sheets properties, and then choose browse and select the correct file. (All the sheet sizes are saved as .slddrt) we have several customers who all have there own title blocks for several sheet sizes) A lot of things can go wrong.

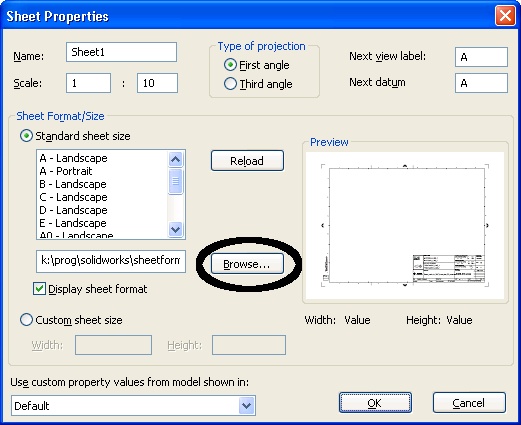

I want the five sizes of the custom drawing sheets to be viewed in the "Standaard sheet size".
1. Engineer chooses customer specific drawing template, from customer A.
2. Engineer want's to change sheet size and goes to sheet properties
3. In the standard sheet size he can choose from the customer A specific sheet size
4. All information form the title bock is taken over
For customer B the shown options are different than for customer A!
How can i do this?
SolidworksDrawings And Detailing
The only thing I can think of right now is to put each customer specifc set of stuff in unique folders. Then the process would be to browse in the templates master folder for the proper customer folder and then pick the proper size.
We handle it a bit differently in that we just have the templates named by customer and they are all in the same location so scrolling down the list is the process.
WT
that what we are doing now, but it's not a natural process and thing can go wrong, when people:
1. Select the wrong sheet template, e.g. from another customer
2. Start a complete new sheet and copy past there model/views
This is what I want to prevent, by making it easier
Why not create blocks of the title block info and insert which ever block you need.
Is there any way to have the title block set up the same but pull of the customer information from the custom properties? Just a thought but I am sure it's one you have already thought of.. sorry if repetitive.
Nic
Just so I'm not missing anything, what kinds of problems besides overwritten titleblocks are you having?
I think you are on the right track. The most important part to avoiding overwriting titleblock information is to have the all the sheet formats ("slddrt" files) saved with titleblock text that references the custom properties.
You could organize your sheet format files a couple ways. First, is the way Wayne described. The only problem I see there is you have to browse for the templates.
Alternatively, you may need to save each starting with the customer's name, in the same directory as the "standard" sheet formats. Using the second method, your sheet formats will appear in the "Standard sheet size" list, at the left of the image you displayed. I don't have to apply customer templates, but I do have to change sheet sizes or add sheets from time to time. My sheet format naming convention is like this: [Sheet Size]-[sheet number]. So for example, "D-Size-Sht1.slddrt". So for your case, you could name your sheet formats as: [Customer]-[Sheet Size]-[Sheet Number].
