Solid Sweep

I 'm looking for an easier was to model this slot.

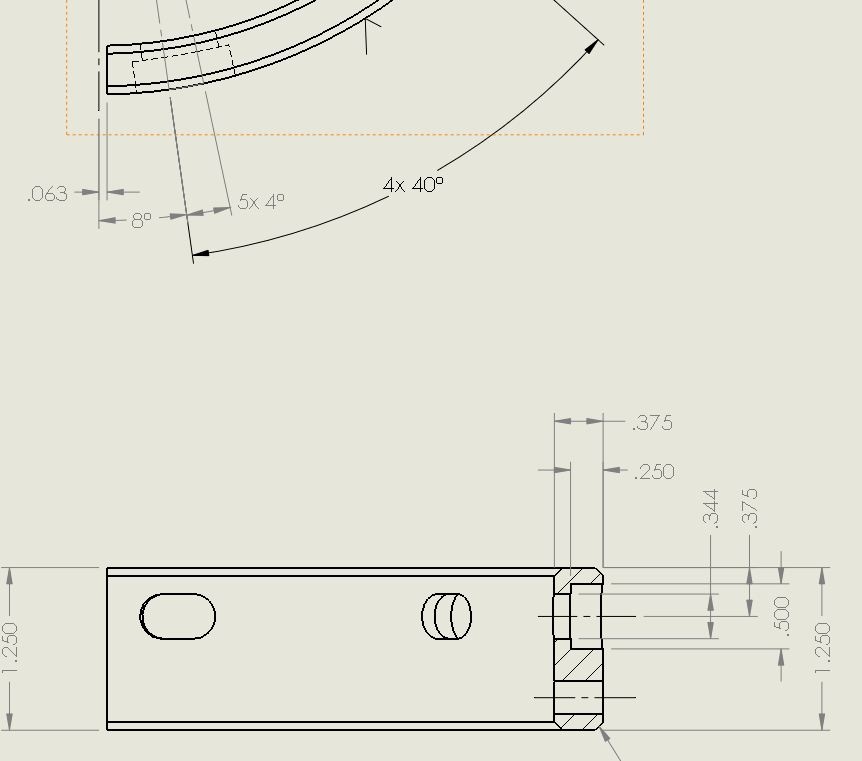

First I tried a sweep cut “T” shape as shown in the cross section.  Then I added fillets.  I wasn’t sure it was accurate and I wanted to use the sketch geometry on the drawing to assist in dimensioning the part.

I then tried a solid body sweep cut over the 4 degrees.  The problem here is that I had to do it with a .344 dia cutter and then again with a .500 dia cutter.

I tried to use a “T” shapped cutter but I kept getting a error saying something about a convex body or a revolved body.  I was using a revolve body to make the cutting tool.

Can I do this with 1 cutting body?

SolidworksParts And Features
Answers 5
AW
AW 2014-03-06 Best Answer

Can you post your part and cutting tool models?

Cheers,

Anna

TS
TS 2014-03-06

Part XYZ is a triing to use 1 cutting tool.

Part HSB-828 is the real part.

Thanks

JM
JM 2014-03-06

Is the bottom of the counterbore supposed to be a planar face or is it supposed to be a curved face?

(Sweep solid cut (on arc) will not result in a planar face.)

TS
TS 2014-03-06

It should be flat towards the ends and curved in the middle.  The Solid sweep should do better.  Another altrernative is to add counterbored holes then sweep cut what's between them.

I 'm looking for an easier way to model this slot.

ML
ML 2014-03-07

Tom,

No you wont be able to use a solid body such a a "T" cutter.

It will only solid cut if the body is a convex shape.  That is a rod or a cone

You may want to try the Wrap feature - Deboss
