Hello,

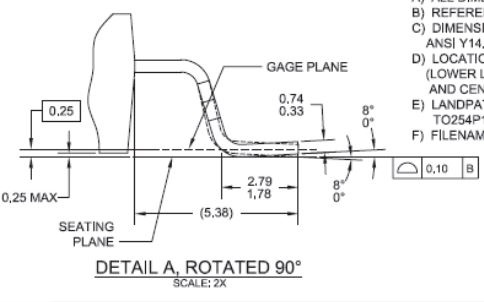

Newish user here to modeling in general.  I am having trouble with SMD type components.  I am having a hard time tying to figure out how to model the legs because they are like s shapes but there dimensioning is odd.  So looking at this picture I can see I know the height of the pin and some mesurements on the size of the pad and distances from the body but what I don't see is the leg bend radii?  How do I set these or make a relation to represent these bends?  Also, what does the degrees have to do with the leg to the right?
