Simulation with bearings

Hi all !

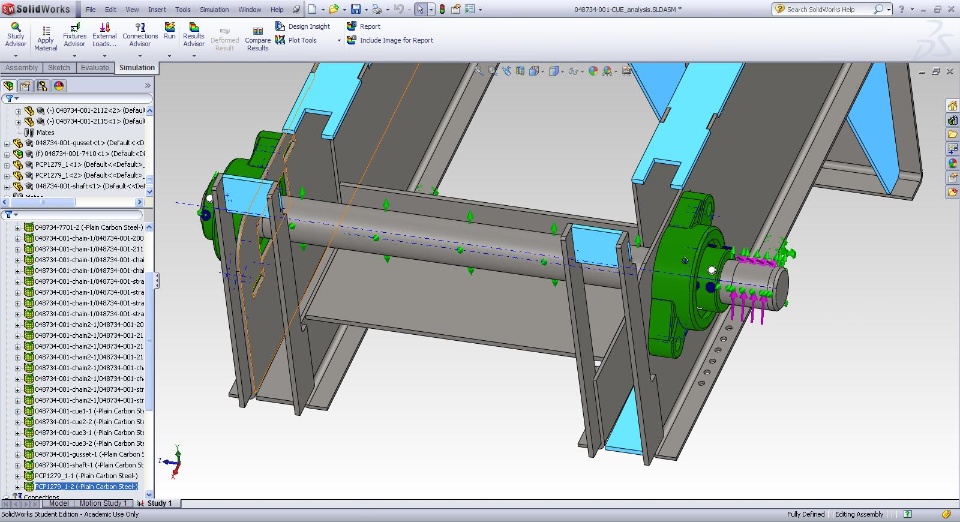

I am trying to run a simulation on a system as shown in the image attached. The green area are two bearings on both sides and the pink area is where I have torque. I am using simulation 2011. I dont really understand how I can use bearing fixture/connector to simulate my system. the bearings are connected to the sheetmetal using bolts. I am not too worried about the bolt. We've actually built this system and the torque is causing the sheetmetal to deflect/bend. Any Ideas ?? Thanks in advance.

Umang

SolidworksSimulation
