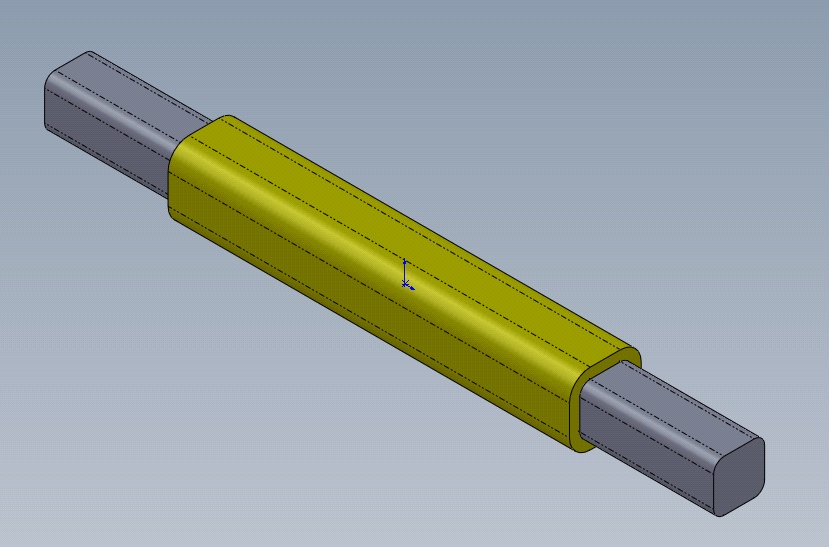

Has anyone ever tried to simulate the forces generated from part shrinkage during manufacturing? I don't need to know the values of the forces, I just want a picture showing where the highest stresses are in the cross section of the part's profile. Here's a picture of an example part:
Part is being pulled over a steel mandrel, and also through a die (to form the outside shape).
Thoughts? Questions?
