Dear all,
I am doing simulation of two beam structure based stage, but the simulation result is different from the beam theory design. Can anyone tell me what result this difference?
I test two designs, the basic beams have the same dimension:
l=60 mm
t=1.1mm
w=25.4 mm,
The designed deflection at Force 20 N should be around 1 mm.

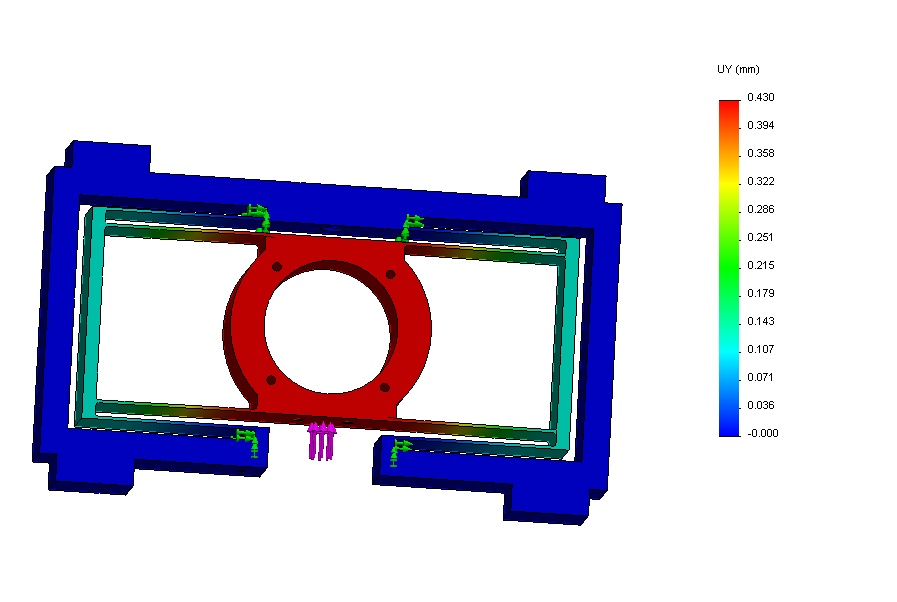

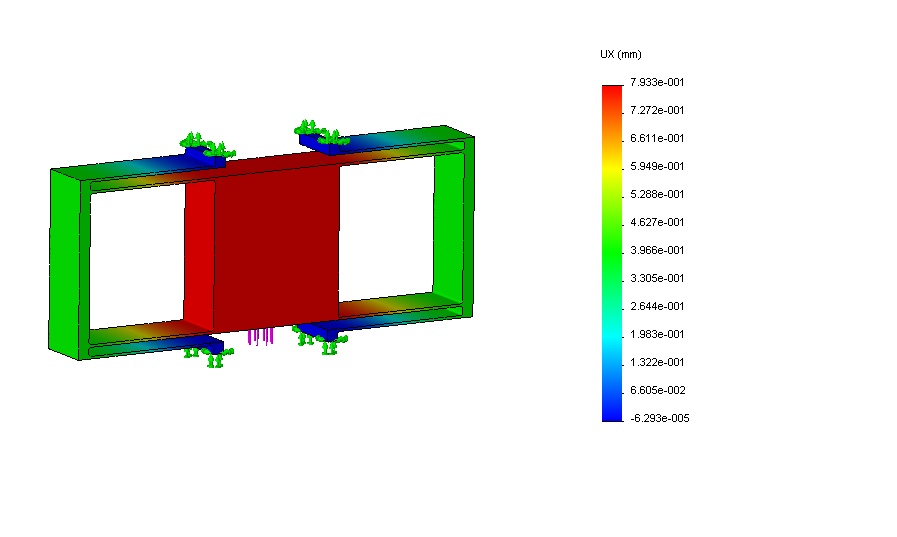

The simulation result of double folded beams stage is quite the same with the theoretical result. But the simulation result of the other one, double folded beams stage--flexure Y, is only half of the theoretical result.
I think the two stage should have the same deflection result under this situation. I do not know which part is wrong.
Thank you very much!
best
SolidworksSimulation
