sheetmetal bend note

Hi everyone,

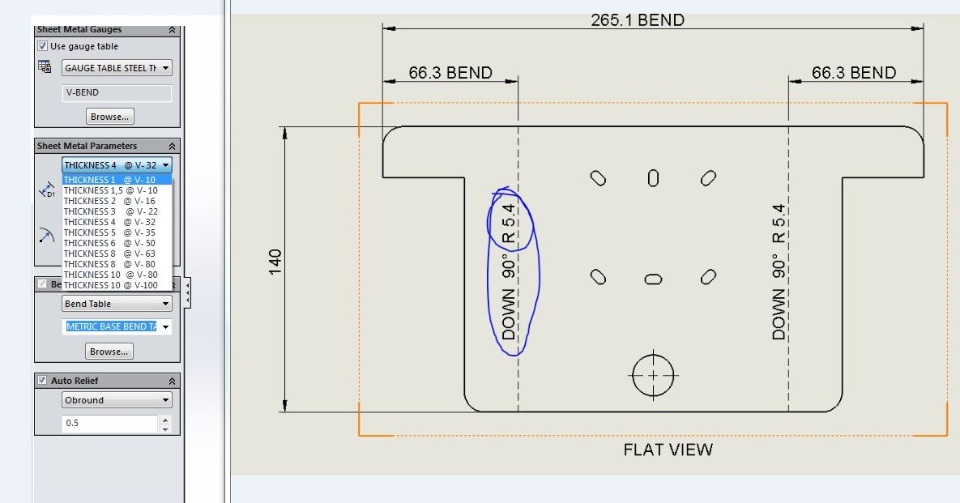

In sheetmetal flat pattern drawing view can we set v block detail in auto insert notes instead of bend notes? refer image

Thanks

Priyank

SolidworksDrawings And Detailing
Answers 3
DP
DP 2014-05-06 Best Answer

Hi Priyank

We can avoid bend notes as shown in image, Hope you can insert notes manually. But wait for others comment too.

comment imagecomment image
SF
SF 2014-05-06

Thanks Denny ,

but what our req. is " DOWN 90 ' V 16" autoinsert ...instead of radius value he want V block detail

thanks

DP
DP 2014-05-06

Link to property is possible, but again not an auto insert.
