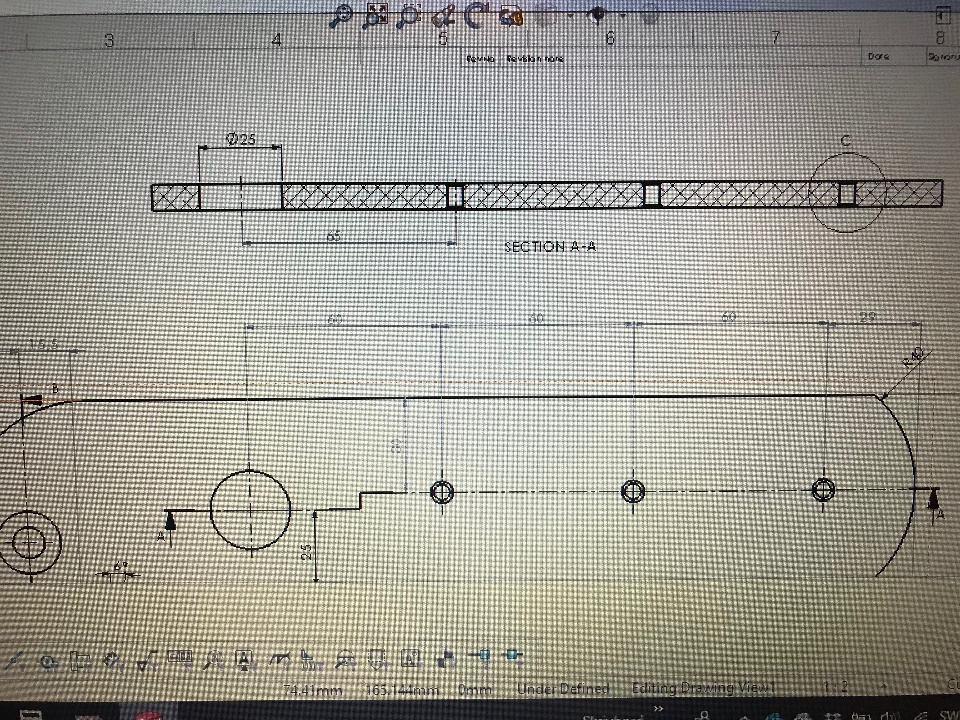

I have a problem when I take a section view; everything is fine except the first part where I did a " S ". It measurement is 60 and it became 65 in the section view.
Hi again,
I have a problem when I take a section view; everything is fine except the first part where I did a " S ". It measurement is 60 and it became 65 in the section view.
Edit the sketch from the section line. Change the Vertical line to a construction line.
Edit: When you make the vertical line (in that scenario) a solid line, then Solidworks automatically "unfolds" the section view. Making it a construction line will fix that problem.
2017 SOLIDWORKS Help - Creating a Section View Manually
