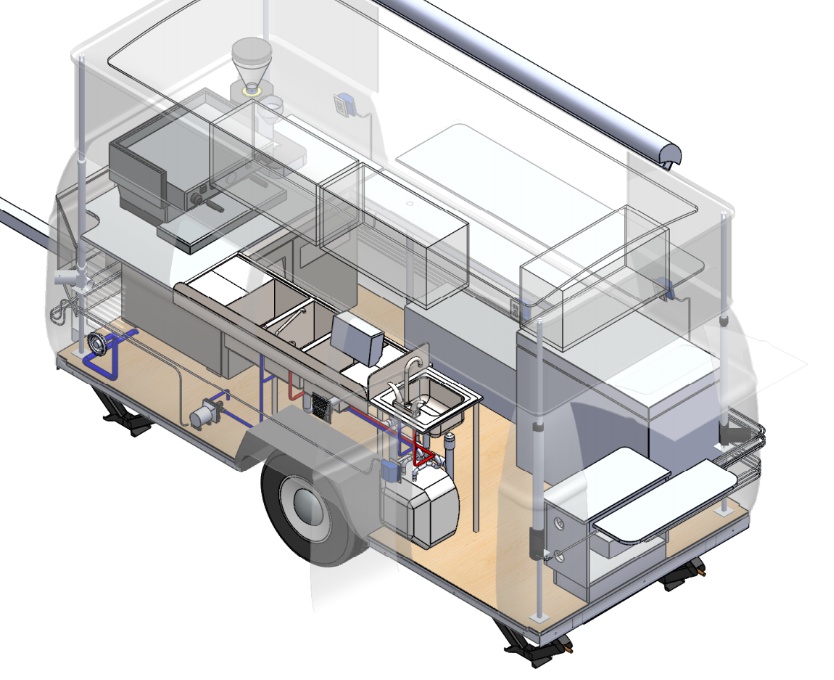

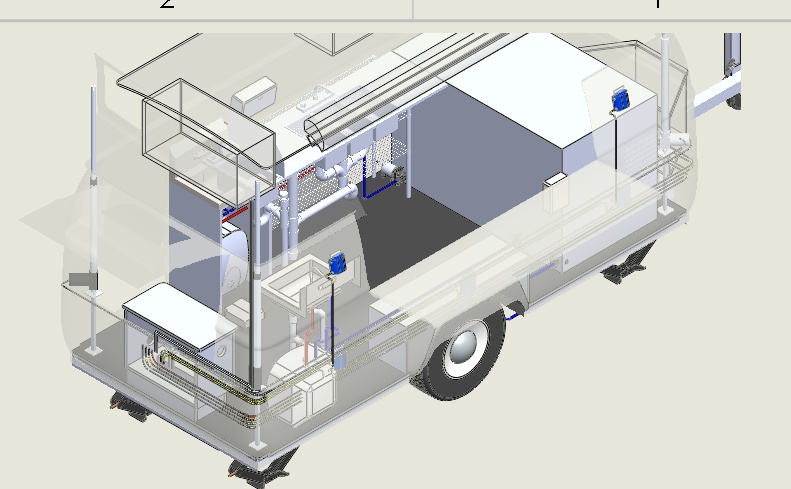

What is the easiest way to flip an isometric view so that it faces the other way? My current view is the first image and I need to align it so that the view is from the angle in the second image.
What is the easiest way to flip an isometric view so that it faces the other way? My current view is the first image and I need to align it so that the view is from the angle in the second image.
Try my tools which you can view in 8 different corners
With on that one - best option out there
You can also spin the view to whatever viewpoint looks the way you want and then save that view. Search for Creating a Custom View in Help.
Shift+Arrow rotates view 90º.
Start at Iso View, CTRL+7.
Hold Shift. Hit Left. Hit Left. Hit Down. Done.
Except, now it seems to be looking down more than it was. Not an ideal solution, but fast and dirty.
From there, you can use View Cube to align it better.
As suggested, then save view if desired. I also do that for any Assembly in which its primary Iso view is not ideal to illustrate what's going on, so that I can recall it on a drawing view.
That said, non-ideal results is why 's tool is a superior solution for what ought to be a UI enhancement.
That depends on your arrow key settings, if they're set to 1 degree or movement there are more then 3 hits
Actually, John you are incorrect. Shift + arrow automatically does 90 degrees no matter what your settings are.
NOT using Shift is dependent on your settings.
Looks like you want the view on a drawing (as opposed to in the part).
I put some temporary views off to the side of the paper (front, back, left, right) and then go to view layout>projected view and select a different drawing view and move the mouse to get on of the 4 isometric views.
When I get the one that looks right, I hold Ctrl and place the view. Then delete all the "extra" views I don't need.
This is also the cheat code to unlock 3 free rebuilds . . . ha
t
I can say this because I'm a huge fan of keyboard shortcuts, and really appreciate this!
ooooops - gotta learn how to read - - overlooked the "Shift" - kind shifted out of view... - Thanks for the correction Dan...
LOL, I don't know how many times I've done this. Flipping view off of view off of view until I get the one I want.
Not just for iso views either
I agree with that it appears you want a drawing view. Create a new view in your model (with it oriented like in your second screenshot), and reference it in your drawing. See #17 at for instructions.
I figured out a couple ways to make it happen, thanks everyone!
you can also RMB on a view in the drawing and pick 3D Drawing View (the circled icon). From here you can freely rotate the view or select a different standard view. You can even save the view (floppy disk icon) or just hit the green check to use the new view. This is SOOO handy.
Excellent tip, Dennis! I knew there had to be some way of doing this. Thank you for showing how.
...or click on the same icon in the heads-up area with the drawing view selected.
Thanks for that, Glenn. One of the nice things about SWX is that there are usually multiple paths to get to something. Personally, I like the RMB version as the pop-up menu is right there and is context sensitive (and even customizable). I just wasn't able to capture an image of that approach.
I have used the macro below for about 13 years. I stole it from Lenny Kikstra maybe? Or Mike J Wilson?
Anyway, it creates named ISO views for all 8 corners.
