Relif Sculpture modeling

I have had several projects when I need to create a relief kind of model but I have been unable to do so. I understand solidworks is not meant for such type of modeling but wondering if it was possible. How can I add the lion relief on the helmet top of the forehead region. helmet is in solidworks. I would be happy even if I just did sort of like an engraving type effect of the outline of the lion

SolidworksParts And Features
Answers 12
AV
AV 2013-08-15 Best Answer
SF
SF 2013-08-15

thats why I want to model or engrave it the texturing doesnt really work as an engraving or relief you can tell its fake sort of ruins the whole purpose. I want it so when I render it in keyshot the engraving will be different shinner material more clear so it santds out

CD
CD 2013-08-16

ZSurf4 (free) can create an igs surface from a greyscale bitmap.

http://www.cadstudio.cz/dl_file.asp?ID=1129

You usually have to spend some time modifying the image, since you really want a heightmap and most photos don't work all that well.

I took your image and modified it. Try this in ZSurf:

comment imagecomment image
KM
KM 2013-08-16

hei'ya H, try this, maybe you can use some bits - kelef

SF
SF 2013-08-16

that is pretty decent i will give this program a shot maybe the answer I have been looking for

SF
SF 2013-08-16

that is fairly decent but I dont want it to be extruce I want it to be not flat or an engraving sort of effect on the helmet

JB
JB 2013-08-16

Andi, you're probably going to run into problems taking the model generated from your image and wrapping it onto the existing curvature of your helment

You might look to Rhino for doing this kind of operation.

SF
SF 2013-08-16

I can probably scale it it around or bend it a little and import it in soldiwroks as assembly. I have rhino 3d but it can not hangle sculptures and reliefs maybe tsplines can do it but it would be the same as using spline modeling in solidwroks. I just want to get a fairly decent metalic render of the lion in the helmet. Z brush would be perfect for this but I dont know how to use it

CD
CD 2013-08-16

OK, here's a SW file with a curved and a flat version. You can set the curvature in ZSurf

I also included the IGS files from ZSurf and the BMP is used in ZSurf

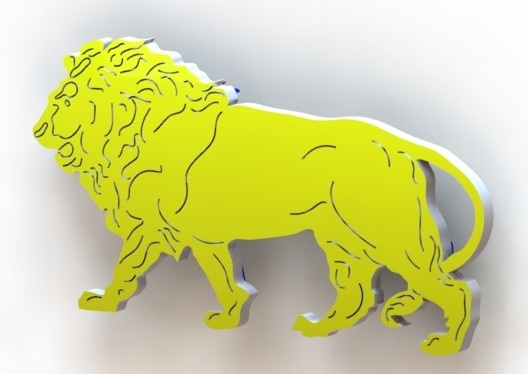

comment imagecomment image
CD
CD 2013-08-16

There is something happening in the flat version on the paws and tail. I don't have time to trouble shoot that right now. You could modify the bitmap a bit in those areas to see if you can get it to go away.

SF
SF 2013-08-16

thanx a lot mate

SF
SF 2013-08-16

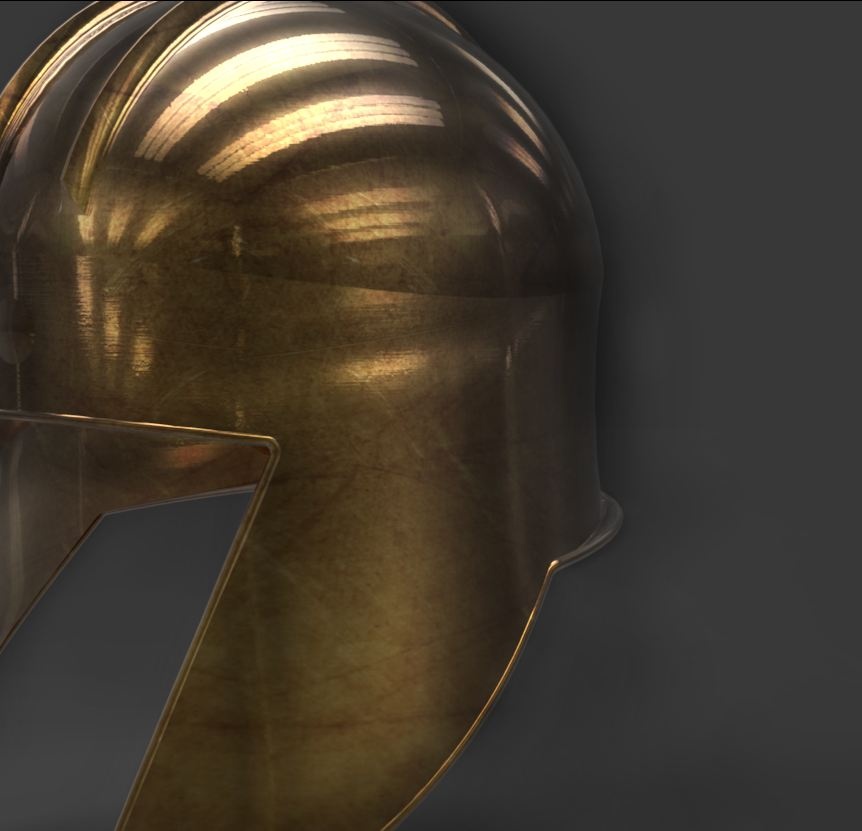

I will try this to render with the helmet I will show preview here how it came out. this is test render of full helmet two lions will go right in forehead. I went and got Zbrush so hopeful I will get a better quality mesh when I do a image based embos if I can figure it out
