Next view label in api

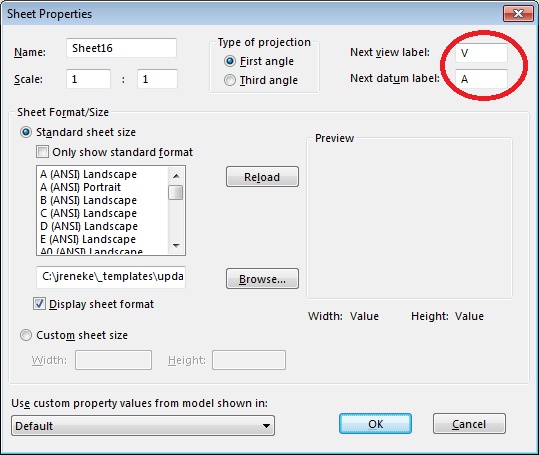

I'm writing a macro to create a drawing document with several detail views and section views. I'd like the macro to automatically assign the next view label to any created view, much like the normal user interface does. The information I need is available in the "Sheet Properties" (on sheet RMB -> Properties) window shown below. Does anyone know how to retrieve the "Next view label"?

I've gotten CreateSectionViewAt5 to automatically assign the next view label by passing "Nothing" to the SectionLabel argument. In VB.NET, my code looks like:

sectionView = swDrawing.CreateSectionViewAt5(0, 0, 0, Nothing, SwConst.swCreateSectionViewAtOptions_e.swCreateSectionView_DisplaySurfaceCut, Nothing, 0)

If the "Next view label" in the Sheet Properties window was V, then this code creates a view named "Section View V-V".

CreateDetailViewAt3 doesn't have the same behavior. Passing "Nothing" or an empty string simply creates a detail view named "Detail View ".

detailView = swDrawing.CreateDetailViewAt3(0, 0, 0, SwConst.swDetViewStyle_e.swDetViewSTANDARD, 4, 1, Nothing, SwConst.swDetCircleShowType_e.swDetCircleCIRCLE, True)

I could simply add a user input for each detail view, but that's fairly clunky. Any insight on the problem would be helpful.

SolidworksApi macros
Answers 1
SF
SF 2014-10-21 Best Answer

I can not find a property in the view object that returns the label name, but IMHO it is possible to parse it from the view name.

A label is just a string, usually from A to Z, but also "qwe asd" is possible. Furthermore it is possible that "B" and "C" is used and "A" is not used in the drawing.

So I suggest to retrieve all label names and search for an unused name. See the code below

Andreas.

Option Explicit

Sub Main()
  Dim swApp  As SldWorks.SldWorks
  Dim Temp, i As Long
  Dim AllLabels As String

  'Get all labels
  Set swApp = Application.SldWorks
  Temp = GetLabels(swApp.ActiveDoc)
  'Show them
  For i = LBound(Temp) To UBound(Temp)
    Debug.Print "Label: " & Temp(i)
  Next

  'All labels in one string with delimiters
  AllLabels = "," & Join(Temp, ",") & ","
  'Search all from A to Z
  For i = Asc("A") To Asc("Z")
    If InStr(1, AllLabels, "," & Chr(i) & ",", vbTextCompare) = 0 Then
      Debug.Print "Next view label: " & Chr(i)
      Exit For
    End If
  Next
End Sub

Function GetLabels(ByVal swDraw As SldWorks.DrawingDoc, Optional ByRef Count As Long) As Variant
  'Return a sorted array with all view labels in this drawing
  Dim swView As SldWorks.View
  Dim i As Long, j As Long
  Dim Temp, Labels
  'Assume failure
  Labels = Array()
  Count = 0
  If swDraw Is Nothing Then GoTo ExitPoint
  Set swView = swDraw.GetFirstView
  If swView Is Nothing Then GoTo ExitPoint
  ReDim Labels(1 To swDraw.GetViewCount)
  Do While Not swView Is Nothing
  'Section view?
    If swView.Type = swDrawingViewTypes_e.swDrawingSectionView Then
      'Remove the first word
      Temp = Mid(swView.GetName2, InStr(swView.GetName2, " ") + 1)
      'Store the view label
      Count = Count + 1
      Labels(Count) = Split(Temp, "-")(0)
    End If
    Set swView = swView.GetNextView
  Loop
  If Count = 0 Then GoTo ExitPoint
  'Remove empty slots
  ReDim Preserve Labels(1 To Count)
  If Count = 1 Then GoTo ExitPoint
  'Sort the array
  For i = LBound(Labels) + 1 To UBound(Labels)
    Temp = Labels(i)
    For j = i - 1 To LBound(Labels) Step -1
      If Labels(j) <= Temp Then Exit For
      Labels(j + 1) = Labels(j)
    Next
    Labels(j + 1) = Temp
  Next
ExitPoint:
  GetLabels = Labels
End Function
