Mold design

Hello,

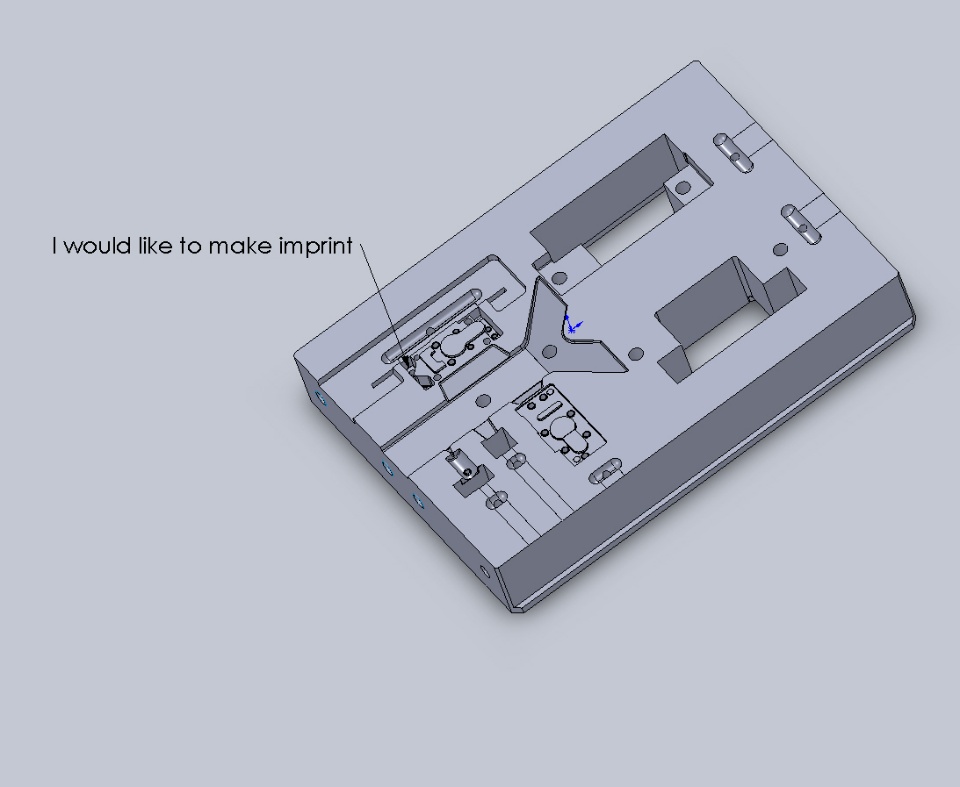

I have pressform for mold design of aluminium details. I would like to make an imprint in order to make elektrode.

Can anybody help me?

Thanks in advance.

SolidworksPlastics And Mold Design
Answers 11
DG
DG 2010-08-05 Best Answer

Use offset surface with 0 value and get the internal surface. Knit them to make solid and finally model your electrode

OR

Extrude a block (don't merge and create a separate body) and use subtract option in the combine feature (Insert > Combine). Subtract the press form from the extruded block.

SF
SF 2010-08-05

Thanks a lot Deepak.

SF
SF 2010-08-05

Can I use offset surfaces with 0 value, knet them to make solid instead of mold tools (parting lines, shut-off surfaces, cavity)?

Which method is better?

Thanks in advance.

DG
DG 2010-08-06

You looking for making a electrode and not mold, so you can use either of the methods I have suggested and not the mold tools.

SF
SF 2010-08-06

I mean, but I can use methods that you have suggested for mold?

I mean it is more difficult to use mold tools?

What do you mean is better for mold?

DG
DG 2010-08-06

Mold tools are easy to use but yes sometimes you might need to take addtional helps of other tools like solids/ surfaces, etc. You can also use the methods I have suggested for making molds.

SF
SF 2010-08-06

Thanks for information Deepak.

LB
LB 2010-08-06

you can also use the cavity tool in assemblies...works great. was the only way to do it before the combine tool. insert new part, extrude block and then use the cavity feature, then do any mods that are need to refine the trode.

GB
GB 2010-08-08

Why don't you try our ElectrodeWorks which automates the whole process and also allows you to use both cavity methods and surface knit methods to create electrodes, whichever is suitable.
