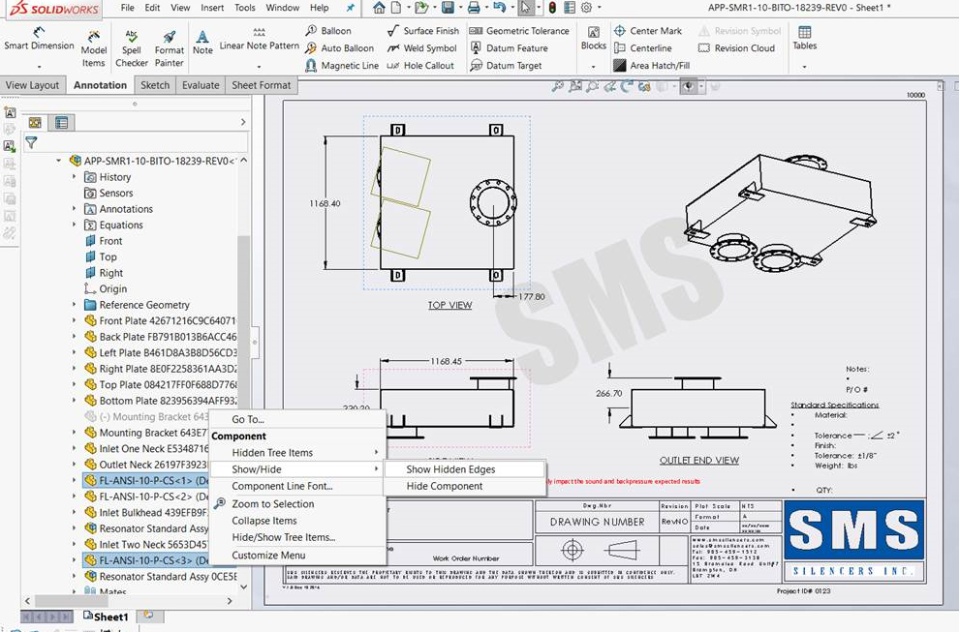

I am trying to make a macro which will be able to make a selected Drawing View hidden component to show hidden edges (Solidworks Snip below).
I have managed to select the required component "FL-ANSI-10-P-CS-1" with the macro shown below, but my problem is that the line: "swDrawComp.View.SetDisplayMode3 False, swDisplayMode_e.swHIDDEN_GREYED, True, False"
is equivalent to the click of the "Hidden Lines Visible" in a Solidworks drawing for the whole selected view and not only for one required component "FL-ANSI-10-P-CS-1", which I select with the line:
"swDrawComp.Select True, Nothing"
Thank you in advance,
I will appreciate any ideas or thoughts...
Option Explicit
Sub main()
Dim swApp As SldWorks.SldWorks
Dim swModel As SldWorks.ModelDoc2
Dim swDraw As SldWorks.DrawingDoc
Dim swSelMgr As SldWorks.SelectionMgr
Dim swSelData As SldWorks.SelectData
Dim swModelDocExt As SldWorks.ModelDocExtension
Dim swView As SldWorks.View
Dim swRootDrawComp As SldWorks.DrawingComponent
Dim vDrawChildCompArr As Variant
Dim vDrawChildComp As Variant
Dim swDrawComp As SldWorks.DrawingComponent
Dim swComp As SldWorks.Component2
Dim swCompModel As SldWorks.ModelDoc2
Dim status As Boolean
Dim strCompToShowName As String
Set swApp = Application.SldWorks
Set swModel = swApp.ActiveDoc
Set swDraw = swModel
Set swModelDocExt = swModel.Extension
Set swSelMgr = swModel.SelectionManager
Set swSelData = swSelMgr.CreateSelectData
swDraw.ActivateView ("DrawingTopView")
status = swModelDocExt.SelectByID2("DrawingTopView", "DRAWINGVIEW", 0.104008832128, 0.1163870710783, 0, False, 0, Nothing, 0)
Set swView = swSelMgr.GetSelectedObject6(1, -1)
Set swRootDrawComp = swView.RootDrawingComponent
vDrawChildCompArr = swRootDrawComp.GetChildren
For Each vDrawChildComp In vDrawChildCompArr
Set swDrawComp = vDrawChildComp
Set swComp = swDrawComp.Component
strCompToShowName = swComp.Name2
If strCompToShowName = "FL-ANSI-10-P-CS-1" Then
swDrawComp.Select True, Nothing
swDrawComp.View.SetDisplayMode3 False, swDisplayMode_e.swHIDDEN_GREYED, True, False
Else
End If
Next
End Sub
