Lining up Dimensions Snap

Where is the setting when you add a dimension on your drawing that allows you

to snap in line with an adjacent dimension?

SolidworksDrawings And Detailing
Answers 22
GH
GH 2010-09-15 Best Answer

i would like to know this too. it works for dims that are horizontal, but not when placed at an angle.

Scott, hope you dont mind me adding to your post?

DG
DG 2010-09-15

Any chance if you asking for aligning them. If yes, then select the dimensions, right click and then choose the appropriate Align option.

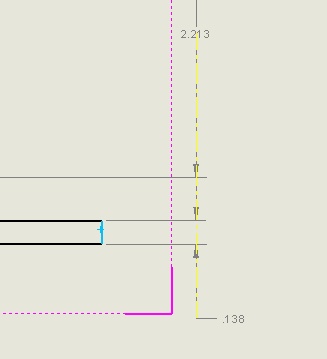

Also when you're placing a dimension, you should be able to see a auto snap in line with an adjacent dimension (yellow in color)

SM
SM 2010-09-15

Greg,

Not at all !!!!

That is what this portal is here, right?

I have had this snap in the past, but now it doesn't.  So there has to be a setting somewhere I would think.

I have changed systems and versions so I would like this setting back again.

SM
SM 2010-09-15

The auto align is what I used to get, but am not getting now.

That is what I am wondering where that toggle is to turn on and off.

This auto align is is not specific to added dimensions versus driven dimensions is it?

SM
SM 2010-09-15

Deepak,

You are using 2009 right?

that align option you are talking about is not there in 2010.  When I RC

the only option I see is align to edge.  Not what you are showing in your pic.

GH
GH 2010-09-15

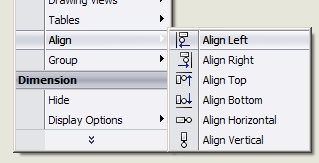

to get what deepak shows you have to ctrl two or more dims then right click.

DG
DG 2010-09-15

Auto align works for both types of dimensions. And to get the align option, you need to select more than one dimension.

SF
SF 2010-09-15

I believe you are looking for either Offset distances or Grid

comment imagecomment imagecomment imagecomment image
GH
GH 2010-09-15

Scott, one thing i have noticed is you have to be able to see both dims on screen for auto align to work. even if you can see the dim line it is no good, you must be able to see the actual "size".

SM
SM 2010-09-15

No, because I already have offset distances set

and I never use a grid and I have been in the past able

to drag a dimension and it would snap seeing the yellow line Deepak mentioned.

Maybe this functionality went away for 2010, but after saying that my system at home

works that way and that is like a home edition really watered down.

So, I don't know.

SM
SM 2010-09-15

Cool, thank you.  I didn't think it would matter, but I had to ask.

SM
SM 2010-09-15

Thanks Greg.

The menu showed up once I used the control key.

And I did notice and it kind of makes sense that both dims have to be in view.

I just want back what Deepak showed with the yellow snap line.

I think that is what you are lookling for as well.

GH
GH 2010-09-15

Scott, i do get the yellow snap line, but only in horizontal and vertically placed dims. i also want it on angled placed dims.

i am on 2010 sp4

SM
SM 2010-09-15

See, I'm not.

That is why I am thinking there must be a setting somewhere turning it on/off.

And I am using 2010 SP 4 as well.

What you want for angled dimensions and not getting I am getting for vertical and horizontal as well as angled.

SF
SF 2010-09-15

Ahhh, 2010, thasts makes a difference now.

I'm running 2009 SP5.1 yet.  Nevermind.

GH
GH 2010-09-15

Scott, could you post a part and drawing, so i can test? i want to see if it is a setting thats been changed in your template, or if it is a system problem.

you can email if you would rather?

PS, did you find a new job?

JF
JF 2010-09-15

maybe this setting? (disable note/dimension inference)

comment imagecomment image
SM
SM 2010-09-15

Jeremy, that's it !!!!

Thank you.

SM
SM 2010-09-15

Jeremy found it.  Haven't tried it with angular dimensions.

But it gave me what I was looking for with the yellow snap line.

Yes, I did find a new job.  It is a 2.5 hour commute, but the upside of the job is

huge.  I place that offers engineering services either on location at their

office or on the customer sight.  I have a very good chance of working at Corning Glass.

But I have benefits now which I didn't before.

I stay in town an commute back home for the weekend.  Depending on how this works out

I may have to move the family here.  Nice area here.

Thank you so much for asking!!!

SF
SF 2011-11-02

Could you send me the png file of your answer? I cant see it here on the forum for some reason.

thank you

KL
KL 2011-11-02

Jeff,

The Disable note/dimension inference option is at Tools > Options > System Options > Drawings

SM
SM 2011-11-02

They are not showing up for me as well.

Not sure why.
