Limit Mate under 1.00"

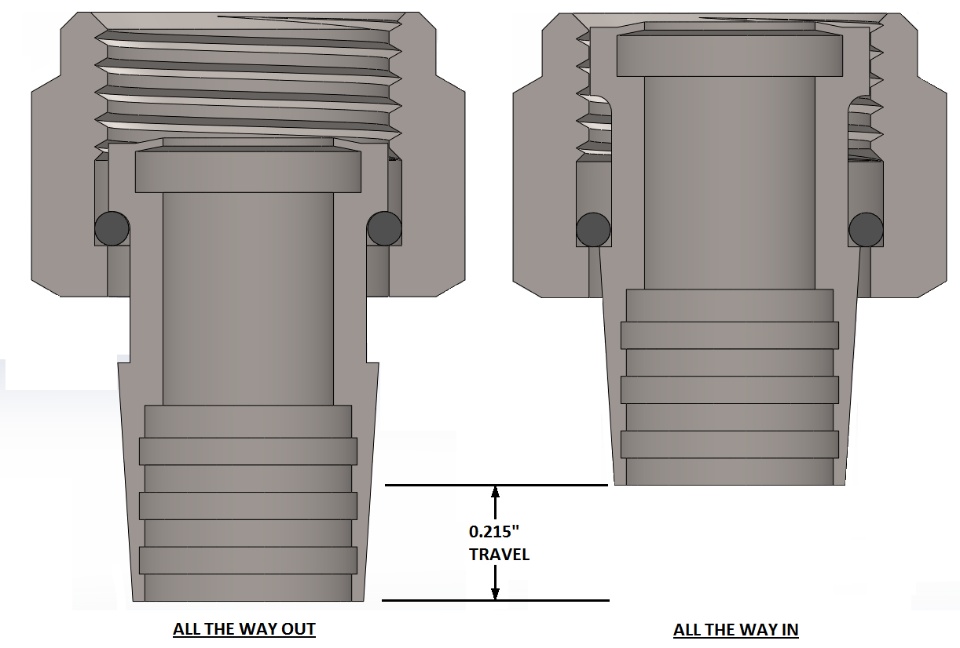

I am making an assembly of tube fitting but I am having trouble trying to limit the range of motion on the fitting end.  The maximum travel distance is .215" between the edge of the pin and the floating fitting end. I've attached a picture that should make things pretty clear.  Any ideas on how I can accomplish this?

Thanks in advance for all of your help!!!

Chris

SolidworksAssemblies
Answers 8
GS
GS 2012-07-21 Best Answer

Christopher,

I don't use Limit Mates very often, but can't you just set up a Limit Mate with your floating fitting and another part?

CE
CE 2012-07-21

Thanks a million Glenn.  You gave me an idea!!!  I just created a plane above the part and used that to set my limit dimensions off of.  You could do the same thing with another part as well.

Thanks,

Chris

GS
GS 2012-07-21

I'm glad you got it to work.  Don't forget to mark the question as answered so other people won't see it and think you still need help.

CE
CE 2012-07-23

I know this will work but is there any other way to do this other than mating it to a reference plane?

My question to the developers of SolidWorks is, why is the limit mate limited to 1.00 min on the travel?

GS
GS 2012-07-23

You can mate the part to a face, plane, etc. of another part, and the limit isn't 1", here is one with 1/2" total travel.

comment imagecomment image
CE
CE 2012-07-23

I apologize...I was apparently picking the wrong surface when doing the mate so it wouldn't let me go less than an inch.  I've got it working now.  I will take more time to check everything then double check it before I post next time.

Thanks for all your help once again Glenn!!!

Chris

JF
JF 2012-07-23

likely your issue was not the surface you picked, but rather the parts starting position. when you enter the values into the mate properties, ALL of the values must be valid. so if the current distance is 1.125", you can't set the maximum to be less than 1.125", until you change the current distance to a lower number.

CE
CE 2012-07-23

That is exactly what happened.  I should have known better than to think the fine developers would make the limit distnace min 1.00".....that's just absurd!!!   Thanks again for all your help fellas!!!

Chris
