I'm using 2015 SP4.0

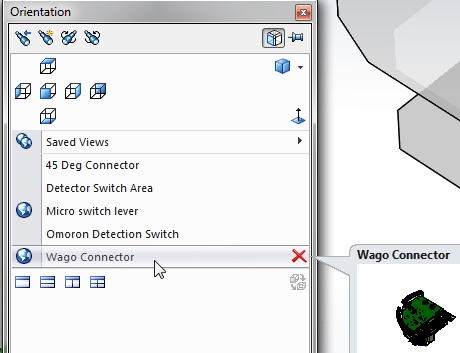

1) I’ve saved (called Wago Connector) a sectioned view of the original assembly:

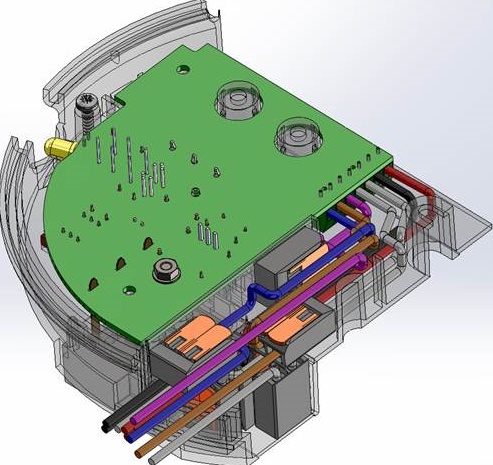

2) that looks like this:

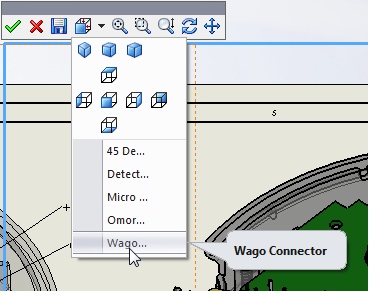

3) When I return to drawing and insert a view, I click on 3D Drawing View

3)which will give me this:

4) After I select the saved isometric sectioned view named Wago Connector, I should expect to see the same image as in step 2 but nothing happens.

Some have mentioned to use configurations to create the cut-away then call it into the drawing but I don't want to use this method.
