Could use some help, getting frustrated and wasting time trying to figure this out. However it will save me an absolute ton of time if I can figure this out. Tried to lay everything out in a somewhat logical fashion.

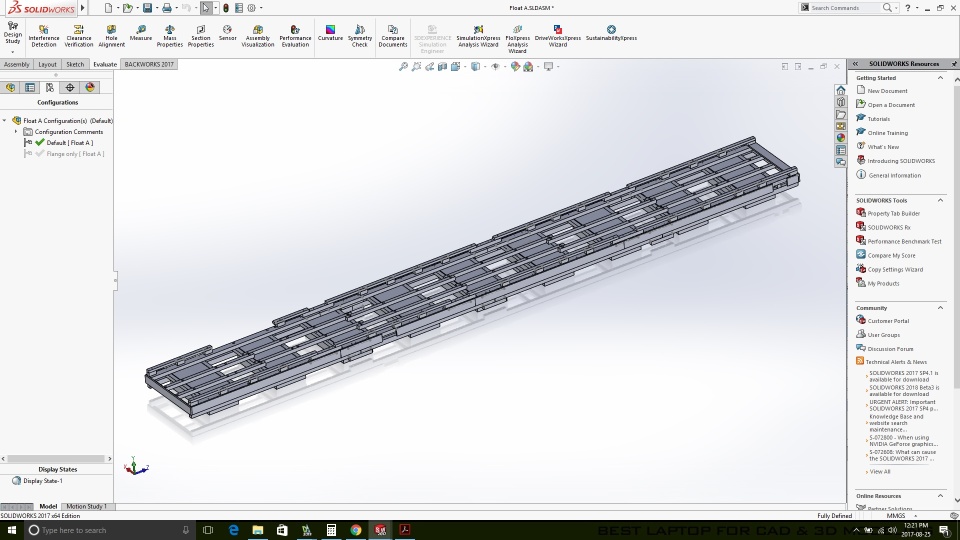

See Full Assembly picture:an
This is my assembly I have made, my next step is making some for construction drawings for the float. I would like to start from the bottom up and lay out where each piece goes.

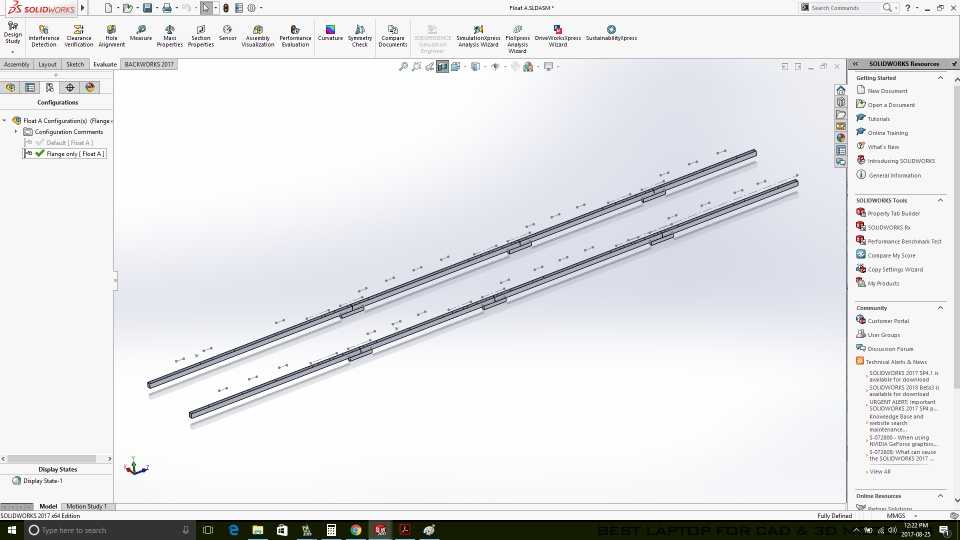

See Section View in assembly picture:
I created a new configuration (as per some suggestions I found via google on this forum) and even tried the "exclude these parts" option when you go to save the config.
issue 1) It didnt exclude them from the BOM
issue 2) It shows the assembly from the back end, not the side. I would like to show from the side - much more information.

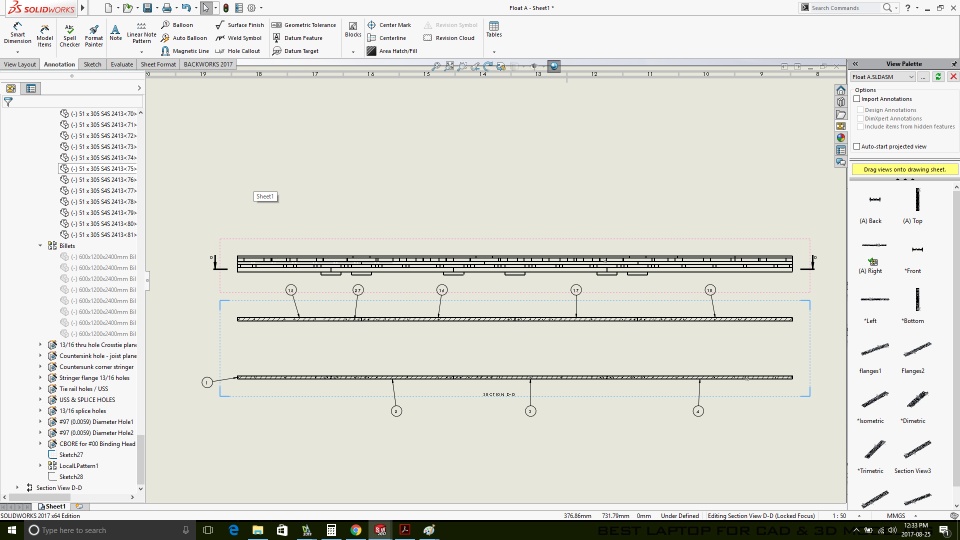

See "what I want to make" picture:
This is the layout I would like, with the objects ballooned on the BOM only. then I want to work up the assembly and add in each layer and exclude the pieces I have already added. I suppose I could just go through each line in the BOM and remove it. I would have hoped there was a way to make a "BOM from Ballooned" or something.
Any insight to help make my workflow faster is appreciated.
SolidworksDrawings And Detailing
Create configurations (as many as needed to show the sequence of assembly).
Create views and link each to desired configuration.
It looks like instead of suppressed, unwonted parts are hided. Hided parts are included in a BOM, suppressed not.
Oh man I hope its that simple! Will give that a go and report back.
If I supress parts it appears to break the assembly - plus there is no easy way to select the parts I want vs parts I dont want. I have to hunt through my list and hope I get them all. In 2017 anyway I cant select all and then just shift or ctrl or ctrl+shift a part to remove it...
So this may work or may not work but its not really what I am looking for, I just want to be able to cut the assembly and BOM the layer shown.
To suppress/ unsuppress select parts in Feature Manager Design Thee:
It not moves the part you selected.
Creating section not removes any part from the BOM.
PS
Create a very simple testing assembly to work out the technique with...
...thanks... I know how to suppress parts.
anyway, Think I figured out a way to do it, involves a few steps and a bit of trickery on the drawing page but its a step closer anyway.
