How to replace parts / assemblies in drawing?

Hi,

I m trying to find a way to change / replace the part in a drawing view on a separate sheet in the same drawing file.

E.g.

Sheet 1 = Assembly drawings.

Sheet 2 = Part drawings.

I have already created Sheet 1 with all the information in the drawings, now I copied the Sheet 1 and created Sheet 2 with all the 'Sheet 1' information in it. All I would like to do now is replace the drawing view 'Assembly Model' to 'Part Model' on Sheet 2. Is it possible?

Is there an easier way to replicate sheets, by coping the same sheet in the same drawing file and replacing the parts in new sheets?

Any help would be appreciated..

Cheers,

Deep

SolidworksDrawings And Detailing
Answers 14
PM
PM 2012-02-07 Best Answer

Click on the browse button in the view palette to choose another part file

In the dropdown you will be able to switch between the parts to drag in views.

comment imagecomment image
SF
SF 2012-02-07

In that case, I have to delete the existing views and create them again, not replacing them with the existing.

PM
PM 2012-02-07

Yes I'm quite sure you cannot replace a fully dimensioned drawing view like that.

KR
KR 2012-02-07

I think this should be a feature request.

There is a way to do it tho, but it's roundabout.

Save the existing drawing as a new file in a new location. Move the original part (cut and paste) to your desktop. When you open the new drawing, it wi ll try to find the part. Point it to the new part. Then copy new drawing and new part where you want it.

Quite a lot of steps to do something I think we should be able to do in the first place.

SF
SF 2012-02-07

Yes, that will only be an alternative to replacing the complete model in the drawing file but not replacing the model from different sheets in the same drawing file.????

Check:

Drawing File : ABCD

Sheet 1 : Model A

Sheet 2: Model A

Sheet 3: Model A

Replacement:

Drawing File: ABCD

Sheet 1: Model A

Sheet 2: Model B

Sheet 3: Model C

Try replacing the models by changing references...surely you cannot replace 'models as per sheets' in the same file like references in a 'copied file'..?? any other suggestions??

KR
KR 2012-02-08

No. UInfortunately that cannot be done.

SF
SF 2012-04-25

The easiest way I have found is to choose the file open option and browse out to the sldrw. Pick the file. Before opening it, choose the references option. double click on the part name of each part in the file and replace the existing file with the new file.

SF
SF 2012-05-04

I know you can use the solidworks explorer to replace the models which are referenced in the drawing by going under the references tab once you locate your file in the explorer.

So you could copy your whole file and then replace the references in the new file.  You would then have two sheets with different parts but not in the same file.  Will solidworks let you copy the sheet over into one of the two files?  I've never tried it, but they must have some way to combine sheets from multiple files into one.

Maybe there is some way to do it in the solidworks explorer.  It works fairly well from the few times I've had to do it.

comment imagecomment image
LB
LB 2012-05-04

There are a couple of ways, teach this to the students.

One is how Paul said above and 2 is when the students don't follow dirrection and did all their work in single drawings.

if you select the view and control C the go to the new drawing and control V it copies the view and the dims....done.

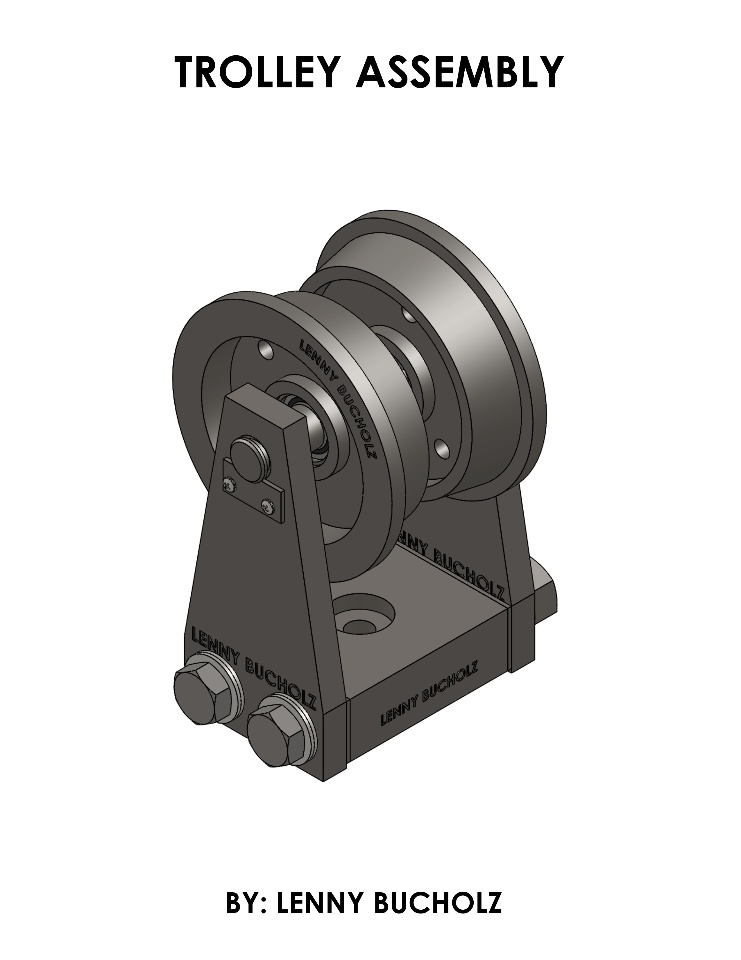

here is a pdf from my class, one drawing file 11 sheets with assembly and parts.

Message was edited by: Lenny Bucholz

name is on there to stop cheaters

comment imagecomment image
ET
ET 2016-06-09

I'm using SW 2016 here's how:

Key is to use SW explorer.

  1. Make a duplicate of your original files and hide them under another folder temporarily
  2. Rename your updated files (part and assembly) with the same name that were used in your drawing using SW explorer.
  3. Rename only your drawing file using SW explorer.
  4. Open the drawing using SW explorer - you should see all your parts and assembly updated with the new updates.
  5. Save your drawing and close.
  6. Now rename your part and assembly with the new name you want using SW explorer. - this is where SW explorer will do its job.
  7. Open your drawing now you should see the parts and assembly updated with the new names.
GR
GR 2017-02-08

Found a way to replace a part or an assembly in SW2016, but one view at the time... Open your ".drw" file, then go in the FeatureManager Design Tree. When you right click you have an option to "Replace Model". Select that, and you'll be prompted to select the replacing

part/assembly.

EDIT: After you get prompted, there is a check box to replace All Views. So you don't have to do one view at the time :-)

comment imagecomment image
GS
GS 2017-02-08

Hello Guillaume,

Yes, that works pretty well, but wasn't mentioned above because it was introduced with SW2014 (see here), so wasn't available in 2012 when most of this Discussion took place.

SC
SC 2017-02-08

In 2017 there is the ability to replace model for selected views:

Give that a shot.

comment imagecomment imagecomment imagecomment image
SP
SP 2017-02-08

Personally I don't think it is a good idea to have different parts in one drawing.

Why don't you create display states or configurations in assembly to achieve your goal on drawings.
