Hi Guys,

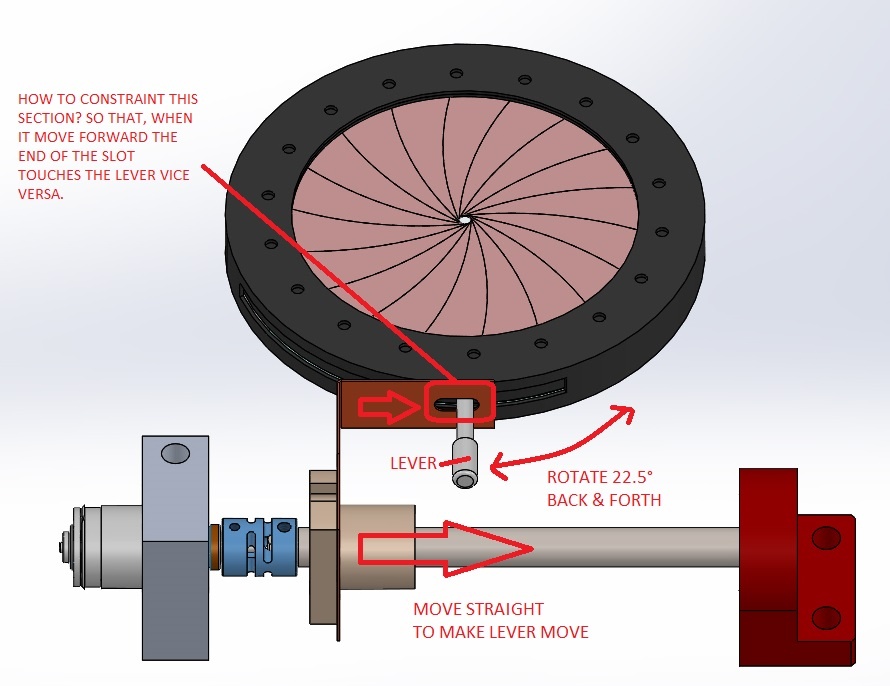

I did an assembly and applied constrained angle on rotation on the lever. Now, my problem is. I do not know how to constraint the slotted plate and the Lever. So that, when the lead screw assembly moves forward the other side of the slot on the plate touches the Lever and then will move up to the angle given which is 22.5°.

If I may ask for kind help. Could anybody assist me on how to do it. Appreciate it much.

Thank you & Regards,

Willie

Solidworks 2019 STD
