How do I import a PDF into SolidWorks drawing 2016, keep getting errors.

I've researched it, and it seems like this question has been asked in the past and has not been answered.  Here -   and here -   - so I'm trying to see if there's anyone out there that can answer the question.  I have many drawings to do for work that requires that I put vendor drawings on our title block that are PDFs and I want to use the Insert >Object command but it seems like the only solution I know about that will work will be to convert all these 17 drawings I have to do is to convert them to JPEGS and then insert them as Tools >Sketch Picture, is that right?

I don't have Adobe Illustrator or anything else that is outside of MS Office.  I just have the basics.  This also goes for Adobe Reader.

Please advise.

Thank you,

Barbara

SolidworksDrawings And Detailing
Answers 7
MM
MM 2016-10-24 Best Answer

Insert>Object>Create from File, then browsing to the PDF works for me

EK
EK 2016-10-24

Hi,

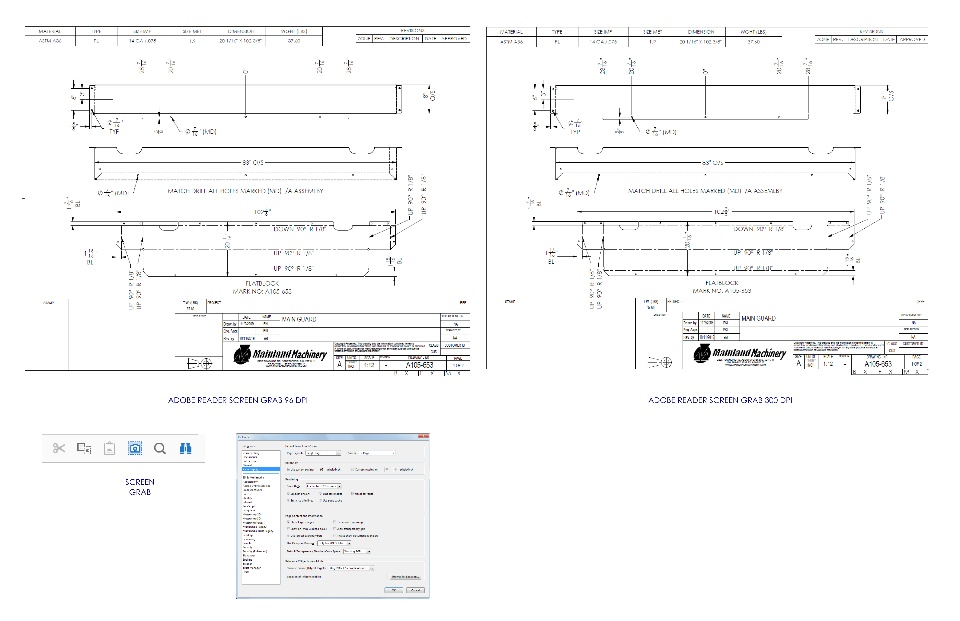

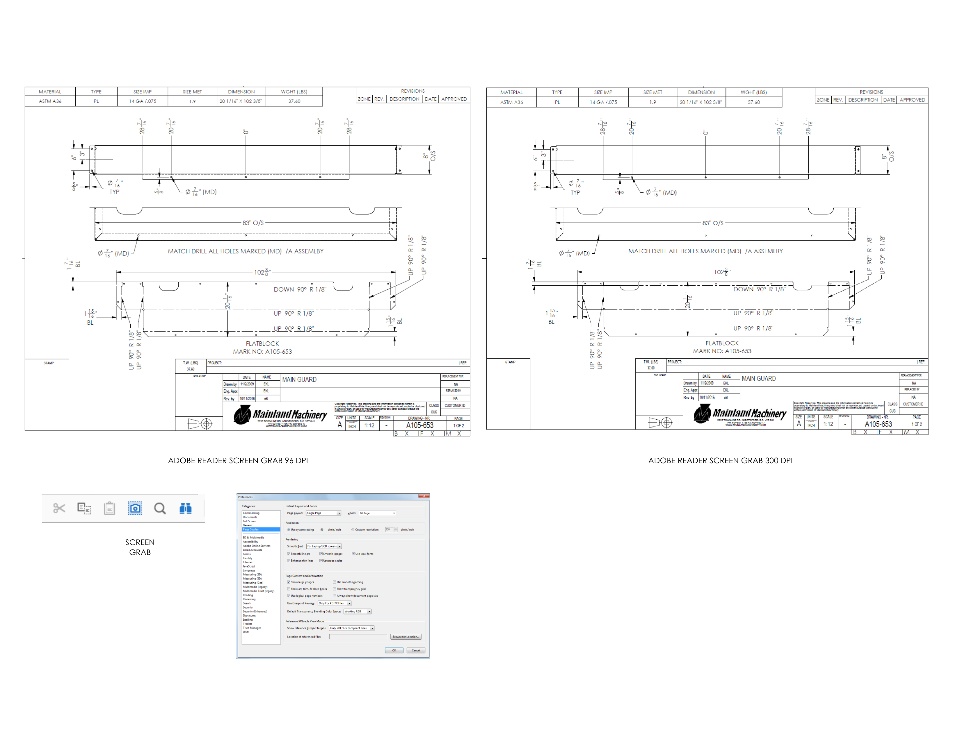

Simply copy paste a screen shot....this is the fastest. You can use MS snippet or Reader snap shot tool...both come standard.

Inserting pdf's as objects behaves temperamental (unpredictable) so I would not suggest that route.

The image resolution doesn't seem to vary too much from either copy paste option. Quality depends more on original screen resolution.

BB
BB 2016-10-24

Hello Elmar,

Great!  I will try those options.  Thank you for your response.  I was having trouble with the JPG option just now and trying to import using  Tools > Sketch Tools > Sketch Picture and then trying to import the JPG.  It wouldn't let me import the JPG, giving me errors.

So, I appreciate your response.

Much appreciated.

Barbara

BB
BB 2016-10-24

Hello Mike,

I tried that, but it didn't work for me.  Somehow it gave me errors.

But, I'm glad that it works for you!

Thanks for your response.

Barbara

DG
DG 2016-10-24

Open the picture in paint, do ctrl+c (copy) and then click in the drawing and do ctrl + v (paste)

BB
BB 2016-10-24

Hello Deepak,

Great!  I'll try that.

Thank you!

Barbara

VU
VU 2016-10-24

Try to import .bmp file. It works much better.
