How can I link a part's specific sketch dimension on a drawing? (custom property)

Hello everyone,

I have an assembly which has a subassembly also. And in that subassembly, I want to take a part's sketch dimension to the drawing of main assembly.

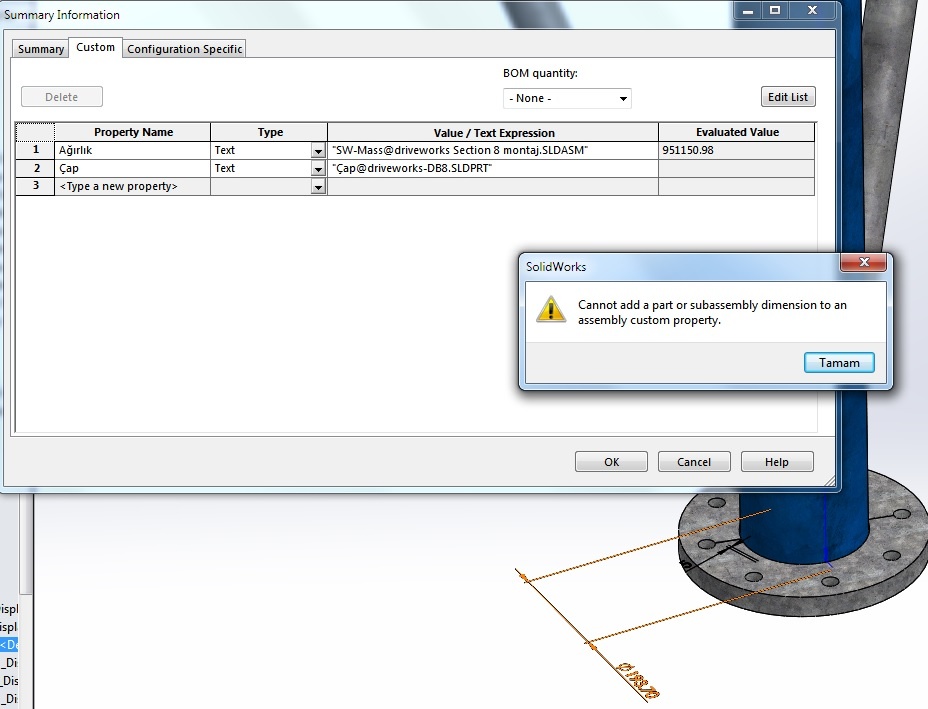

When I am trying to make custom property from main assembly, It gives me an error.

SolidworksDrawings And Detailing
Answers 8
DG
DG 2014-04-25 Best Answer

Create an equation and link that to the dimension you want. Then link the custom property to that equation

AR
AR 2014-04-25

Thank you. Should I make custom property in drawing also to do this? I can't link property in drawing.

DP
DP 2014-04-25

Not required, use link to property option

comment imagecomment image
AR
AR 2014-04-25

Thank you. I asked this because, I can't find custom property I made in assembly to use in drawing section.

comment imagecomment image
DP
DP 2014-04-25

Hi Ama

just click "model in view to which the annotation is attached" , now you have selected current document, current document is your sheet property.

DG
DG 2014-04-25

Use any option other than "current document"

AR
AR 2014-04-25

Thank you very much. I figured it out.

Let me ask you another question. Can I take specific word in a sentence. For instance, "driveworks section 8 asm" in this sentence, I need to take the value of "driveworks" and "8".

I am asking this because, I need to make pack and go of this assembly too much time. And there are certain things I need to change. So I want to make notes in drawings can be adaptive to this changes. Right now, dimensions of parts are allright.

DG
DG 2014-04-25

Yes, you can achieve them via various vays:

1 Custom properties

2 Equations

3 Macro

search the forum and you would find similar examples.
