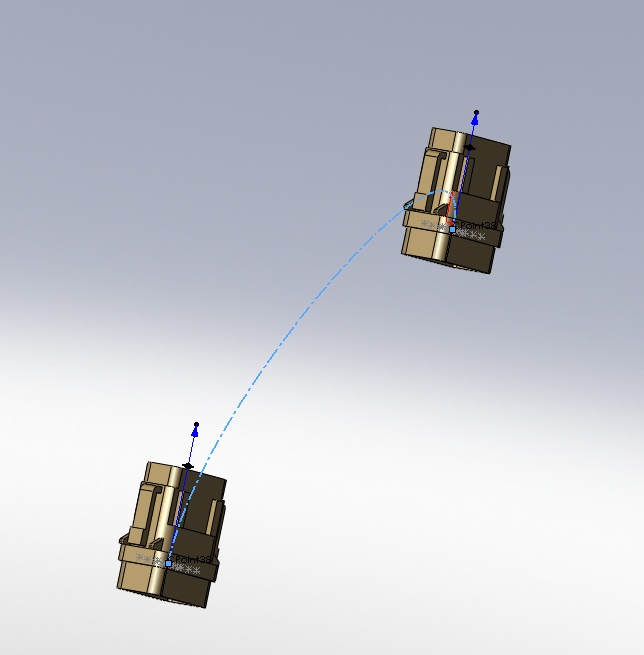

Hey I am trying to use a from to list to import route data, but I keep getting errors.  When I insert the connectors they are facing the opposite way of what I would like them to be, and I can't mate them to change the orientation or I lose the routing options from the from to list.  Is there a way to mate the connectors and still have the setup options from the from to list?

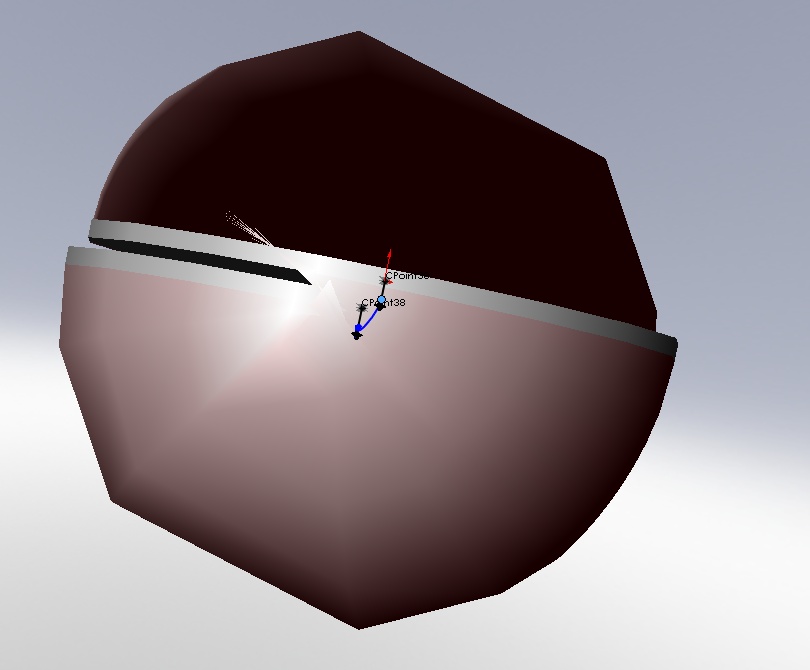

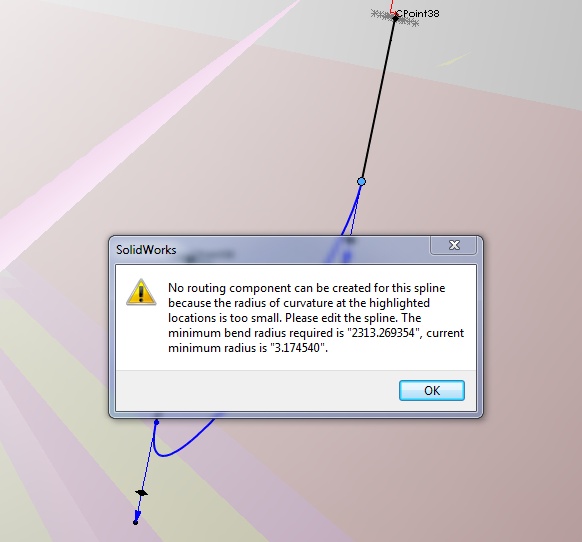

Also, when I try to go ahead and route with them facing the same direction, it gives me an error that the bend radius is to small, and then when I try to manually change the spline it turns into a flying saucer (see pics).  After that if I do auto route it goes all death star on me.

Any help would be appreciated,

Thanks

SolidworksRouting
Answers 3
SF
SF 2010-07-28 Best Answer

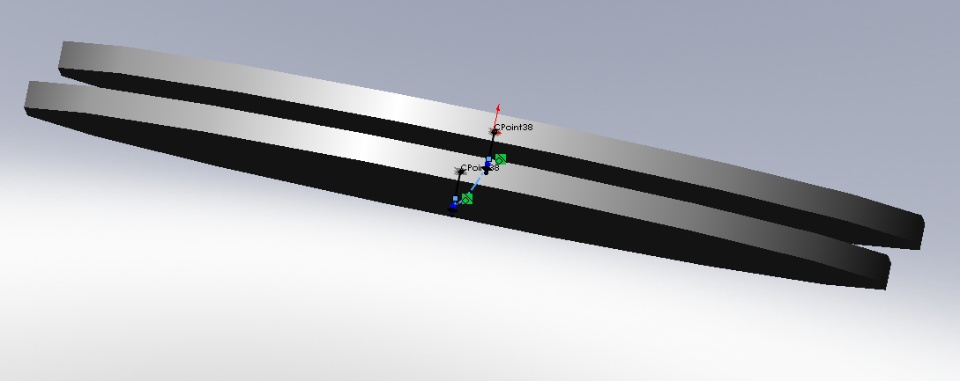

also when I go through the whole from to process and then mate the connectors after the route has been created so that it is just a straight shot between the connectors, all the error readings are resolved in the design tree, but it looks like the attached picture

SF
SF 2010-10-13

I think your wire diameter in your wire library is incorrect.  I believe the units are meters.  If you assumed them to be mm your wires will be 1000x too large, which is how they appear in the pic.

Good luck,

-Chris

SF
SF 2010-10-20

Yes, Chris is right.   All dimensions in the wire library need to be in metres.  Metres are the units SW uses internally.

Cheers

Andy
