Is it possible to show Foreshorten dimension on a detailed view of a cross section? Please help

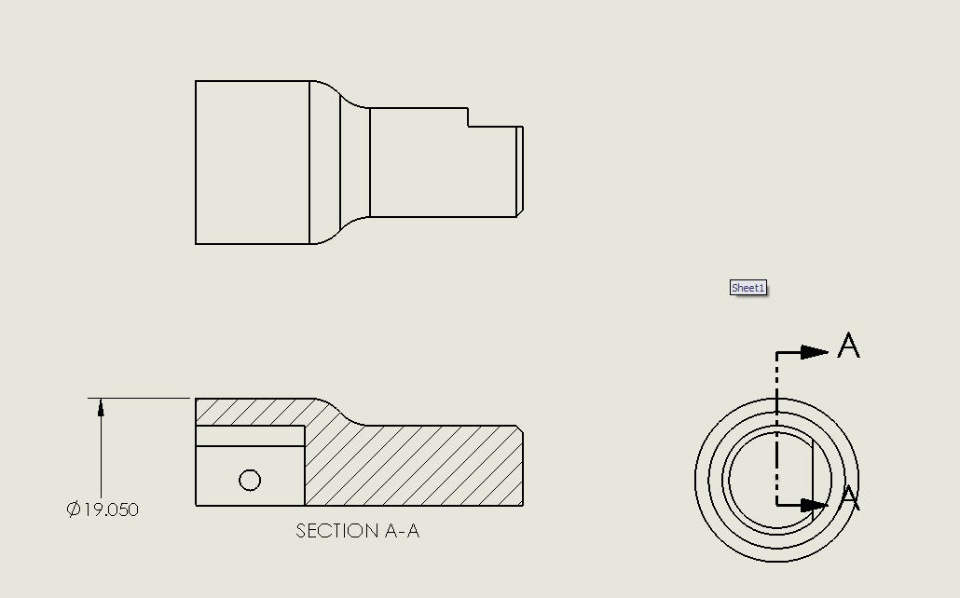

I can make it so it shows on a non-detailed cross section. Notice i would like to show the DIA. on the partial cross section.

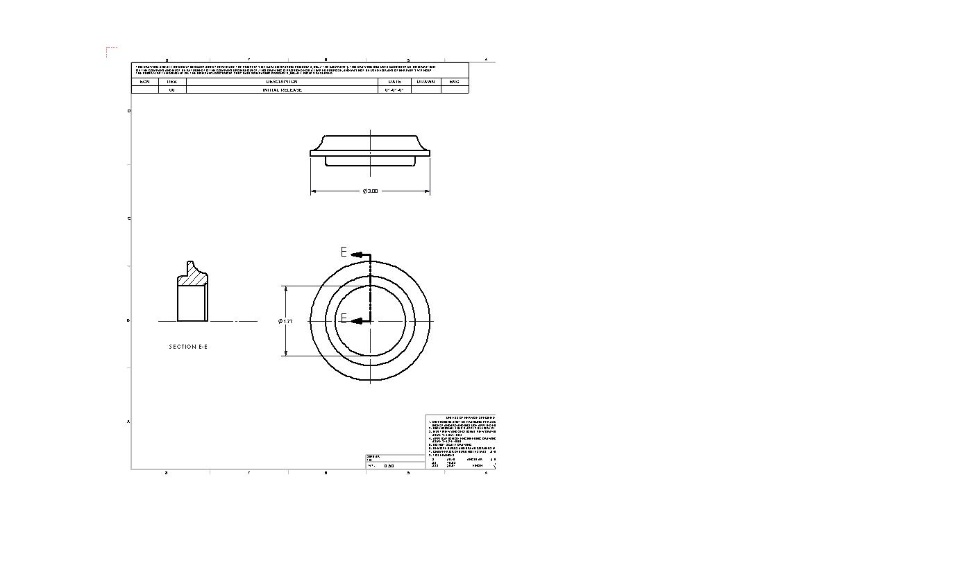

(the actual drawing i am working on is more complex the the example shown below)
