Finding Volumetric Flow Rate in an External Flow Simulation.

Hello,

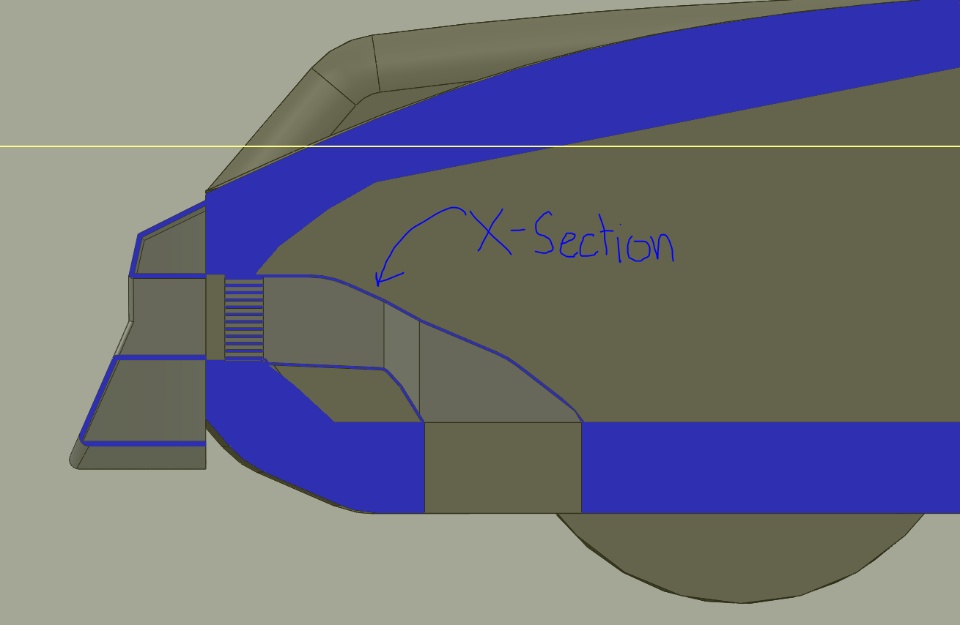

So I am currently doing a project for a class, and it involves modeling different bumpers to see how they affect the air flowing through an engine oil cooler on a porche 914. I have just started using Flow Simulation, and am having trouble choosing the right goals to find the air flow through the cooler. To describe my problem set up:

Testing Initial Conditions of 40 70 and 110 mph

External flow through Air at 293 K

Current Goals are Total Pressure and X component of normal force (drag)

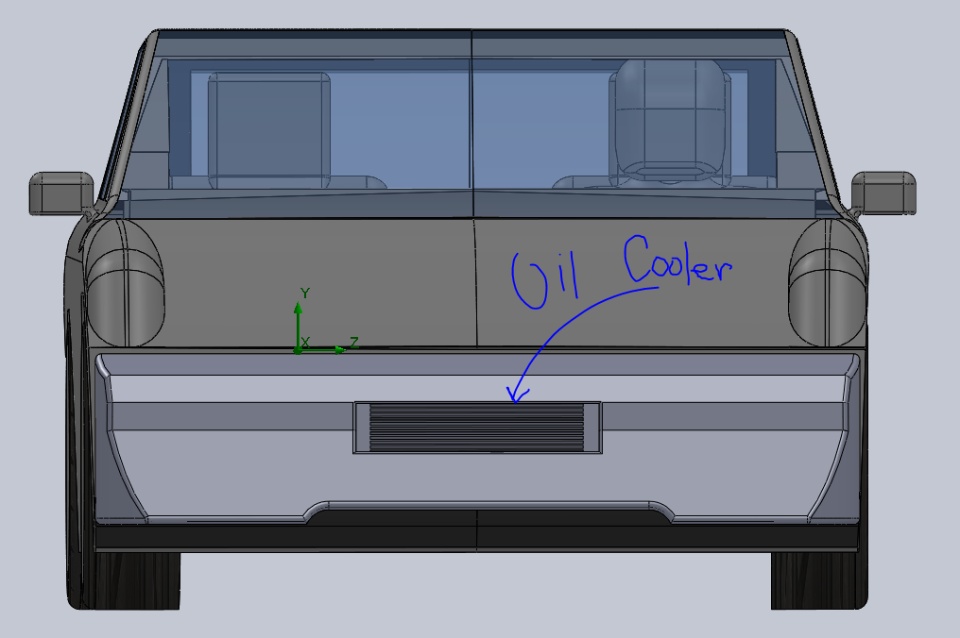

Pictures of assembly are attached.

I am assuming it is a surface goal, but I am not sure if I have to create a surface, like a lid used for the internal flow tutorials, that would not affect the air flowing through the cooler.

Any help would be appreciated!

Justin

SolidworksFlow Simulation
Answers 4
SF
SF 2010-04-28 Best Answer

YOU ARE ON THE RIGHT TRACK: PUT A SOLID BLOCK OR OTHER APPROPRIATE SHAP IN TH MODEL SO YOU GET A SURFACE WHERE YOU WANT. THEN USE COMPONENT CONTROL AND DISABLE IT. THEN ASSIGN A GOAL TO THE SURFACE. IT HAS TO BE A SOLID COMPONENT. ADD AS MANY "SENSORS" AS YOU LIKE. SORRY ABOUT THE ALL CAPS BUT MY IPHONE DOESN'T WORK THAT WELL WITH FORUMS STUFF TOO WELL.

SF
SF 2010-04-28

Thanks for the response!

I thought it was along those lines, but I am still having trouble finding this "component control" option. Could you please direct me on what toolbar/menu I could find it?

Thanks again.

Justin

SF
SF 2010-04-28

Hello,

Use the top bar to select the menu named 'Flow Simulation', and the Component Control is in the drop down.  Don't bother looking through all the Flow Sim icons.

Cheers,  Rich.

SF
SF 2010-04-28

you can also just right click on the top of the tree and customize the tree (bottom pick of the menu) and get component control to show up in the tree and other stuff as maybe appropriate.
