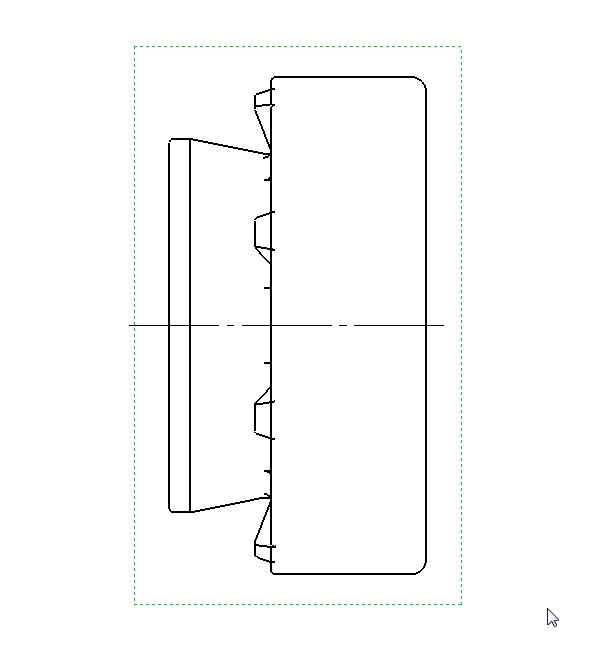

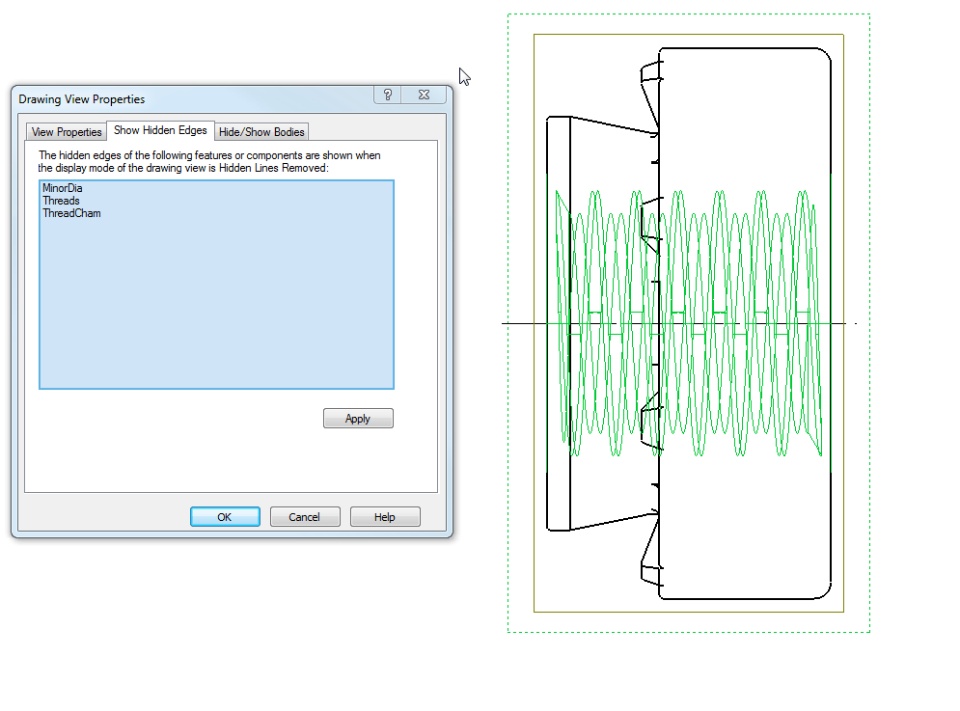

Maybe one of you can enlighten me as to why this is not working. I am trying to show some features as hidden lines in a view. I just want some features to show as hidden, not the entire part. I have selected these features that I want as hidden lines in the Drawing View Properties box under the "Show Hidden Edges" tab (see attached JPEG). I hit Apply then OK. The view does not have the hidden lines like I wanted. The display style for this view is set at "Hidden Lines Removed". What might I be doing wrong here? Thanks in advance...
FYI, I am using SolidWorks Premium 2011 x64 SP 5.0
