Dimension line extends?

Can anyone explain why the dim line extends?  Is there a setting to turn this fearure off so the line never extends past the extension lines?

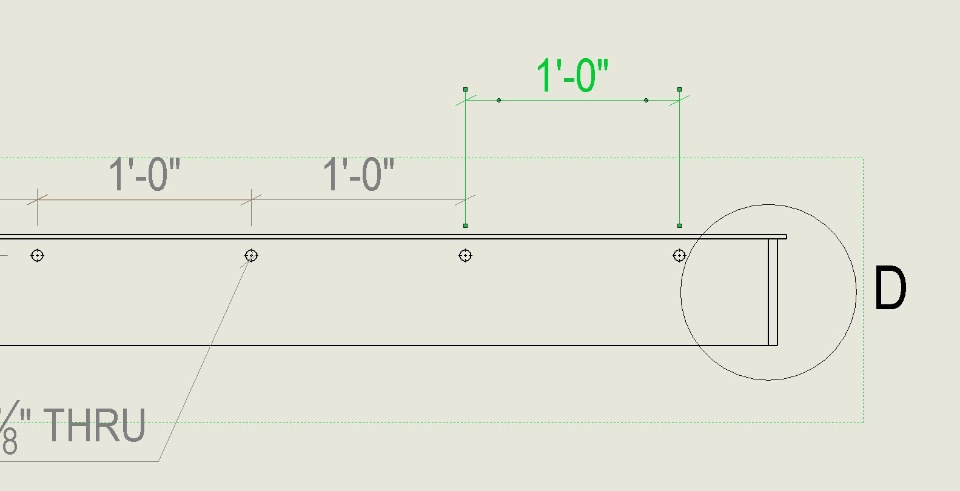

See photos attached.  The green 1'-0" dim has the line extended and when I click the green ball on the extended portion it sets the dim line internal of the extension lines....

SolidworksDrawings And Detailing
Answers 4
SM
SM 2011-12-13 Best Answer

Craig,

I don't use the hatch marks, but it looks like a dimension when the text is too great to fit between kicks the

arrows to the outside.

GS
GS 2011-12-13

I'm pretty sure Scott is right.  I believe this will fix it.  Yours is probably set to the box on the right.

comment imagecomment image
SF
SF 2011-12-13

Scott,

Yes, that is exactly when it happens.

SF
SF 2011-12-13

Yes! Thank you!

It was just one of those things that annoyed me and I looked for that setting a while back and just must have glanced over it... appreciate the quick answer!
