Dimension Labels Visible in Drawings or Parts

I don't know if I am recalling my old Pro-E days, but it seems to me that I used to be able to toggle

between dimension values and dimension labels.

For example:  In a part a dimension will show up like D1@Sketch1 with a value of 1.25 and if this dimension represents

a certain feature on a part you rename it to "Outside Diameter@Sketch1".  So is there a way to globally show the labels

for dimensions in drawings?

SolidworksDrawings And Detailing
Answers 10
SF
SF 2010-03-25 Best Answer

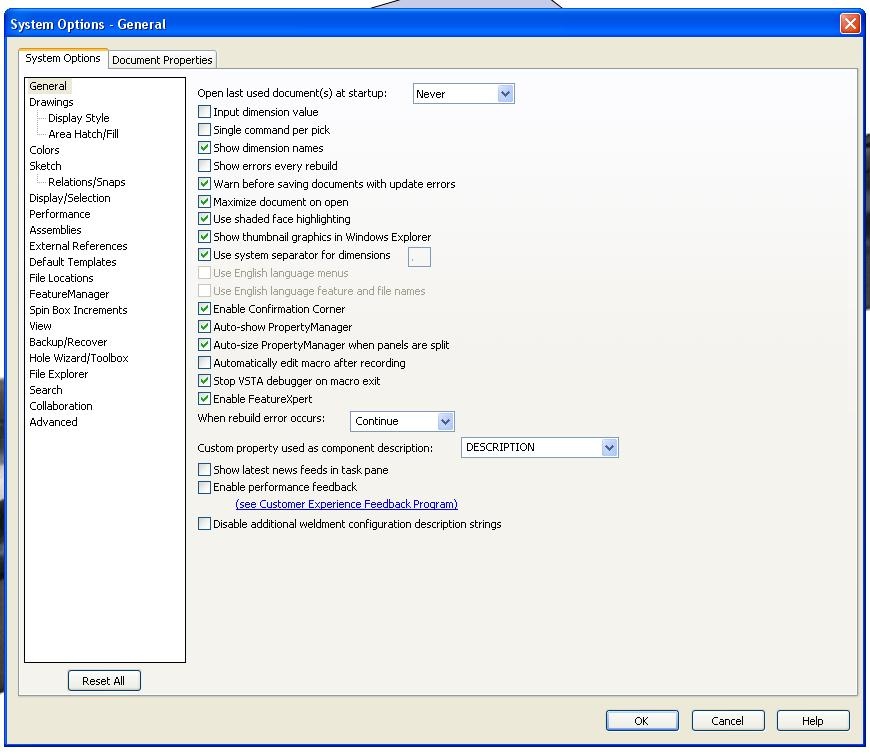

System Options > General > check Show Dimension names to enable, unch to disable.

HTH

SM
SM 2010-03-25
Not finding such a selection in System Options under General.
SF
SF 2010-03-25
view ->Dimension Names, or click on the dimension and in the property manager in the primary value box.
SF
SF 2010-03-25

"System Options > General > check Show Dimension names "

This is how it is in 2007, maybe it was changed for newer versions?

SF
SF 2010-03-25

I'm running SW 2009 SP 5.0 32 Bit. I can't speak for SW2010

SM
SM 2010-04-29

Thanks

RT
RT 2010-04-29

In 2010 this now a document property (Finally)

Rob

SF
SF 2010-04-29

I don't seem to remember this not be a doc property.  I remember back on 2001+ and 2003 that I used to get drawings with this setting on, but my own system wasn't set up that way.

SM
SM 2010-04-30

I don't remember this being a document property either.

After being reminded it was under the view menu I remember it this way as a

toggle on/off like planes and axis.

So, if it is under document properties, then where is it?

This method in document properties seems less convienent.

RT
RT 2010-04-30

It was a "System Option", when I wrote an SR, I was told it is now (2010) a document property.  I haven't had the need yet to turn it on so I didn't know it wasn't on the "Document Properties" tab.

rob
