Hi,
I would like to create an Helical pattern in SolidWorks. Unfotunately SolidWorks doesn't have an helical pattern feature, therefore I need to use a curve driven pattern using an helix as a curve, but I'm having some issues in finding correct pitch.

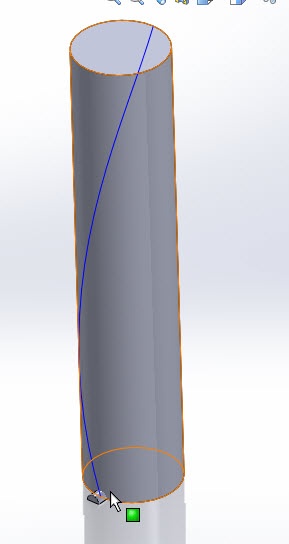

Here's my model:
I want to pattern that half cyclinder by rotating it 30° and displacing it vertically 100 mm (it's the input I would put in an helical pattern).
This is the desired position:

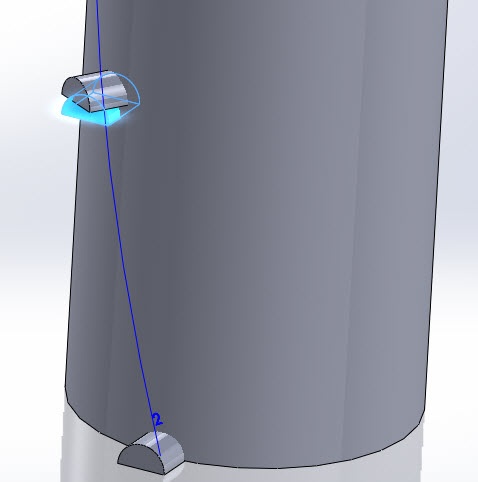

And this is an attempt I made by putting some pitch parameters in the helix and the curve driven pattern (highlighted body is the result of the pattern):
I can get the position by trial and error, but what I'm asking if there's a formula or an equation you can suggest to get the exact position that i want.
Thanks,
Alex
