Cosmetic Threads not showing in Drawing

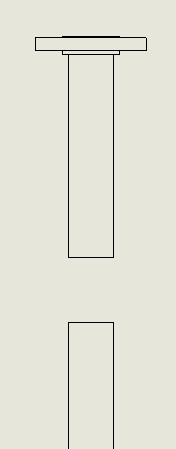

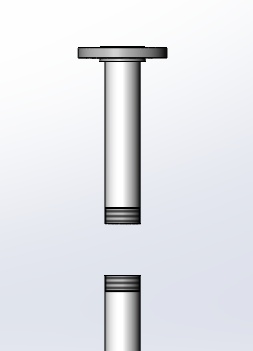

I've added cosmetic threads into individual pipe parts which are visible in the piping assembly model file, however when I go to make the drawing the cosmetic thread are not visible. I feel like it's something simple I'm missing however I can't seem to get the cosmetic thread with call out to show up in the assembly drawing.

SolidworksDrawings And Detailing
Answers 7
MM
MM 2017-10-04 Best Answer

insert, model items. select cosmetic threads under annotations

comment imagecomment image
PK
PK 2017-10-04

Perfect, I knew it was going to be something simple, thank you.

KK
KK 2017-12-14

What do you do when that option is not there?

comment imagecomment image
PK
PK 2017-12-14

Have you tried the select all option? ]

comment imagecomment image
KK
KK 2017-12-14

Yes, but thanks for the suggestion.

I think I learned that that option is only on assembly drawings, and this is a part drawing... but I can't get these dumb things to show up for nothing. I've tried all the options everyone's suggested on countless other posts and forums all the way back to 2013.

Threads are a big part of mechanical engineering... you'd think they'd have gotten this fixed by now.

PK
PK 2017-12-14

Have you contacted your VAR?

SD
SD 2017-12-14

You need to make sure your diameter setting in the Cosmetic Thread is to the minor diameter.  Then make sure you are showing them in the drawing properties.

This should show what you need.

Hope this helps.

Steve

comment imagecomment imagecomment imagecomment imagecomment imagecomment image
