Hello,

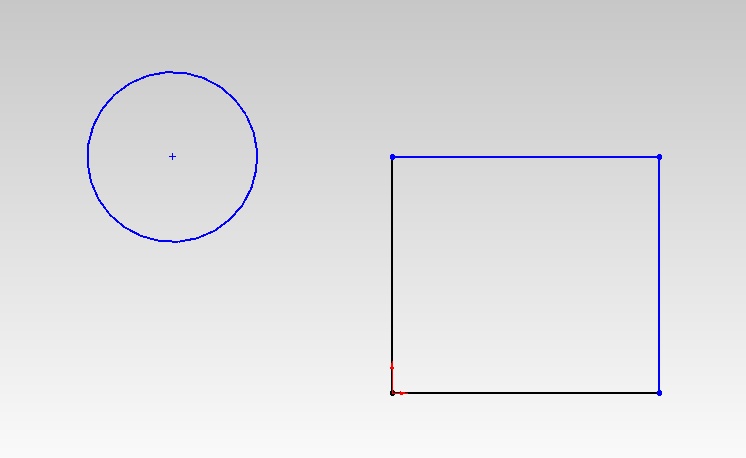

I have two machines in a teaching lab that are exhibiting unique line styling when in Edit Sketch mode. Both machines produce a solid line when the "For Construction" box is ticked, and the standard lines appear a bit thicker than most default installs. Here's a photo - both the circle and the rectangle are marked for construction.
I've looked at the Line Format menu, but I'm not sure how that would apply. I have moved a part template from a machine that displays properly to one of the suspect machines and find that the problem persists, even when I use the transfered part template. To me, that would rule out a "Document Options" issue.
I've also scoured the System and Document options and find nothing pertaining to line styling in there (except for the options for leader lines on drawings).
Anyone run across this before?
Message was edited by: Powell Barber on 15 Mar, 11:28 am EDT
SolidworksParts And Features
Hi,
I think, you can find this problem in the option menu.
refer to OP - paragraph 3. I'm afraid you'll have to show me.
It could be an issue of the line format, but there is an easy way to check that.
Click on the line, then convert it to not for construction, then back to for construction. Is it now a dotted centerline?
If that doesn't work, check the file C:\...\solidworks\lang\english\Swlines.lin
This file controls the line shapes, make sure it is the same on both the working systems and the non-working systems.
Thanks for the suggestion, Charles.
I replaced the Swlines.lin file on one of the troublesome machines with the same file from a working machine with no success.
Also, toggleing the "For construction" tick box multiple times has no effect.
The only distinction between a construction line and a "regular" line on these machines seems to be a slight variation in weight. The are still both solid lines.
One thing you might want to try would be resetting of the registry or may be a repair installation run of SolidWorks if that helps.
Close SolidWorks and got to Start > Run > type regedit > go to HKEY_CURRENT_USER > Software > SolidWorks > SolidWorks 20XX.
Rename SolidWorks 20XX to SolidWorks 20XX-OLD (this is just to keep the backup of existing actually registry file), close the registry and restart SolidWorks. This will essentially reset SolidWorks to its as installed settings, so you will have to set all the options again. If this works, return to the registry and delete the SolidWorks 20XX-OLD key.
Change XX with your version of SW.
Please take a back up before you do this of your settings using copy setting wizard.
Thanks Deepak,
Your suggestions are something that I have considered trying and I appreciate the specific advice you give.
I'm somewhat disinclined to take such action yet, however, because this problem has occured from day one on a default install. It's not as if this machine has had multiple users playing around with settings, etc. Our IT division prepped these machines for this course from scratch, using the same install media I did for my machine. And on day one of the class this problem was observed.
One thing I need to do is check an additiaional machine that he just prepped to see if it, too, is exhibiting this problem. Perhaps I can repair that install (since it has not been used) and see what happens.
Curioser and Curioser...
Is it perhaps your graphics card? Try using the "Use software OpenGL" option in System Option->Performance. Remember, to toggle this option you cannot have any solidworks files open. If you see the dashed construction lines with software OpenGL active then it is a problem with your graphics card. You will then have to investigate settings and drivers for your card.
Thanks Peter - you nailed it.
These were surplus machines from the business office - not obtimal, but they're doing pretty well for now, and the price was right!
Really appreciate your help.
