Chain link Mating

Hi all.

Once again i am hoping that somebody on this can point me i the right direction.

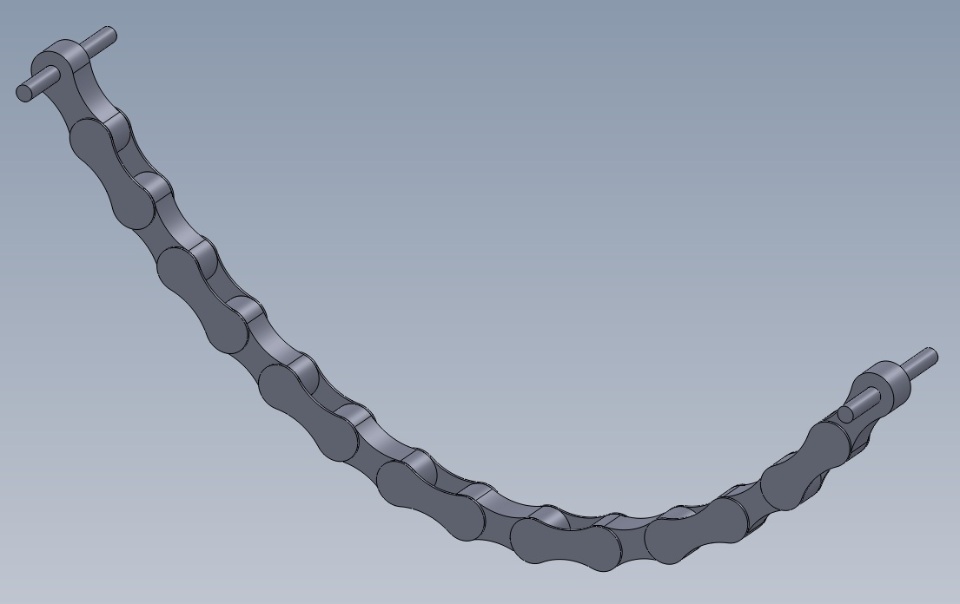

I have modelled a simple chain (i.e bike chain) i assembled this by creating 3 different parts. Each side of the links ie and the chain pin. I have then assembled 2 'mini assemblies:' One larger link, one smaller link, each with a hinge pin.

Then in the master assembly i have assembled the chain in the position that i require it by intelinking each link. I done so by using a concentric mate on the hinge pin and a coincident mate on the edges. I am relatively happy with how the chain moves. However i am having 2 slight difficulties:

1. Although the chain is long enough, it will not allow me to mate the termination link to a fixing point point. It seems that there may be too many mates having to co operate at once to achieve this. Is there a simpler way to pin the chain to two termination points?

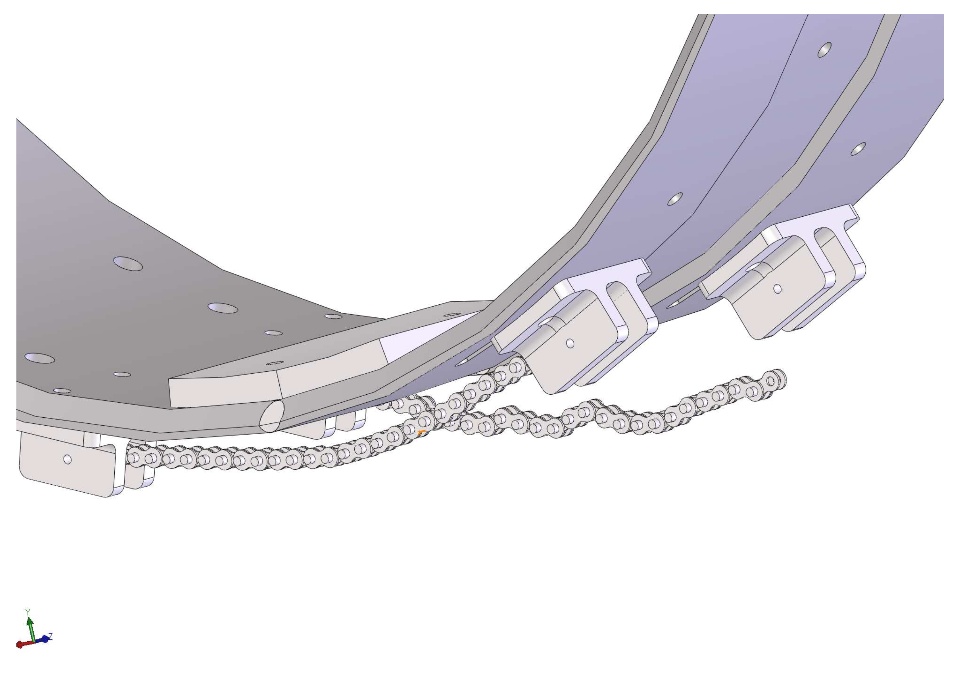

2. Is there a mehod for controlling the over shape that the chain takes when it is not being used. For instance i would like to to follow the curvature of the ring ( as displayed in my image) I have achieved this with one of the chains as you can see, but this was purely by dragging it close to how i would like it.  A very crude method i am sure will all agree!

I was thinkin of sketching a circle in the curvature i would like the chain to follow then mate a point on each link to the circle, but this did not seem to work?? Im probably waaaaaay of track!

Thankyou in advance to anyone who may be able to help!

SolidworksAssemblies
