Cavity Icon

Anyone know why the Cavity Icon is not showing up under the "Insert > Feature > Tab? I am in an assembly but in Edit Part mode and I am trying to create a volume using the Cavity command. I have my volume part created but when I try to use the Cavity command, it is missing from the drop down. I've done this over a hundred times but I'm not sure what is wrong now.

SolidworksParts And Features
Answers 9
DG
DG 2012-03-24 Best Answer

Click on the customize menu and check if "cavity option" has been unchecked or checked. Also drop the icon on a toolbar and then check.

MP
MP 2012-03-24

Deepak,

I was able to drop the icon from the "Mold Tools" Category in the Command tab in the Customize from to my toolbar and create the volume check part but its still not showing up under the "Insert > Feature" tab.

Under the Customize Menu I do not see an option for Cavity listed.

SM
SM 2012-03-24

Mukesh,

Is it possible you need to restart your machine?  Sounds like you are doing the right steps.

If it was there at one point and now is missing maybe you need to drag it in from the customize>commands dialog window.

Any chance you have this command showing up in a different location that you have customized and placed.

If it is not here like you described and this is out of the box sounds like something isn't right.

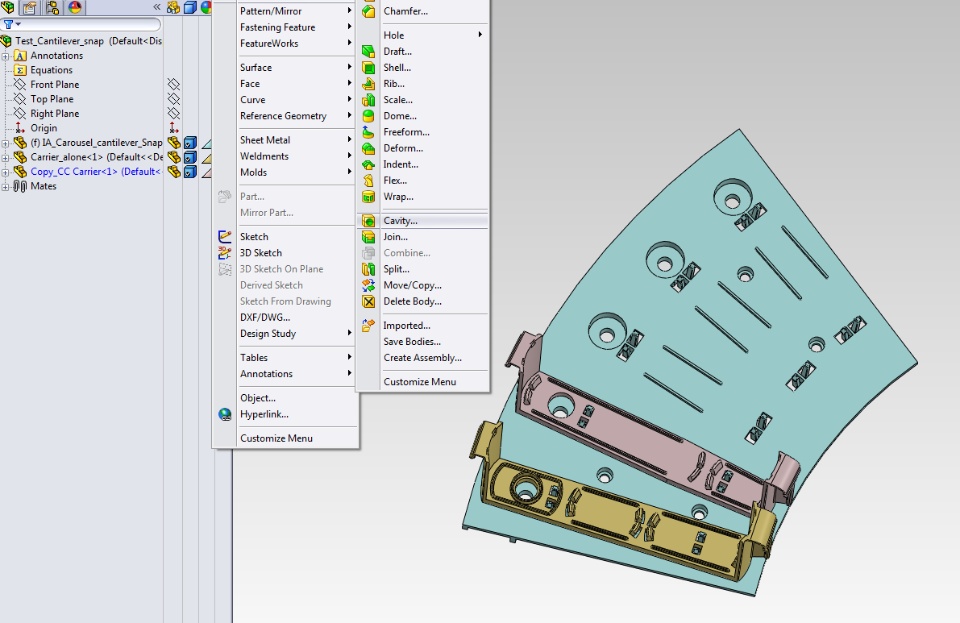

comment imagecomment image
MP
MP 2012-03-24

Scott,

You are correct. it is listed now under the Mold drop down menu but I could have sworn that this icon used to be under the Insert > Feature command.

By the way how are you able to print a drop down menu like you shown? As soon as I release the cursor the drop down menu disappears and I'm not able to print like you shown.

SM
SM 2012-03-24

Mukesh,

Well at least it is there now.

I use a program called snag-it.  When it is loaded all I have to do is hold down the Ctrl-Shft-P keys while the

tree is open it berings up a cross hair for me to select the window I want to crop.

MP
MP 2012-03-25

Scott,

Thats what I am using also (Snat-it), but I guess I need to set up the output. currently I am out putting my screen capture to clipboard. Where is you output going to?

SM
SM 2012-03-25

Mukesh,

I am using version 10.0 of Snag-it.

What is cool about the newer version is the images stay in the Snag-it clipboard.  I can close the program,

close down my PC and it keeps images in the Snag-it clipboard even if I don't save them.

DG
DG 2012-03-25

I still it it under Insert > Features (part edit mode in assembly).

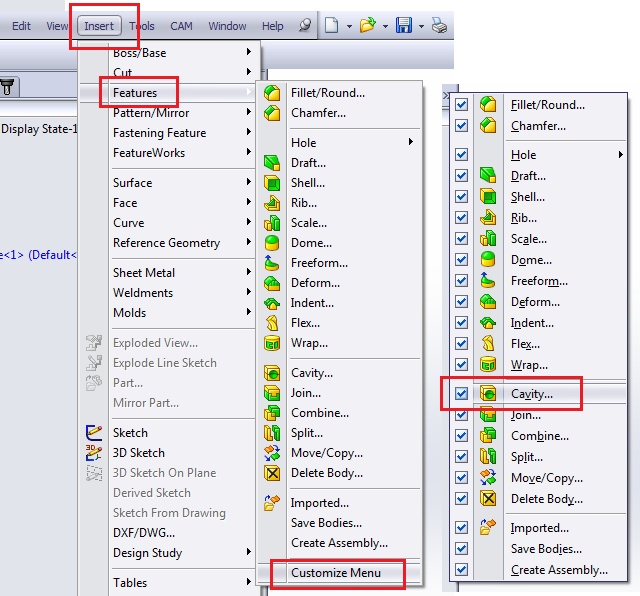

And for checking as I said eralier, click on customize menu in the drop down and make sure Cavity option is selected.

BTW you can hit print screen on the keyboard and then paste in paint.

MP
MP 2012-03-25

Thanks Deepak

I must be going mad - Yesterday the Icon was not there under Insert > Features (I was in Part Edit mode in assembly). Today, I read your last post and decided to check again and guess what? Icon shows up under Insert > Features now.

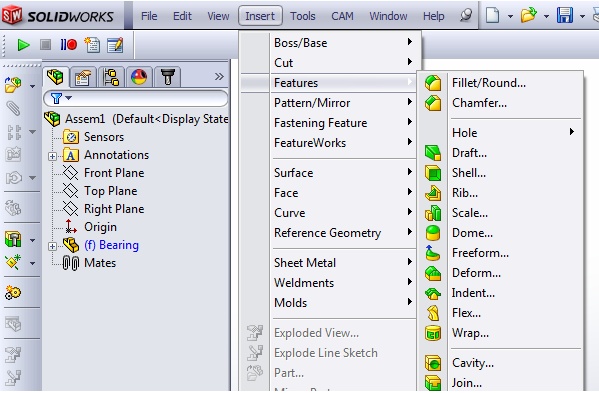

PS: Thanks for the print screen tip. I've been wanting to know how to do this for years now and couldn't figure it out. I tried your way and it worked. See attachment.
