Cannot section a Part @ Part level

which results in not being able to section the aseembly as well.

The piece that are failing are both cylindrical and the origin is the center axis. I am using either front or right planes to try to section.

I am trying to figure out what features are causing the problems in the part files.

What has been your experiences with this problem?

I want to try to make sure it doesn't happen in the future.

Thanks in advance...

SolidworksParts And Features
Answers 8
KL
KL 2010-08-12 Best Answer

This has been an ongoing problem. I don't believe a definitive resolution has been found.

https://forum.solidworks.com/message/158020#158020

Sometimes the problem is solved by a reboot, but most times it's an unknown condition of a part or sub-assy. Perhaps the section is creating a zero-thickness? Or just a math-calculation bug?

The usual workaround is to offset the section plane by a tiny amount. Often .001" (or less) is enough.

SF
SF 2010-08-12

Kelvin,

I've tried the small offset without sucess. I cannot section anywhere in the Front or Right ways.

Top I can section them all day long.

I don't see any errors where zero thickness should be a problem, but it may be something tiny.

Thank you for your input.

KL
KL 2010-08-12

Is it only this one part giving the problem?

Can you post the part for review and testing on other machines?

DR
DR 2010-08-12

Can you do an extruded cut instead of a section?

SF
SF 2010-08-12

No, it is two parts in a 30 + part assembly.


That is part of the frustration.

One part had a cavity refernce the other part, but I broke all associations between them to see if that mifght cause thinges.

I am checking into the cavity area now (between meetings...)

SF
SF 2010-08-12

An extrude cut @ the Assy level fails on those 2 pieces as well.

DG
DG 2010-08-12

It must be a zero geometry thing.

SM
SM 2010-08-12

Alan,

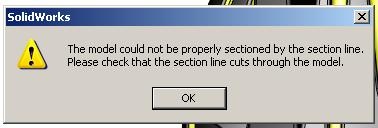

I agree with Kelvin.  I have gotten this message numerous times when trying to create

a section, and usually what I am able to do is what Kelvin suggested and that is to

move the location of the cutting plane ever so slightly.  I do this until I get the section (or close to it)

that I am looking for.  What I have been told in my circles is this happens because there is some bit

of geometry that is not able to complete correctly (i.e. a spring being cut at a location it is not able to correctly

show its completed coil).  Kind of what Deepak is eluding to.

Make sense?
