Cannot dimension to a drawn circle in my drawing.

I am baffled again.

in one drawing, I can dimension from an edge to a quadrant of a circle I created within the drawing. (to show depth)

in a very similar drawing, I can't select the created circle. but why only this drawing. I can't make sense of it.

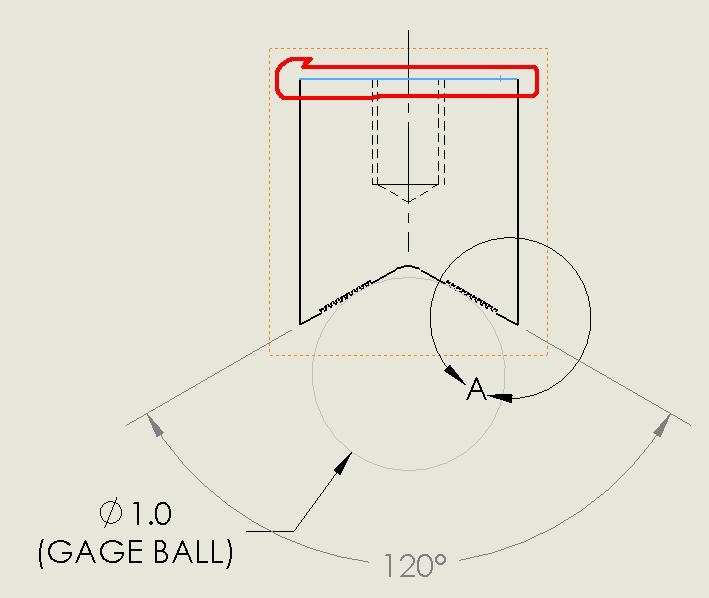

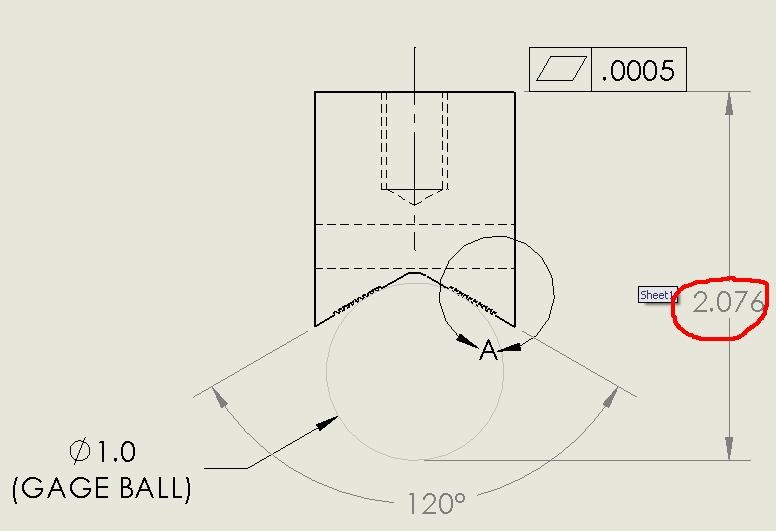

see attached. I've highlight the dimension in the perfect.jpg,. the highlighting in the 2nd picture indicates where i want to dimension from to the quadrant of the inactive circle.

I have solved this solution before, by actually creating a gage ball and mating it with the part in a assembly drawing, then I can select the circle.

but today I felt lazy, and just tried to see if a drawn circle would work. and it did, i was like WhaT THE?

so i tried on another drawing, and like before, it would not pick up the quadrant. I was holding shift while selecting the circle.

what am I missing?

Thanks for your time & reading.

Take care,

Shaun

SolidworksDrawings And Detailing
Answers 3
SF
SF 2009-11-13 Best Answer
This might be obvious but it happened to me... Make sure you have drawn the circle in that view.  I accidentally had a right side view selected while I was drawing a line on another view.  When I went to dimension to this line on the front view it would not let me select it bc it was in the other view.
RJ
RJ 2009-11-13

Is the sketch circle created in that drawing view?

I'd activate the drawing view first (double click the view) then sketch the circle.

SF
SF 2009-11-13

Thanks to both of you.

That solved my issue. must of had a different or no view selected.

Awesome Thanks,

Shaun
